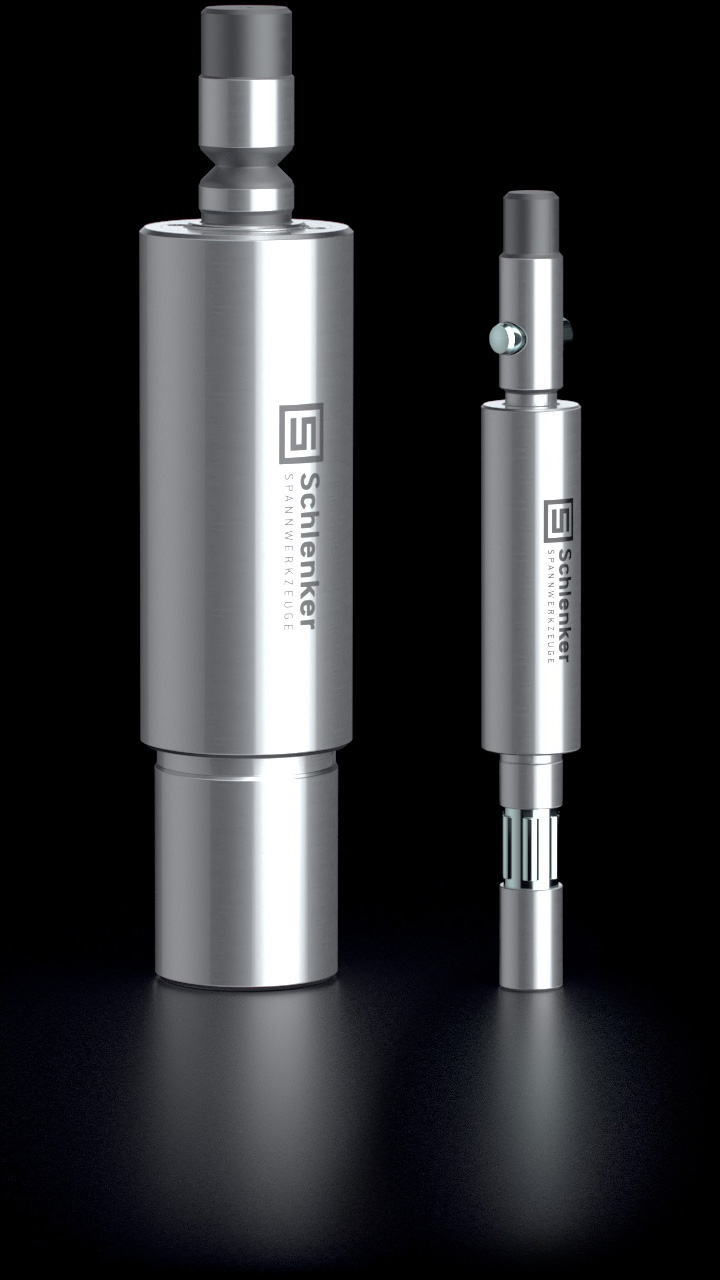

ROTATING INSERTS

Rotating inserts are a component of the feed rod, which are installed in the bar loader. The bar feed collets are mounted and fastened to the rotating inserts. Depending on the manufacturer, the bar feed collets are connected to the rotating inserts by a cross pin, three set screws or an internal thread. Rotating inserts are used by the well-known bar loader manufacturers, such as BECHLER, BREUNING, FMB, GAUTHIER, IEMCA, INDEX/TRAUB, LNS, TORNOS and TRYTON.
The task of the rotating insert is to accommodate the rotation of the raw material. During this process, the material to be machined is clamped in the bar feed collet.

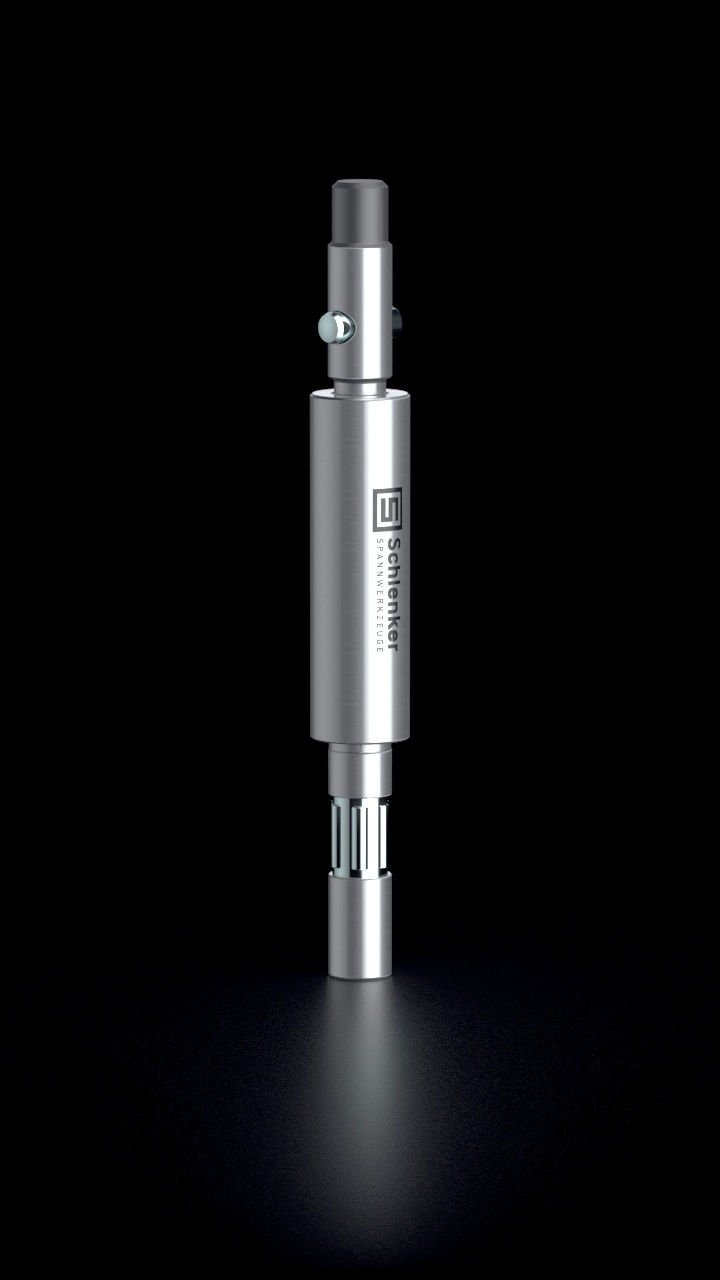

HSL Rotating Inserts L12 HSL - © Schlenker Spannwerkzeuge

HSL ROTATING INSERTS

HSL rotating inserts are pressed into the feed rod and additionally pinned if required. The bar feed collets are fastened to the rotating inserts via a cross pin.

TURBO ROTATING INSERTS

TURBO rotating inserts are shrunk into the feed rod and additionally pinned if required.
The bar feed collets are fastened to the rotating inserts via three set screws.

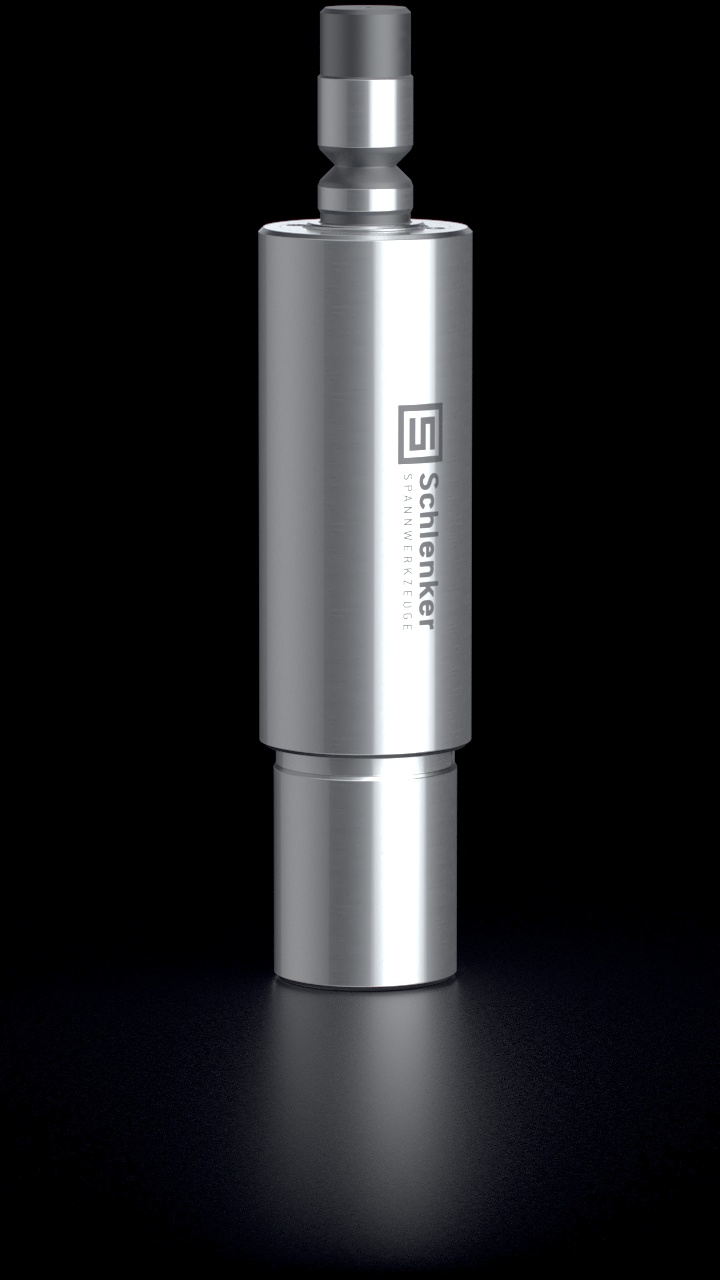

TURBO Rotating Inserts D38 LT 38 D40 LT40 D100 LT100 - © Schlenker Spannwerkzeuge

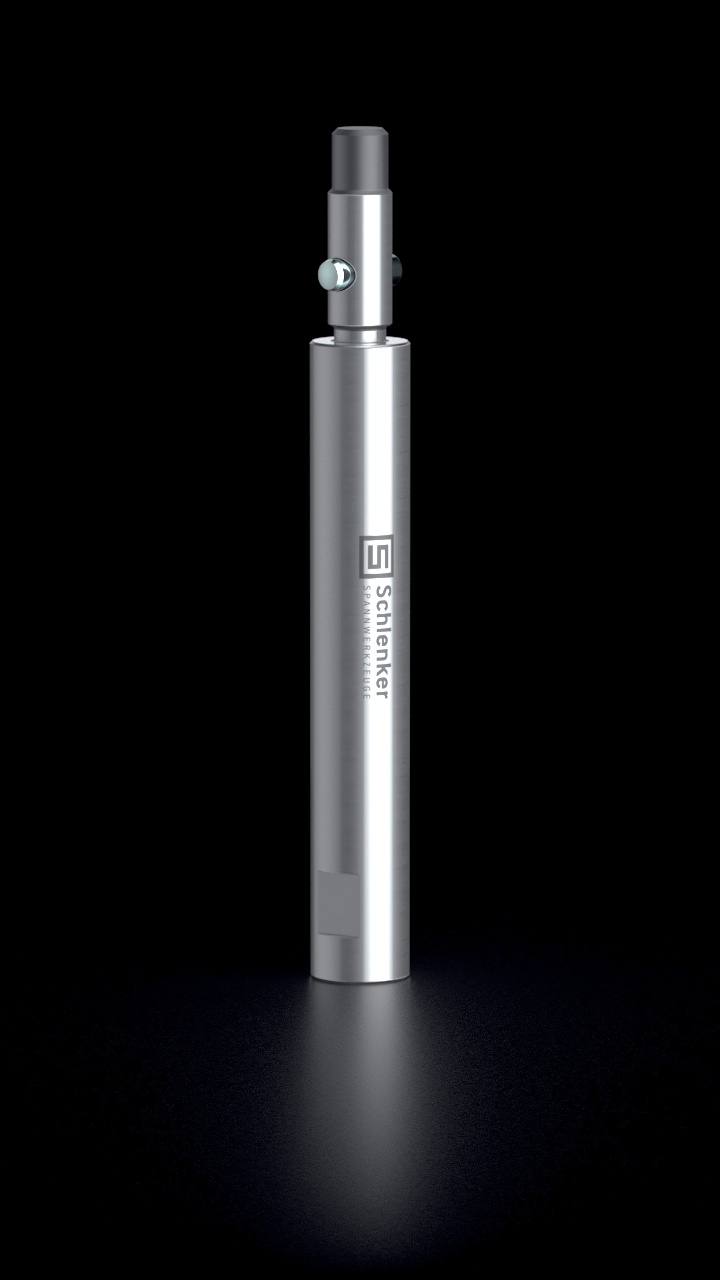

IEMCA SIR Rotating Inserts L12 IEMCA SIR - © Schlenker Spannwerkzeuge

IEMCA ROTATING INSERTS

IEMCA style rotating inserts are screwed onto the feed rod. The bar feed collets are fastened to the rotating inserts via a cross pin.

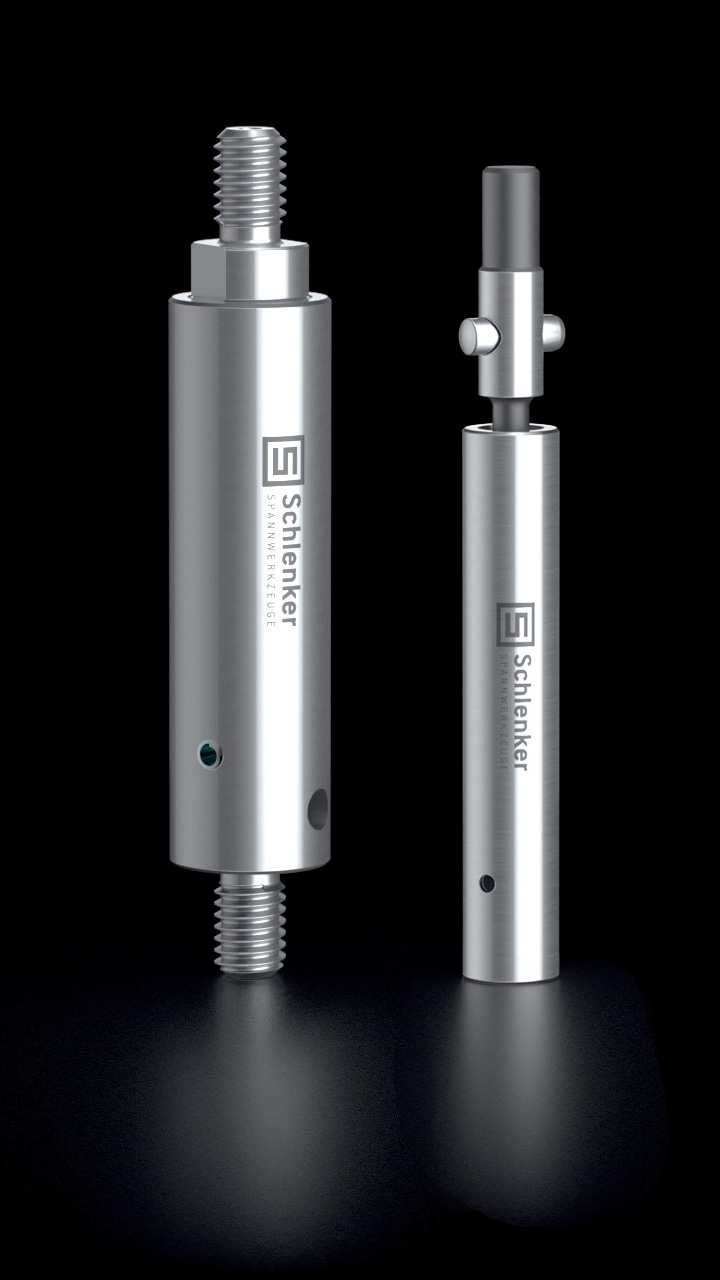

VARIOUS ROTATING INSERTS

Schlenker rotating inserts are designed and manufactured to offer maximum precision and reliability.
By using them, you improve the processing quality and precision of your machines considerably.

TORNOS ERT Rotating Inserts - © Schlenker Spannwerkzeuge
