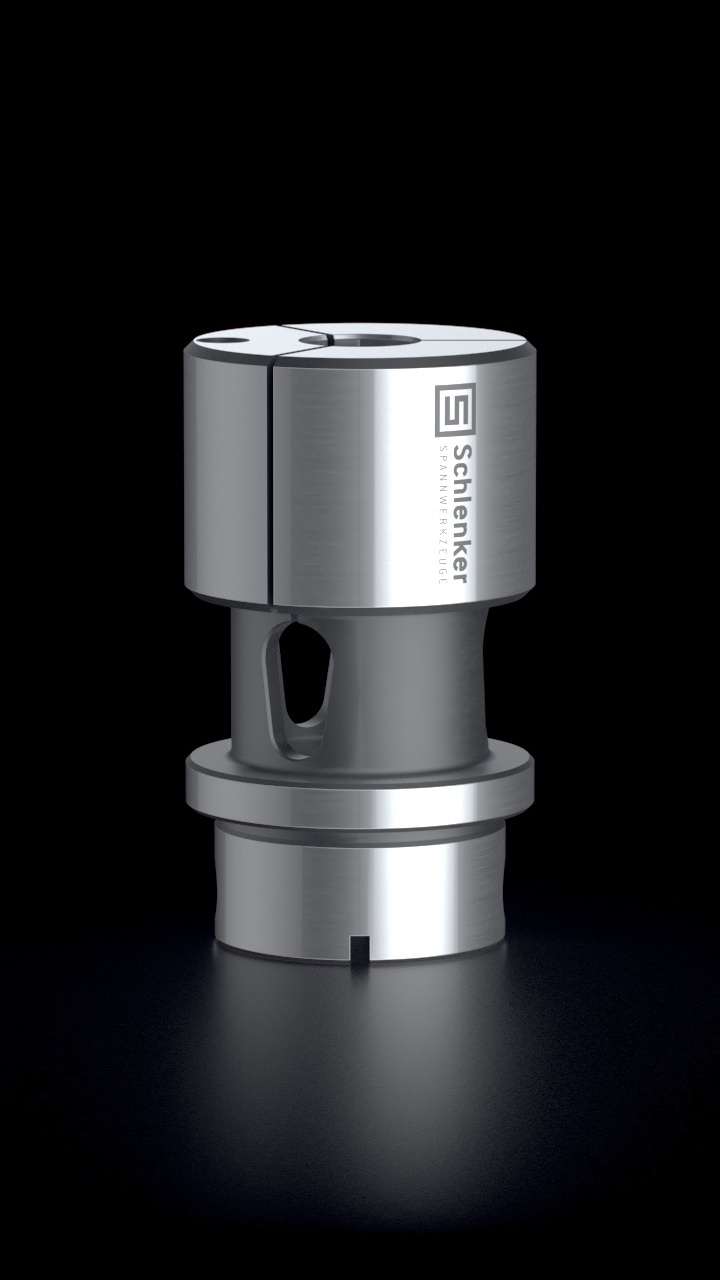

SYNCHRONOUS COLLETS

Schlenker synchronous collets are designed and manufactured to offer maximum precision and reliability.
By using them, you improve the processing quality and precision of your machines considerably.

USE OF SYNCHRONOUS COLLETS

Synchronous collets are available especially for INDEX/TRAUB automatic lathes.

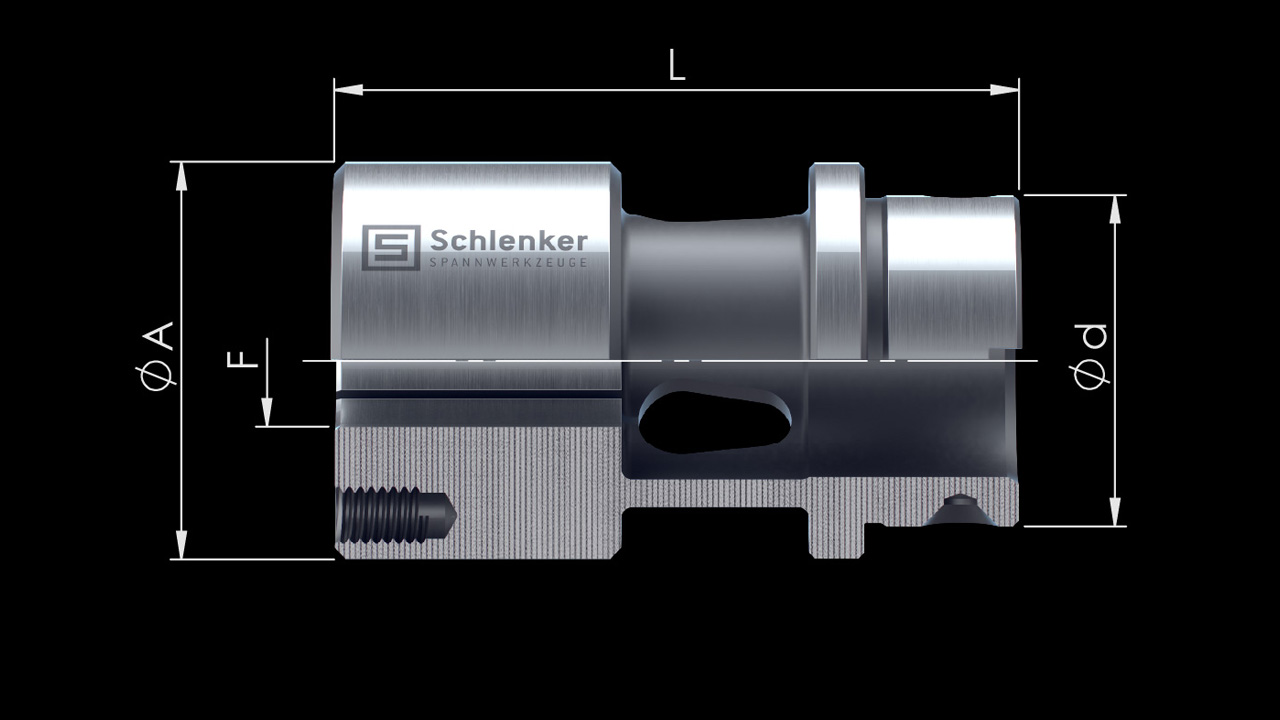

d Shaft-Ø
A Head-Ø
L Total length
F Shape
Synchronous Collets E1444 - © Schlenker Spannwerkzeuge

Article ø d
[mm]		 ø A
[mm]		 L
[mm]		 Type F
min. – max. [mm]
E1444 30 36 62 GS30 4,0 – 30,0
E1462 30 48 62 GS42, GB42, GB65, GSC42 4,0 – 42,0
E1465 30 62 94 GS65, GSC65, GS42S 6,0 – 56,0

SYNCHRONOUS COLLET OPTIONS

We offer a wide range of options for our synchronous collets. Whether you want to simplify your work, improve your production quality or satisfy a customer specific production requirement. Test our synchronous collets now, you will be convinced.

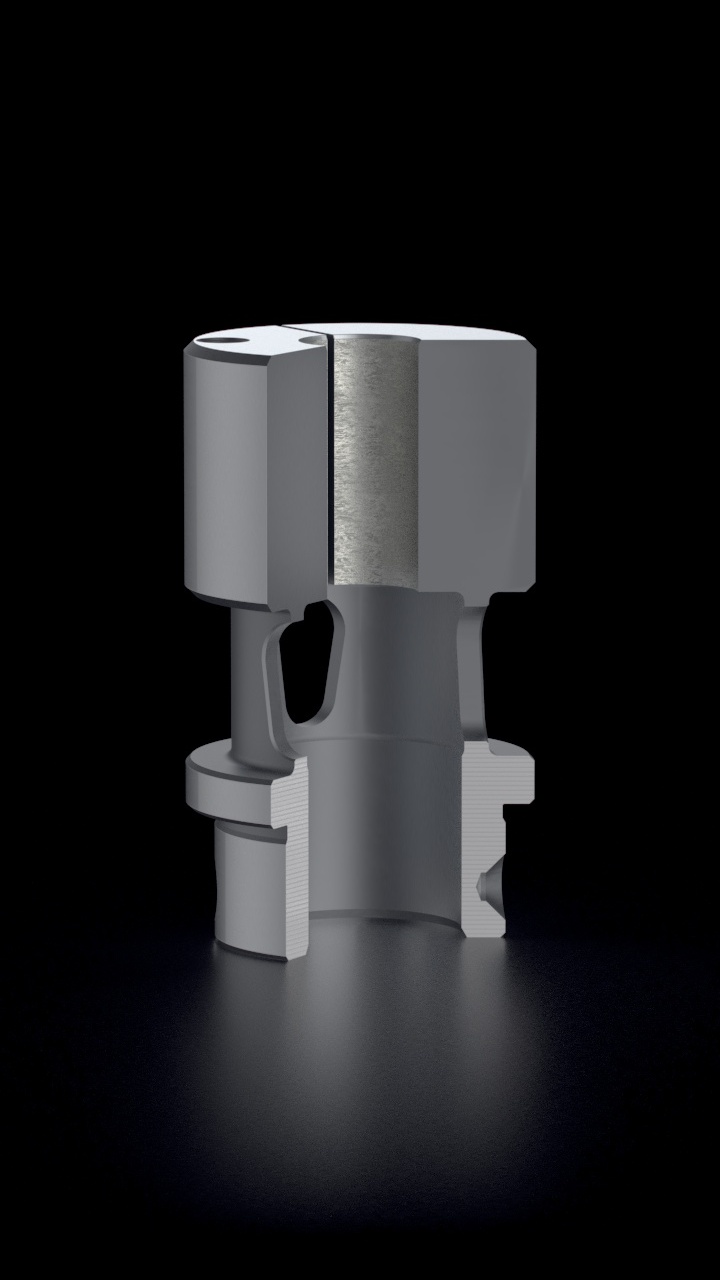

SYNCHRONOUS COLLETS CLAMPING SURFACE DESIGNS

Synchronspannzangen 1444E Glatt - © Schlenker Spannwerkzeuge

SMOOTH

  • Mainly used on the sub spindle
Synchronspannzangen 1444E Glatt - © Schlenker Spannwerkzeuge
Details

Click on details to compare this product with the standard version

CARBIDE COATING

  • Carbide coating possible for all shapes
  • Roughened surface
  • Higher clamping force
  • Repeated / afterward coating possible
Synchronspannzangen E1444 HM-Beschichtung - © Schlenker Spannwerkzeuge

Klicken Sie auf Details, um dieses Produkt genauer anzuschauen

Synchronspannzangen E1444 HM-Beschichtung - © Schlenker Spannwerkzeuge

SYNCHRONOUS COLLETS SHAPES

Synchronspannzangen E1444 Vierkant - © Schlenker Spannwerkzeuge

SQUARE

Synchronspannzangen E1444 Vierkant - © Schlenker Spannwerkzeuge
  • Suitable for clamping square material

Click on details to compare this product with the standard version

HEXAGON

  • Suitable for clamping hexagon material
Synchronspannzangen E1444 Sechskant - © Schlenker Spannwerkzeuge

Click on details to compare this product with the standard version
