CUCCHI BAR FEED COLLETS

Schlenker CUCCHI bar feed collets are designed and manufactured to offer maximum precision and reliability.
By using them, you improve the processing quality and precision of your machines considerably.

USE
OPTIONS

USE OF CUCCHI BAR FEED COLLETS

The Cucchi bar feed collets are suitable for all Cucchi loading magazines. The bar feed collets are mounted and fixed on the rotating inserts through an internal thread.

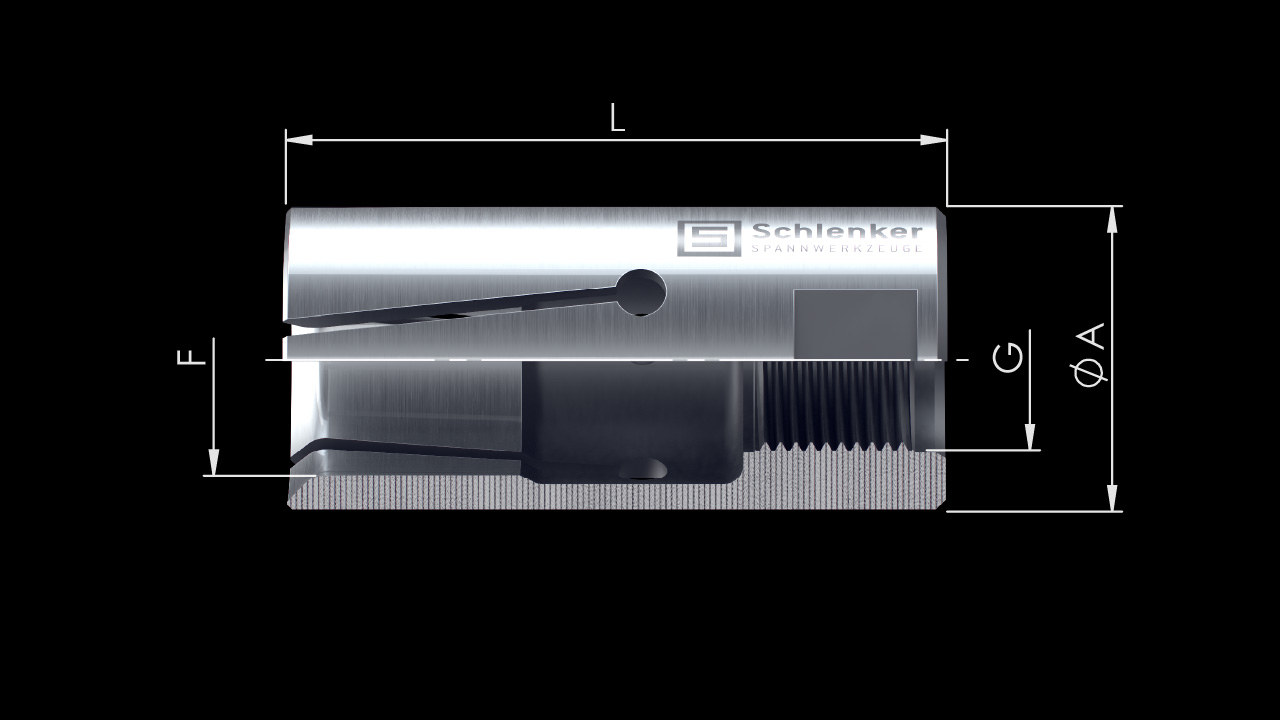

A Outside diameter
L Total length
G Thread
F Shape
Article ø D
[mm]
L
[mm]
G F
min. – max. [mm]
PB28 28 65 M18x1,5L 10,0 – 26,0
PB29 29 65 M18x1,5L 10,0 – 27,0
PB30 30 65 M18x1,5L 10,0 – 28,0
PB35 35 70 M18x1,5L 10,0 – 33,0
PB36 36 70 M18x1,5L 10,0 – 34,0
PB38 38 70 M25x1,5L 10,0 – 36,0
PB41 41 70 M25x1,5L 20,0 – 39,0
PB42 42 70 M25x1,5L 20,0 – 40,0
PB60 60 80 M30x1,5L 20,0 – 51,0

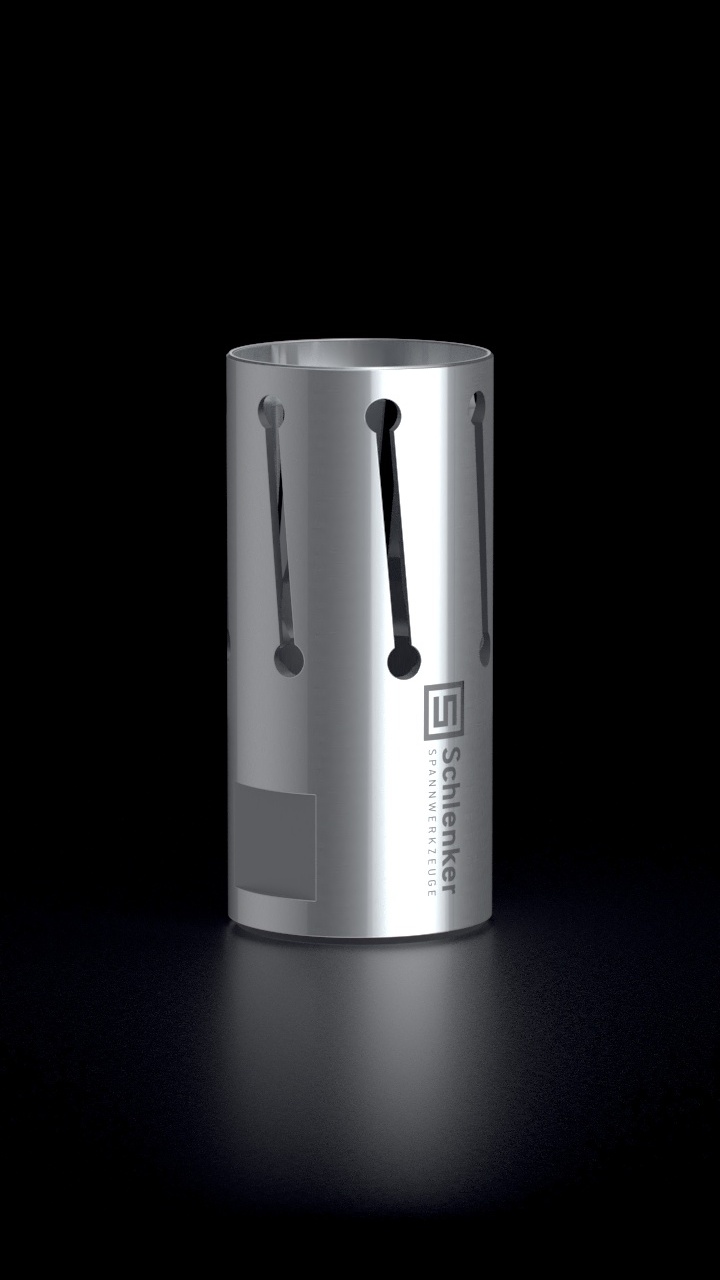

CUCCHI BAR FEED COLLETS OPTIONS

We offer a wide range of options for our CUCCHI bar feed collets. Whether you want to simplify your work, improve your production quality or satisfy a customer specific production requirement. Test our CUCCHI bar feed collets now, you will be convinced.

Overview

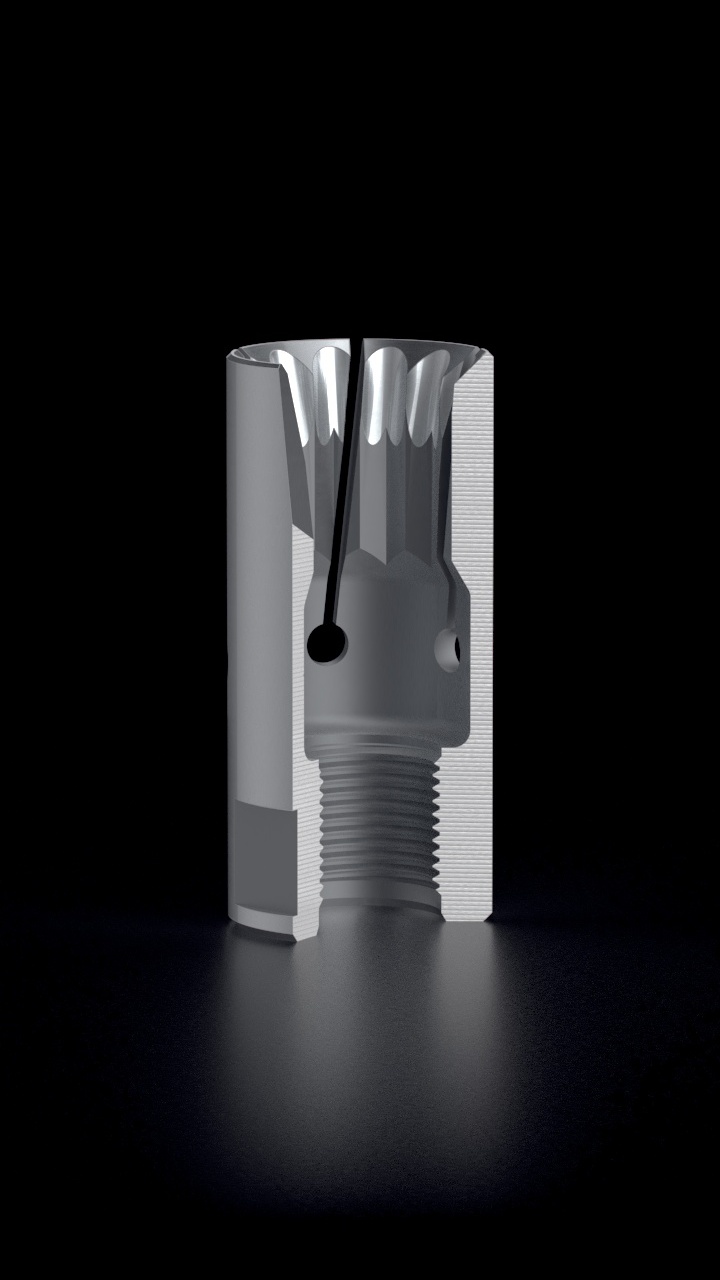

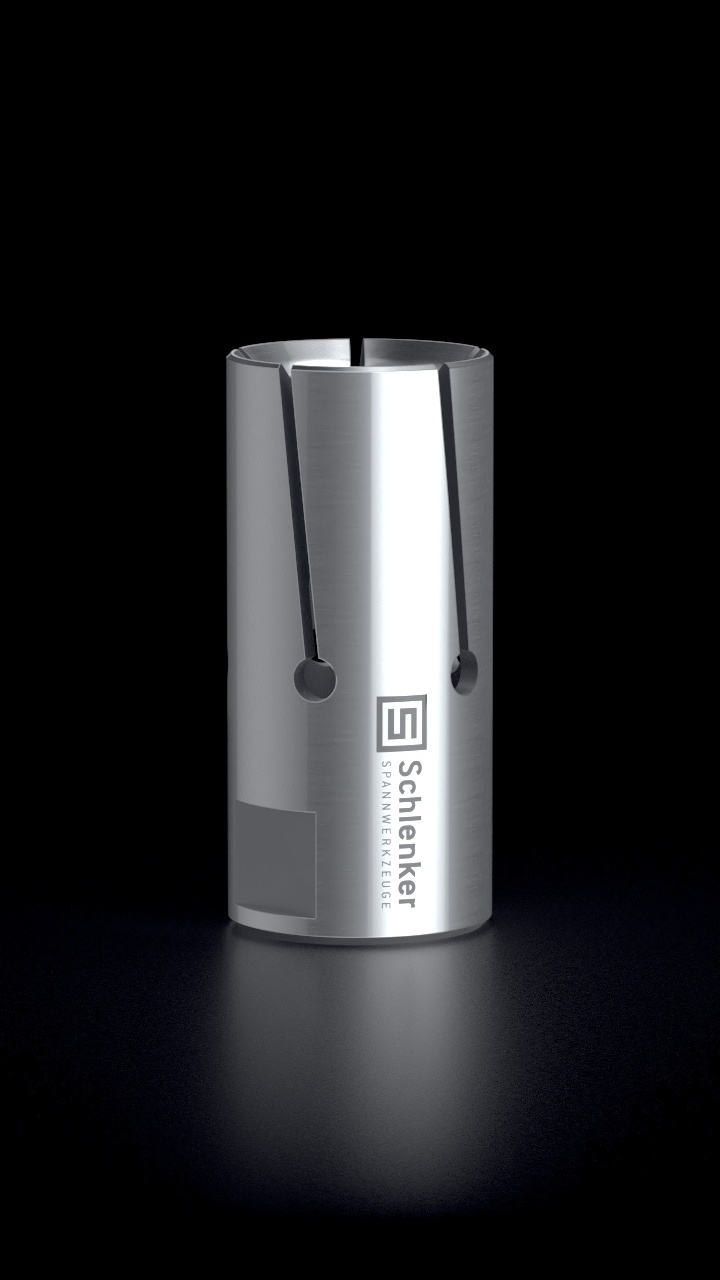

STANDARD ROUND

  • Suitable for round material

Click on the product image to get 360° view

SQUARE

  • Suitable for square material

Click on the product image to get 360° view

HEXAGON

  • Suitable for hexagon material

Click on the product image to get 360° view

CLOSED DESIGN

  • Channel can be used completely

Click on the product image to get 360° view

SPECIAL PROFILES

  • Various profiles can be realized by ram EDM or wire EDM
  • Tension and shape of the bar feed collets can be exactly adapted to the material

Click on the product image to get 360° view

CROWN DESIGN

  • Channel can be used completely
  • Fast & easy threading of the profile material
  • Hexagon and square material that were previously not possible in the channel, can be loaded by the crown bar feed collet
  • The material does not have to be chamfered as for standard bar feed collets, it can be sharp-edged

Click on the product image to get 360° view

TENSION

  • Tension can be increased or reduced according to requirements

Click on the product image to get 360° view
