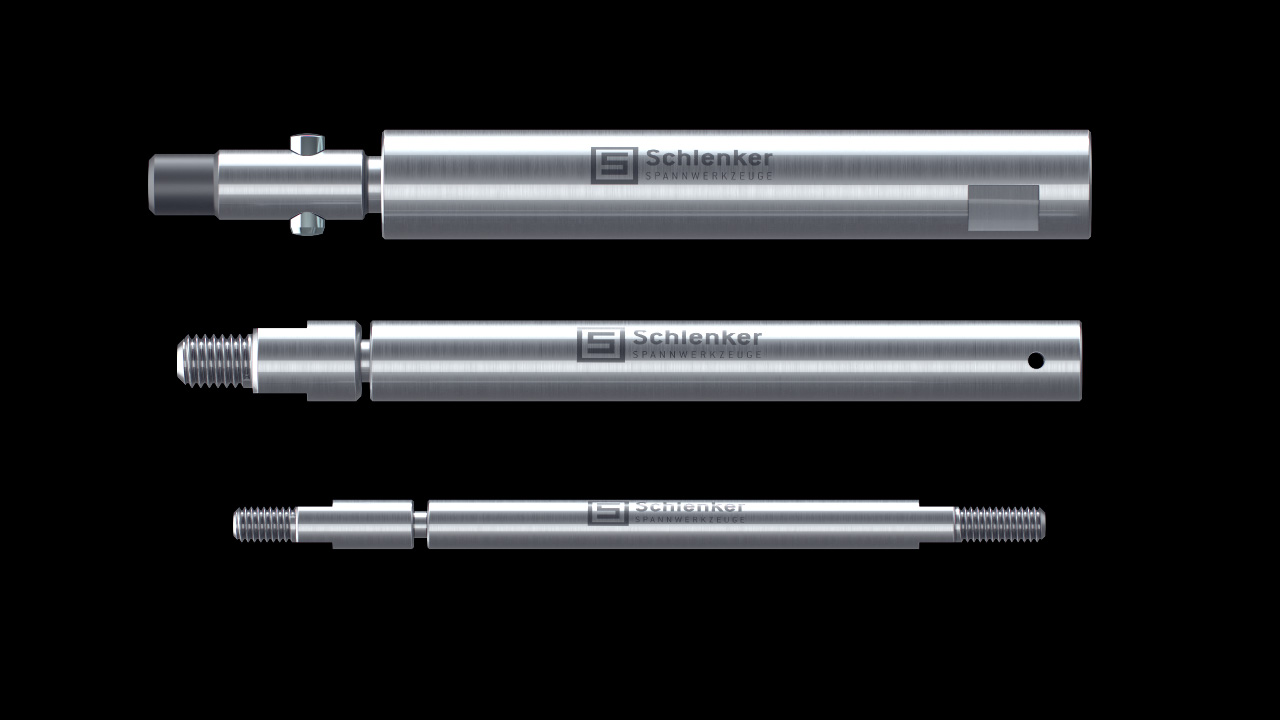

VARIOUS ROTATING INSERTS

Schlenker rotating inserts are designed and manufactured to offer maximum precision and reliability.
By using them, you improve the processing quality and precision of your machines considerably.

USE OF IEMCA D5 ROTATING INSERTS

Our IEMCA D5 rotating inserts are screwed into the feed rod. The bar feed collets are fastened to the rotating inserts via an internal thread.

A Outside diameter
G1 Thread
G2 Thread
L Total length
IEMCA D5 Rotating Inserts L5 IEMCA D5 - © Schlenker Spannwerkzeuge

Article Machine manufacturer Ø A
[mm]		 L
[mm]		 G1 G2
L5 IEMCA
D5		 IEMCA 5,5 90 M4 M4

IEMCA D5 ROTATING INSERT VERSION

Our IEMCA D5 rotating inserts are used in all common loading magazines. They are characterized above all by their precision and durability. Test our IEMCA D5 rotating inserts now, you will be convinced.

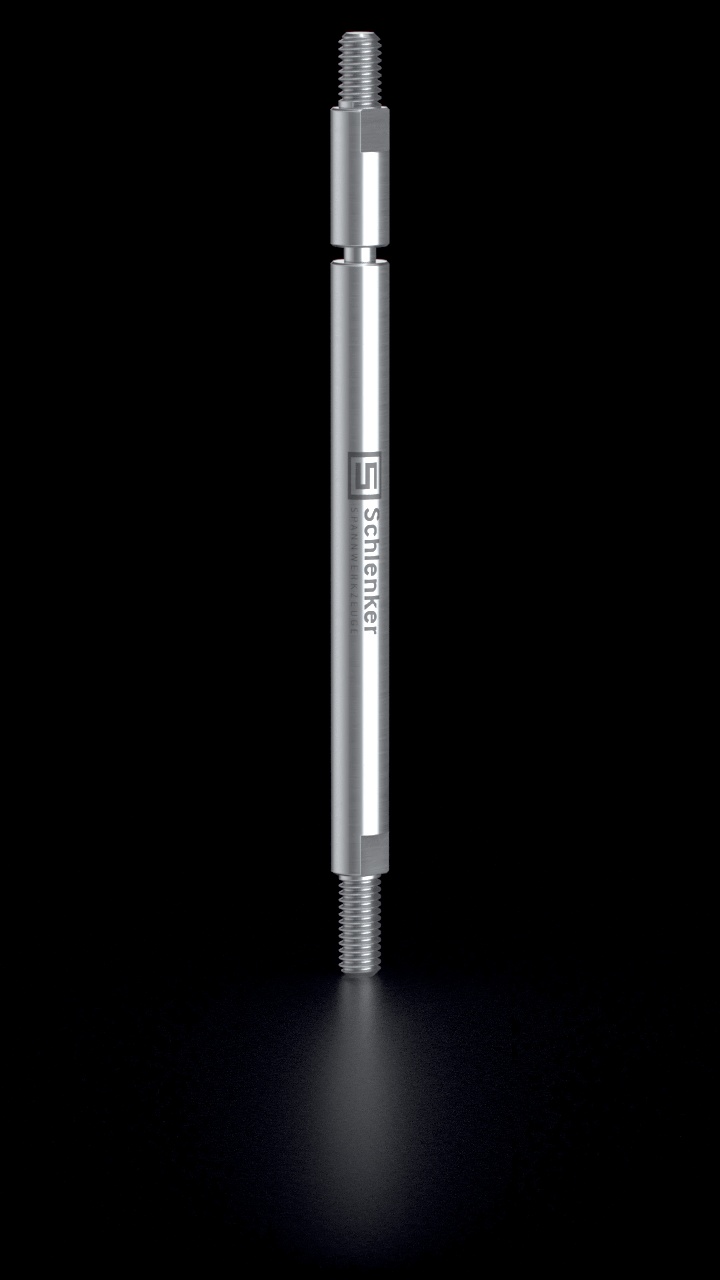

IEMCA D5

  • Available size D5

Click on the product image to get 360° view

USE OF IEMCA D7 ROTATING INSERTS

Our IEMCA D7 rotating inserts are screwed into the feed rod. The bar feed collets are fastened to the rotating inserts via an internal thread.

A Outside diameter
G1 Thread
G2 Thread
L Total length
IEMCA D7 Roating Inserts L7 IEMCA D7 - © Schlenker Spannwerkzeuge

Article Machine manufacturer Ø A
[mm]		  L
[mm]		 G1 G2
L7 IEMCA
D7		 IEMCA 7,5 139 M5 M6x0,75

IEMCA D7 ROTATING INSERT VERSION

Our IEMCA D7 rotating inserts are used in all common loading magazines. They are characterized above all by their precision and durability. Test our IEMCA D7 rotating inserts now, you will be convinced.

IEMCA D7

  • Available size D7

Click on the product image to get 360° view

USE OF TORNOS ERT ROTATING INSERTS

Our TORNOS ERT rotating inserts are screwed into the feed rod. The bar feed collets are fastened to the rotating inserts via an internal thread.

A Outside diameter
G1 Thread
G2 Thread
L Total length
TORNOS ERT Rotating Inserts - © Schlenker Spannwerkzeuge

Article Machine manufacturer Ø A
[mm]		 L
[mm]		 G1 G2
L5.5 ERT
ERT 0550		 TORNOS 5,5 55 M3 M3
L7 ERT
ERT 0700		 TORNOS 7 41,5 M4 M5
L7.5 ERT
ERT 0750		 TORNOS 7,5 42 M4 M5
L8.5 ERT
ERT 0850		 TORNOS 8,5 41,5 M5 M5
L10.5 ERT
ERT 1050		 TORNOS 10,5 45 M6 M6
L13.5 ERT
ERT 1350		 TORNOS 13,5 52 M6 M6

TORNOS ERT ROTATING INSERT VERSION

Our TORNOS ERT rotating inserts are used in all common loading magazines. They are characterized above all by their precision and durability. Test our TORNOS ERT rotating inserts now, you will be convinced.

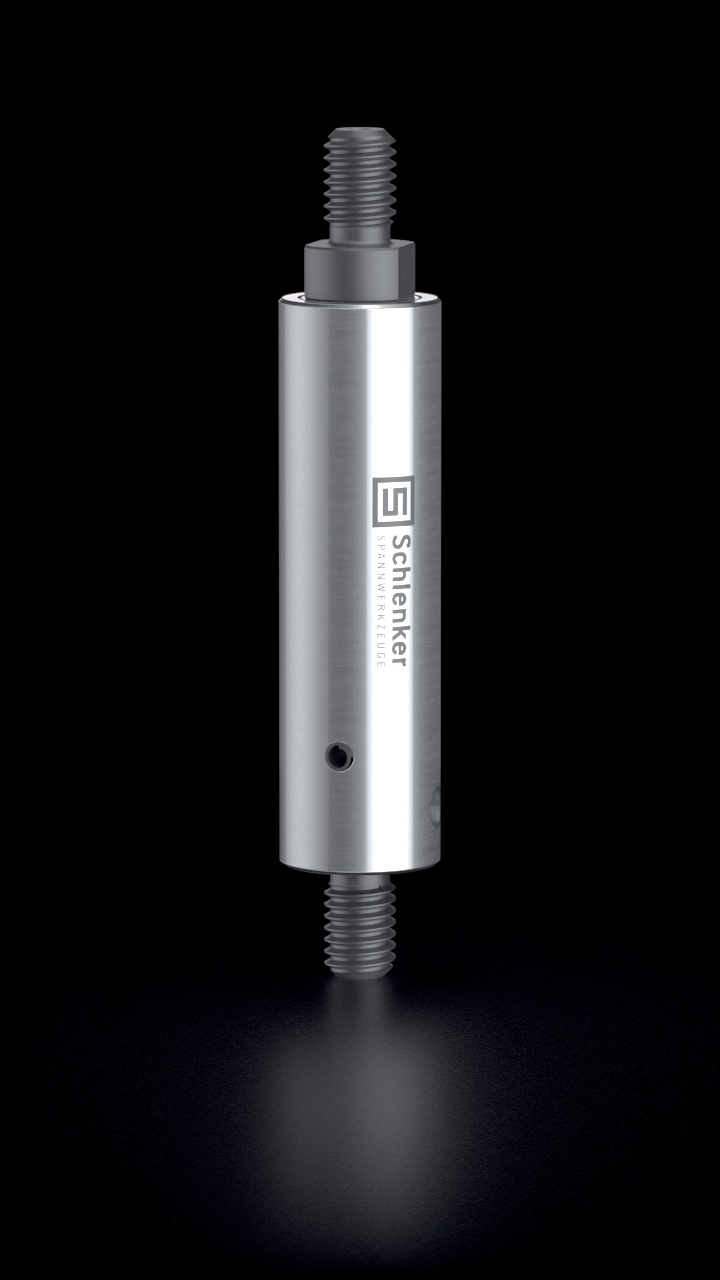

TORNOS ERT

  • Available sizes D5.5 to D13.5

Click on the product image to get 360° view

USE OF FMB-TRAUB ROTATING INSERTS

Our FMB-TRAUB rotating inserts are screwed into the feed rod. The bar feed collets are fastened to the rotating inserts via an internal thread.

A Outside diameter
G Thread
B Feed rod interface
L Total length
FMB-TRAUB Rotating Inserts D5 D7 - © Schlenker Spannwerkzeuge

Article Machine manufacturer Ø A
[mm]		 Ø B
[mm]		 L
[mm]		 G
L5 / D5 FMB, TRAUB 5,5 4,4 82,5 M4
L7 / D7 FMB, TRAUB 7,5 6,4 83,5 M5

FMB-TRAUB ROTATING INSERT VERSION

Our FMB-TRAUB rotating inserts are used in all common loading magazines. They are characterized above all by their precision and durability. Test our FMB-TRAUB rotating inserts now, you will be convinced.

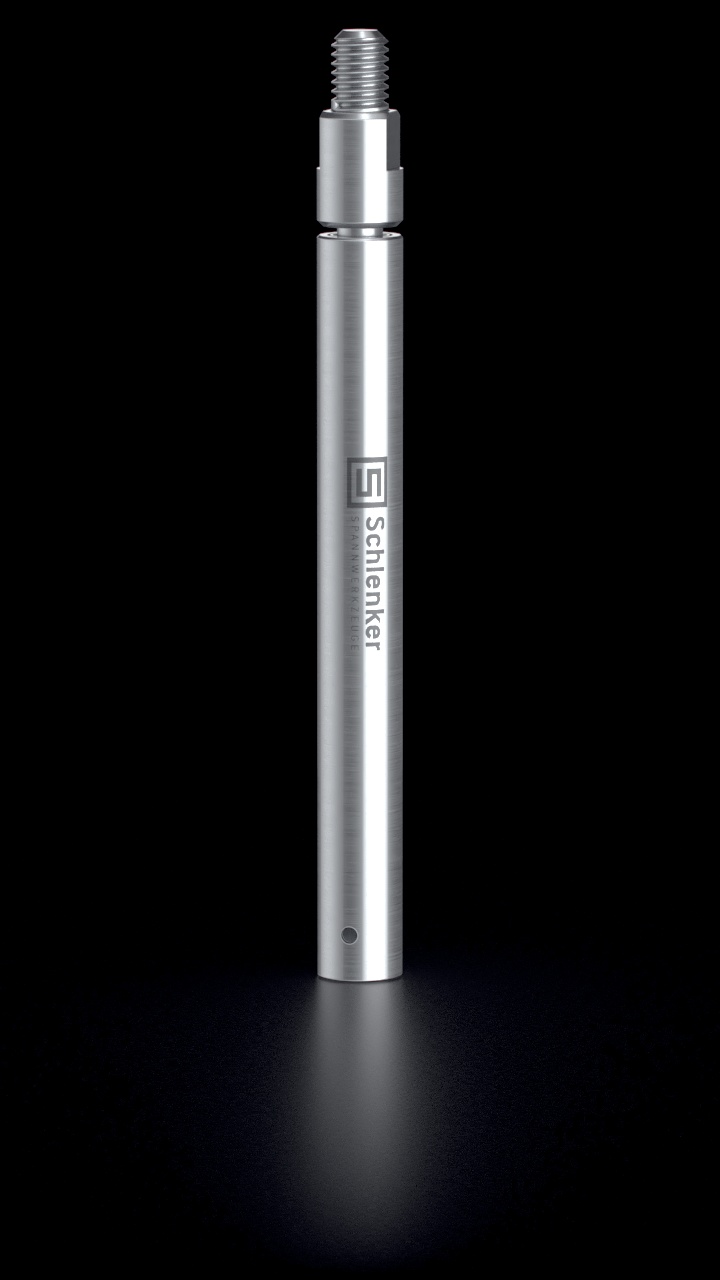

FMB-TRAUB

  • Available sizes D5 to D7

Click on the product image to get 360° view

USE OF TRAUB ROTATING INSERTS

Our TRAUB rotating inserts are screwed into the feed rod. The bar feed collets are fastened to the rotating inserts via an internal thread.

A Outside diameter
B Feed rod interface
Z Cross bore ID
P Fit ID
L Total length
TRAUB Rotating Inserts D10 - © Schlenker Spannwerkzeuge

Article Machine manufacturer Ø A
[mm]		 Ø B
[mm]		 Ø P
[mm]		 Ø Z
[mm]		 L
[mm]
L10 TR
D10 Traub		 TRAUB 10,5 9 7 4 88
L12 TR
D12 Traub		 TRAUB 12,5 11 8 4 88

TRAUB ROTATING INSERTS VERSIONS

Our TRAUB rotating inserts are used in all common loading magazines. They are characterized above all by their precision and durability. Test our TRAUB rotating inserts now, you will be convinced.

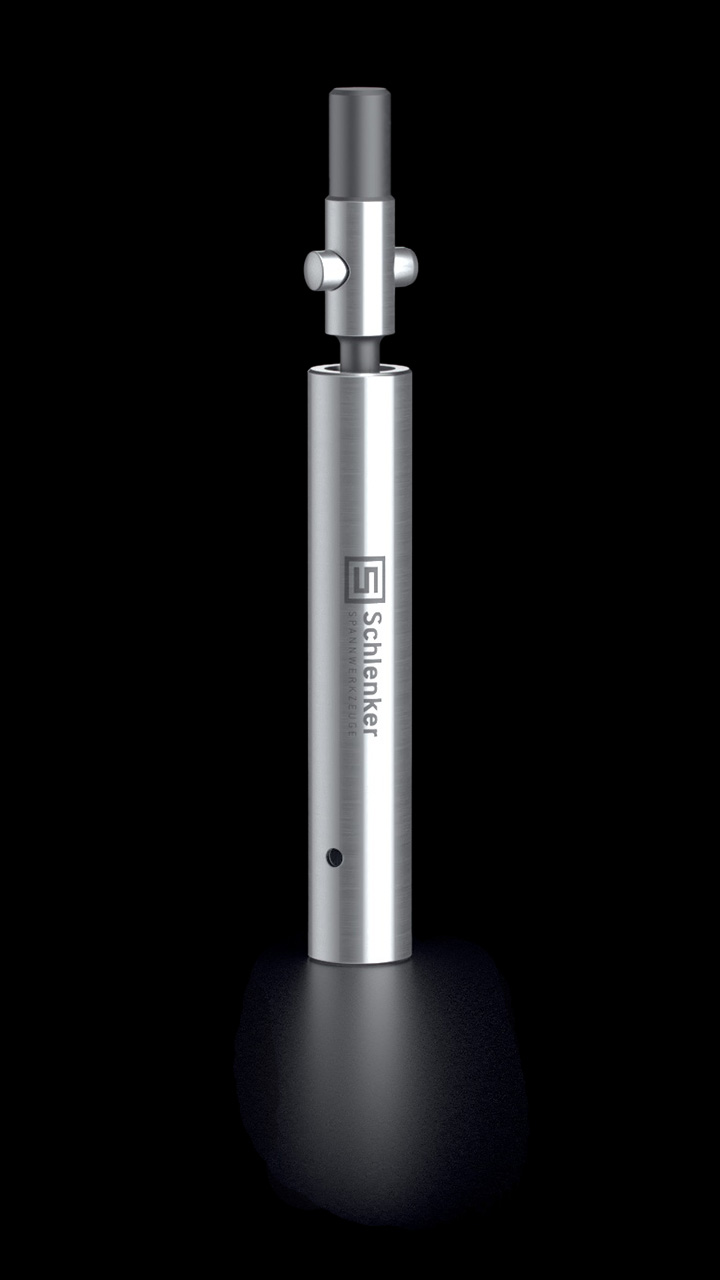

TRAUB

  • Available sizes D10 to D12

Click on the product image to get 360° view
