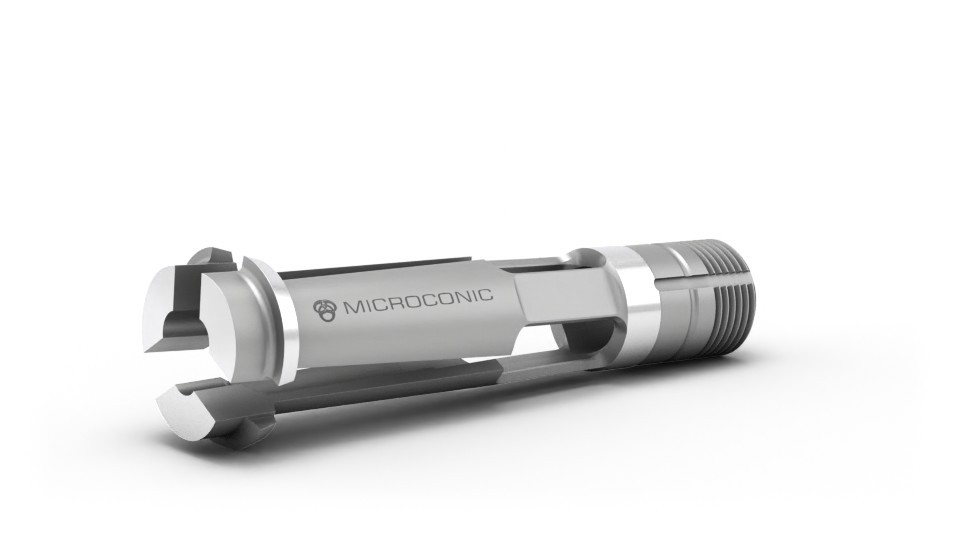

MASA TOOL MICROCONIC OVERGRIP COLLETS

MASA TOOL Microconic overgrip collets are designed and manufactured to offer maximum precision and reliability.
By using them, you improve the processing quality and precision of your machines considerably.

USE OF MASA TOOL MICROCONIC OVERGRIP COLLETS UM10

The overgrip collets are used in the sub spindle when the diameter to be clamped is smaller than the diameter to be overgripped. With the overgrip collets, a diameter difference of up to 4 mm can be overgripped, thus reduces cycle time. As standard, they have a runout of less than 5µ and are always supplied with an ejection guide sleeve. The microconic overgrip collets are available in three versions.

D Outside diameter
L Total length
K Taper angle
F Shape
MASA TOOL Microconic Overgrip Collets UM10 UM 5 - © Schlenker Spannwerkzeuge

ØA Order
no.		 Item B ØG max. ØC1 D1 ØC2 D2
mm inch mm inch mm inch mm inch mm inch mm inch mm inch
0.45 0.40 – 0.48 .0177 .0157 – .0189 123546 UM10W-45 2.2 .09 6.1 .24 7.4 .29 5.6 .22 9.9 .38 15.1 .60
0.5 0.45 – 0.53 .0197 .0177 – .0209 123009 UM10W-50 2.2 .09 6.1 .24 7.4 .29 5.6 .22 9.9 .38 15.1 .60
0.55 0.50 – 0.58 .0217 .0197 – .0228 123011 UM10W-55 2.2 .09 6.2 .24 7.4 .29 5.6 .22 9.9 .38 15.1 .60
0.6 0.55 – 0.63 .0236 .0217 – .0248 123013 UM10W-60 2.2 .09 6.2 .24 7.4 .28 5.6 .22 9.8 .38 15.1 .60
0.65 0.60 – 0.68 .0256 .0236 – .0268 123015 UM10W-65 2.3 .09 6.3 .24 7.4 .28 5.6 .22 9.8 .38 15.1 .60
0.7 0.65 – 0.73 .0276 .0256 – .0287 123017 UM10W-70 2.3 .09 6.3 .24 7.4 .28 5.6 .22 9.8 .38 15.1 .60
0.75 0.70 – 0.78 .0295 .0276 – .0307 123019 UM10W-75 2.3 .10 6.3 .24 7.4 .28 5.6 .22 9.8 .38 15.1 .60
0.8 0.75 – 0.83 .0315 .0295 – .0327 123021 UM10W-80 2.3 .10 6.3 .24 7.4 .28 5.6 .22 9.8 .38 15.1 .60
0.85 0.80 – 0.88 .0335 .0315 – .0346 123023 UM10W-85 2.4 .10 6.4 .25 7.4 .28 5.6 .22 9.8 .38 15.1 .60
0.9 0.85 – 0.93 .0354 .0335 – .0366 123025 UM10W-90 2.4 .10 6.4 .25 7.4 .28 5.6 .22 9.8 .38 15.1 .60
0.95 0.90 – 0.98 .0374 .0354 – .0386 123027 UM10W-95 2.4 .10 6.4 .25 7.4 .29 5.6 .22 9.9 .38 15.1 .60
1 0.95 – 1.03 .0394 .0374 – .0406 123029 UM10W-100 2.4 .10 6.4 .25 7.4 .29 5.6 .22 9.9 .38 15.1 .60
1.05 1.00 – 1.08 .0413 .0394 – .0425 123031 UM10W-105 2.4 .10 6.4 .25 7.4 .29 5.6 .22 9.9 .38 15.1 .60
1.1 1.05 – 1.13 .0433 .0413 – .0445 123033 UM10W-110 2.4 .10 6.5 .25 7.4 .29 5.6 .22 9.9 .38 15.1 .60
1.15 1.10 – 1.18 .0453 .0433 – .0465 123035 UM10W-115 2.5 .10 6.5 .25 7.4 .29 5.6 .22 9.9 .38 15.1 .60
1.2 1.15 – 1.23 .0472 .0453 – .0484 123037 UM10W-120 2.5 .10 6.5 .25 7.4 .29 5.6 .22 9.9 .38 15.1 .60
1.25 1.20 – 1.8 .0492 .0472 – .0504 123039 UM10W-125 2.5 .10 6.5 .25 7.4 .29 5.6 .22 9.9 .38 15.1 .60
1.3 1.25 – 1.33 .0512 .0492 – .0524 123041 UM10W-130 2.6 .11 6.6 .25 7.4 .29 5.6 .22 9.9 .38 15.1 .60
1.35 1.30 – 1.38 .0531 .0512 – .0543 123043 UM10W-135 2.6 .11 6.6 .26 7.4 .29 5.6 .22 9.9 .38 15.1 .60
1.4 1.35 – 1.43 .0551 .0531 – .0563 123045 UM10W-140 2.6 .11 6.6 .26 7.4 .29 5.6 .22 9.9 .38 15.1 .60
1.45 1.40 – 1.48 .0571 .0551 – .0583 123047 UM10W-145 2.6 .11 6.7 .26 7.4 .29 5.6 .22 9.9 .38 15.1 .60
1.5 1.4 – 1.53 .0591 .0571 – .0602 123049 UM10W-150 2.7 .11 6.7 .26 7.4 .29 5.6 .22 9.9 .38 15.1 .60
1.55 1.50 – 1.58 .0610 .0591 – .0622 123051
123338		 UM10W-155
UM10T-155		 2.7
5.8		 .11
.23		 6.7
6.5		 .26
.25		 7.4
7.4		 .29
.29		 5.6
7		 .22
.28		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
1.6 1.55 – 1.63 .0630 .0610 – .0642 123053
123339		 UM10W-160
UM10T-160		 2.7
5.8		 .11
.23		 6.8
6.5		 .26
.25		 7.4
7.4		 .29
.29		 5.6
7		 .22
.28		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
1.65 1.60 – 1.68 .0650 .0630 – .0661 123055
123340		 UM10W-165
UM10T-165		 2.7
5.8		 .11
.23		 6.8
6.6		 .26
.25		 7.4
7.4		 .29
.29		 5.6
7		 .22
.28		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
1.7 1.65 – 1.73 .0669 .0650 – .0681 123057
123341		 UM10W-170
UM10T-170		 2.8
5.8		 .11
.23		 6.8
6.6		 .26
.26		 7.4
7.4		 .29
.29		 5.6
7		 .22
.28		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
1.75 1.70 – 1.78 .0689 .0669 – .0701 123059
123342		 UM10W-175
UM10T-175		 2.8
5.8		 .11
.23		 6.8
6.6		 .27
.26		 7.4
7.4		 .29
.29		 5.6
7		 .22
.28		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
1.8 1.75 – 1.83 .0709 .0689 – .0720 123061
123343		 UM10W-180
UM10T-180		 2.8
5.9		 .11
.24		 6.9
6.7		 .27
.26		 7.4
7.4		 .29
.29		 5.6
7		 .22
.28		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
1.85 1.80 – 1.88 .0728 .0709 – .0740 123063
123344		 UM10W-185
UM10T-185		 2.8
5.9		 .12
.24		 6.9
6.7		 .27
.26		 7.4
7.4		 .29
.29		 5.6
7		 .22
.28		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
1.9 1.85 – 1.93 .0748 .0728 – .0760 123065
123345		 UM10W-190
UM10T-190		 2.8
5.9		 .12
.24		 7
6.8		 .27
.26		 7.4
7.4		 .29
.29		 5.6
7		 .22
.28		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
1.95 1.90 – 1.98 .0768 .0748 – .0780 123067
123346		 UM10W-195
UM10T-195		 2.9
5.9		 .12
.24		 7
6.8		 .27
.26		 7.4
7.4		 .29
.29		 5.6
7		 .22
.28		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
2 1.95 – 2.03 .0787 .0768 –.0799 123069
123347		 UM10W-200
UM10T-200		 2.9
5.9		 .12
.24		 7
6.8		 .27
.26		 7.4
7.4		 .29
.29		 5.6
7		 .22
.28		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
2.05 2.00 – 2.08 .0807 .0787 – .0819 123071
123348		 UM10W-205
UM10T-205		 2.9
5.9		 .12
.24		 7.1
6.9		 .27
.27		 7.4
7.4		 .29
.29		 5.6
7		 .22
.28		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
2.1 2.05 – 2.13 .0827 .0807 – .0839 123073
123349		 UM10W-210
UM10T-210		 2.9
5.9		 .12
.24		 7.1
6.9		 .27
.27		 7.4
7.4		 .29
.29		 5.6
7		 .22
.28		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
2.15 2.10 – 2.18 .0846 .0827 – .0858 123075
123350		 UM10W-215
UM10T-215		 3
6.5		 .12
.26		 7.1
6.8		 .28
.27		 7.4
7.4		 .29
.29		 5.6
7.6		 .22
.30		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
2.2 2.15 – 2.23 .0866 .0846 – .0878 123077
123351		 UM10W-220
UM10T-220		 3
6.5		 .12
.26		 7.2
6.9		 .28
.27		 7.4
7.5		 .29
.29		 5.6
7.6		 .22
.30		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
2.25 2.20 – 2.28 .0886 .0866 – .0898 123079
123352		 UM10W-225
UM10T-225		 3
6.5		 .12
.26		 7.2
6.9		 .28
.27		 7.4
7.5		 .29
.29		 5.6
7.6		 .22
.28		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
2.3 2.25 – 2.33 .0906 .0886 –.0917 123081
123353		 UM10W-230
UM10T-230		 3
6.5		 .12
.26		 7.2
6.9		 .28
.27		 7.4
7.5		 .29
.29		 5.6
7.6		 .22
.28		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
2.35 2.30 – 2.38 .0925 .0906 – .0937 123083
123354		 UM10W-235
UM10T-235		 3.1
6.5		 .13
.26		 7.3
7		 .28
.27		 7.4
7.5		 .29
.29		 5.6
7.6		 .22
.30		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
2.4 2.35 – 2.43 .0945 .0925 – .0957 123085
123355		 UM10W-240
UM10T-240		 3.1
6.5		 .13
.26		 7.3
7		 .28
.27		 7.4
7.5		 .29
.29		 5.6
7.6		 .22
.30		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
2.45 2.40 – 2.48 .0965 .0945 – .0976 123087
123356		 UM10W-245
UM10T-245		 3.1
7.1		 .13
.29		 7.4
7		 .28
.27		 7.4
7.5		 .29
.29		 5.6
7.6		 .22
.32		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
2.5 2.45 – 2.53 .0984 .0965 – .0996 123089
123357		 UM10W-250
UM10T-250		 3.2
7.1		 .13
.29		 7.4
7		 .29
.27		 7.4
7.5		 .29
.29		 5.6
7.6		 .22
.32		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
2.55 2.50 – 2.58 .1004 .0984 – .1016 123091
123358		 UM10W-255
UM10T-255		 3.2
7.1		 .13
.29		 7.4
7		 .29
.27		 7.4
7.5		 .29
.29		 5.6
8.2		 .22
.32		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
2.6 2.55 – 2.63 .1024 .1004 – .1035 123093
123359		 UM10W-260
UM10T-260		 3.2
7.2		 .13
.29		 7.4
7		 .29
.28		 7.4
7.5		 .29
.29		 5.6
8.2		 .22
.32		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
2.65 2.60 – 2.68 .1043 .1024 – .1055 123095
123360		 UM10W-265
UM10T-265		 3.2
7.2		 .13
.29		 7.5
7		 .29
.28		 7.4
7.5		 .29
.29		 5.6
8.2		 .22
.32		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
2.7 2.65 – 2.73 .1063 .1043 – .1075 123097
123361		 UM10W-270
UM10T-270		 3.2
7.2		 .13
.29		 7.5
7.2		 .29
.28		 7.4
7.5		 .29
.29		 5.6
8.2		 .22
.32		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
2.75 2.70 – 2.78 .1083 .1063 – .1094 123099
123362		 UM10W-275
UM10T-275		 3.3
7.7		 .13
.31		 7.6
7.1		 .29
.27		 7.4
7.5		 .29
.29		 5.6
8.7		 .22
.34		 9.9
9.9		 .38
.38		 15.1
17.1		 .60
.68
2.8 2.75 – 2.83 .1102 .1083 – .1114 123101
123363		 UM10W-280
UM10T-280		 3.3
7.7		 .13
.31		 7.6
7.1		 .29
.28		 7.4
7.5		 .29
.29		 5.6
8.7		 .22
.34		 9.9
9.9		 .38
.38		 15.1
17.1		 .60
.68
2.85 2.80 – 2.88 .1122 .1102 – .1134 123103
123364		 UM10W-285
UM10T-285		 3.3
7.7		 .14
.31		 7.6
7.2		 .30
.28		 7.4
7.5		 .29
.29		 5.6
8.7		 .22
.34		 9.9
9.9		 .38
.38		 15.1
17.1		 .60
.68
2.9 2.85 – 2.93 .1142 .1122 – .1154 123105
123365		 UM10W-290
UM10T-290		 3.3
7.8		 .14
.31		 7.7
7.2		 .30
.28		 7.4
7.5		 .29
.29		 5.6
8.7		 .22
.34		 9.9
9.9		 .38
.38		 15.1
17.1		 .60
.68
2.95 2.90 – 2.98 .1161 .1142 – .1173 123107
123366		 UM10W-295
UM10T-295		 3.4
7.8		 .14
.31		 7.7
7.3		 .30
.28		 7.4
7.5		 .29
.29		 5.6
8.7		 .22
.34		 9.9
9.9		 .38
.38		 15.1
17.1		 .60
.68
3 2.95 – 3.03 .1181 .1161 – .1193 123109
123367		 UM10W-300
UM10T-300		 3.4
8.3		 .14
.33		 7.7
7.2		 .30
.28		 7.4
7.5		 .29
.29		 5.6
9.2		 .22
.36		 9.9
9.9		 .38
.38		 15.1
17.1		 .60
.68
3.05 3.00 – 3.08 .1201 .1181 – .1213 123111
123368		 UM10W-305
UM10T-305		 3.4
8.3		 .14
.33		 7.8
7.3		 .30
.28		 7.4
7.5		 .29
.29		 5.6
9.2		 .22
.36		 9.9
9.9		 .38
.38		 15.1
17.1		 .60
.68
3.1 3.05 – 3.13 .1220 .1201 – .1232 123113
123369		 UM10W-310
UM10T-310		 3.5
8.3		 .14
.33		 7.8
7.3		 .30
.28		 7.4
7.5		 .29
.29		 5.6
9.2		 .22
.36		 9.9
9.9		 .38
.38		 15.1
17.1		 .60
.68
3.15 3.10 – 3.18 .1240 .1220 – .1252 123115
123370		 UM10W-315
UM10T-315		 3.5
8.3		 .14
.33		 7.9
7.3		 .30
.28		 7.4
7.5		 .29
.29		 5.6
9.2		 .22
.36		 9.9
9.9		 .38
.38		 15.1
17.1		 .60
.68
3.2 3.15 – 3.23 .1260 .1240 – .1272 123117
123371		 UM10W-320
UM10T-320		 3.5
8.3		 .14
.33		 7.9
7.4		 .31
.29		 7.4
7.5		 .29
.29		 5.6
9.2		 .22
.36		 9.9
9.9		 .38
.38		 15.1
17.1		 .60
.68
3.25 3.20 – 3.28 .1280 .1260 – .1291 123119
123372		 UM10W-325
UM10T-325		 3.5
8.3		 .14
.33		 7.9
7.4		 .31
.29		 7.4
7.5		 .29
.29		 5.6
9.2		 .22
.36		 9.9
9.9		 .38
.38		 15.1
17.1		 .60
.68
3.3 3.25 – 3.33 .1299 .1280 – .1311 123121
123373		 UM10W-330
UM10T-330		 3.6
8.9		 .14
.35		 8
7.4		 .31
.29		 7.4
7.5		 .29
.29		 5.6
9.7		 .22
.38		 9.9
9.9		 .38
.38		 15.1
17.1		 .60
.68
3.35 3.30 – 3.38 .1319 .1299 – .1331 123123
123374		 UM10W-335
UM10T-335		 3.6
8.9		 .15
.35		 8
7.4		 .31
.29		 7.4
7.5		 .29
.29		 5.6
9.7		 .22
.38		 9.9
9.9		 .38
.38		 15.1
17.1		 .60
.68
3.4 3.35 – 3.43 .1339 .1319 – .1350 123125
123375		 UM10W-340
UM10T-340		 3.6
8.9		 .15
.35		 8
7.5		 .31
.29		 7.4
7.5		 .29
.29		 5.6
9.7		 .22
.38		 9.9
9.9		 .38
.38		 15.1
17.1		 .60
.68
3.45 3.40 – 3.48 .1358 .1339 – .1370 123127
123376		 UM10W-345
UM10T-345		 3.6
8.9		 .15
.35		 8.1
7.5		 .31
.29		 7.4
7.5		 .29
.29		 5.6
9.7		 .22
.38		 9.9
9.9		 .38
.38		 15.1
17.1		 .60
.68
3.5 3.45 – 3.53 .1378 .1358 – .1390 123129
123377		 UM10W-350
UM10T-350		 3.6
8.9		 .15
.35		 8.1
7.5		 .31
.29		 7.4
7.5		 .29
.29		 5.6
9.7		 .22
.38		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
3.55 3.50 – 3.58 .1398 .1378 – .1409 123131
123378		 UM10W-355
UM10T-355		 3.7
8.9		 .15
.36		 8.1
7.6		 .32
.29		 7.4
7.5		 .29
.29		 5.6
9.7		 .22
.38		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
3.6 3.55 – 3.63 .1417 .1398 – .1429 123133
123379		 UM10W-360
UM10T-360		 3.7
8.9		 .15
.36		 8.2
7.6		 .32
.29		 7.4
7.5		 .29
.29		 5.6
9.7		 .22
.38		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
3.65 3.60 – 3.68 .1437 .1417 – 1449 123135
123380		 UUM10W-365
UM10T-365		 3.7
9.5		 .15
.38		 8.2
7.5		 .32
.29		 7.4
7.5		 .29
.29		 5.6
10.3		 .22
.41		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
3.7 3.65 – 3.73 .1457 .1437 – .1469 123137
123381		 UM10W-370
UM10T-370		 3.7
9.5		 .15
.38		 8.3
7.6		 .32
.29		 7.4
7.5		 .29
.29		 5.6
10.3		 .22
.41		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
3.75 3.70 – 3.78 .1476 .1457 – .1488 123139
123382		 UM10W-375
UM10T-375		 3.8
9.5		 .15
.38		 8.3
7.6		 .32
.30		 7.4
7.5		 .29
.29		 5.6
10.3		 .22
.41		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
3.8 3.75 – 3.83 .1496 .1476 – .1508 123141
123383		 UM10W-380
UM10T-380		 3.8
9.6		 .15
.38		 8.3
7.7		 .32
.30		 7.4
7.5		 .29
.29		 5.6
10.3		 .22
.41		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
3.85 3.80 – 3.88 .1516 .1496 – .1528 123143
123384		 UM10W-385
UM10T-385		 3.8
9.6		 .15
.38		 8.4
7.7		 .32
.30		 7.4
7.5		 .29
.29		 5.6
10.3		 .22
.41		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
3.9 3.85 – 3.93 .1535 .1516 – .1547 123145
123385		 UM10W-390
UM10T-390		 3.8
9.6		 .16
.38		 8.4
7.8		 .33
.30		 7.4
7.5		 .29
.29		 5.6
10.3		 .22
.41		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
3.95 3.90 – 3.98 .1555 .1535 – .1567 123147
123386		 UM10W-395
UM10T-395		 3.9
10.1		 .16
.40		 8.4
7.7		 .33
.30		 7.4
7.5		 .29
.29		 5.6
10.9		 .22
.43		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
4.05 3.95 – 4.03 .1594 .1575 – .1606 123151
123388		 UM10W-405
UM10T-405		 3.9
10.2		 .16
.40		 8.5
7.8		 .33
.30		 7.4
7.5		 .29
.29		 5.6
10.9		 .22
.43		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
4 4.00 – 4.08 .1614 .1594 – .1626 123153
123389		 UM10W-410
UM10T-410		 3.9
10.2		 .16
.41		 8.6
7.8		 .33
.30		 7.4
7.5		 .29
.29		 5.6
10.9		 .22
.43		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
4.1 4.05 – 4.13 .1614 .1594 – .1626 123153
123389		 UM10W-410
UM10T-410		 3.9
10.2		 .16
.41		 8.6
7.8		 .33
.30		 7.4
7.5		 .29
.29		 5.6
10.9		 .22
.43		 9.9
9.9		 .38
.39		 15.1
17.1		 .60
.68
4.15 4.10 – 4.18 .1634 .1614 – .1646 123155
123390
124338		 UM10W-415
UM10T-415
UM10V-415		 4
10.2
4		 .16
.41
.16		 8.6
7.9
6.8		 .33
.30
.26		 7.4
7.5
9.2		 .29
.29
.36		 5.6
10.9
6.5		 .22
.43
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
4.2 4.15 – 4.23 .1654 .1634 – .1665 123157
123391
124339		 UM10W-420
UM10T-420
UM10V-420		 4
10.2
4		 .16
.41
.16		 8.6
7.9
6.9		 .33
.31
.27		 7.4
7.5
9.2		 .29
.29
.36		 5.6
10.9
6.5		 .22
.43
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
4.25 4.20 – 4.28 .1673 .1654 – .1685 123159
123392
123429		 UM10W-425
UM10T-425
UM10V-425		 4
10.7
4		 .16
.43
.16		 8.7
7.9
6.9		 .34
.31
.27		 7.4
7.5
9.2		 .29
.29
.36		 5.6
11.4
6.5		 .22
.45
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
4.3 4.25 – 4.33 .1693 .1673 – .1705 123161
123393
123430		 UM10W-430
UM10T-430
UM10V-430		 4
10.7
4		 .16
.43
.16		 8.7
7.9
7		 .34
.31
.27		 7.4
7.5
9.2		 .29
.29
.36		 5.6
11.4
6.5		 .22
.45
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
4.35 4.30 – 4.38 .1713 .1693 – .1724 123163
123394
123431		 UM10W-435
UM10T-435
UM10V-435		 4.1
10.7
4.1		 .17
.43
.17		 8.8
8
7		 .34
.31
.27		 7.4
7.5
9.2		 .29
.29
.36		 5.6
11.4
6.5		 .22
.45
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
4.4 4.35 – 4.43 .1732 .1713 – .1744 123165
123395
123432		 UM10W-440
UM10T-440
UM10V-440		 4.1
10.7
4.1		 .17
.43
.17		 8.8
8
7		 .34
.31
.27		 7.4
7.5
9.2		 .29
.29
.36		 5.6
11.4
6.5		 .22
.45
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
4.45 4.40 – 4.48 .1752 .1732 – .1764 123167
123396
123433		 UM10W-445
UM10T-445
UM10V-445		 4.1
10.8
4.1		 .17
.43
.17		 8.8
8
7.1		 .34
.31
.27		 7.4
7.5
9.2		 .29
.29
.36		 5.6
11.4
6.5		 .22
.45
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
4.5 4.45 – 4.53 .1772 .1752 – .1783 123169
123397
123434		 UM10W-450
UM10T-450
UM10V-450		 4.1
10.8
4.1		 .17
.43
.17		 8.9
8.1
7.1		 .34
.31
.27		 7.4
7.5
9.2		 .29
.29
.36		 5.6
11.4
6.5		 .22
.45
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
4.55 4.50 – 4.58 .1791 .1772 – .1803 123171
123398
123435		 UM10W-455
UM10T-455
UM10V-455		 4.2
11.3
4.2		 .17
.45
.17		 8.9
8
7.2		 .35
.31
.28		 7.4
7.5
9.2		 .29
.29
.36		 5.6
11.9
6.5		 .22
.47
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
4.6 4.55 – 4.63 .1811 .1791 – .1823 123173
123399
123436		 UM10W-460
UM10T-460
UM10V-460		 4.2
11.3
4.2		 .17
.45
.17		 8.9
8.1
7.2		 .35
.31
.28		 7.4
7.5
9.2		 .29
.29
.36		 5.6
11.9
6.5		 .22
.47
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
4.65 4.60 – 4.68 .1831 .1811 – .1843 123175
123400
123437		 UM10W-465
UM10T-465
UM10V-465		 4.2
11.3
4.2		 .17
.45
.17		 9
8.1
7.3		 .35
.32
.28		 7.4
7.5
9.2		 .29
.29
.36		 5.6
11.9
6.5		 .22
.47
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
4.7 4.65 – 4.73 .1850 .1831 – .1862 123177
123401
123438		 UM10W-470
UM10T-470
UM10V-470		 4.2
11.3
4.2		 .17
.45
.17		 9
8.2
7.3		 .35
.32
.28		 7.4
7.5
9.2		 .29
.29
.36		 5.6
11.9
6.5		 .22
.47
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
4.75 4.70 – 4.78 .1870 .1850 – .1882 123179
123402
123439		 UM10W-475
UM10T-475
UM10V-475		 4.3
11.4
4.3		 .17
.45
.17		 9
8.2
7.3		 .35
.32
.28		 7.4
7.5
9.2		 .29
.29
.36		 5.6
11.9
6.5		 .22
.47
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
4.8 4.75 – 4.83 .1890 .1870 – .1902 123181
123403
123440		 UM10W-475
UM10T-475
UM10V-475		 4.3
11.4
4.3		 .17
.45
.17		 9.1
8.3
7.4		 .35
.32
.28		 7.4
7.5
9.2		 .29
.29
.36		 5.6
11.9
6.5		 .22
.47
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
4.85 4.80 – 4.88 .1909 .1890 – .1921 123183
123404
123441		 UM10W-485
UM10T-485
UM10V-485		 4.3
11.4
4.3		 .17
.45
.17		 9.1
8.3
7.4		 .35
.32
.28		 7.4
7.5
9.2		 .29
.29
.36		 5.6
11.9
6.5		 .22
.47
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
4.9 4.85 – 4.93 .1929 .1909 – .1941 123185
123405
123442		 UM10W-490
UM10T-490
UM10V-490		 4.3
11.4
4.3		 .18
.45
.18		 9.2
8.3
7.5		 .36
.32
.29		 7.4
7.5
9.2		 .29
.29
.36		 5.6
11.9
6.5		 .22
.47
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
4.95 4.90 – 4.98 .1949 .1929 – .1961 123187
123406
123443		 UM10W-495
UM10T-495
UM10V-495		 4.3
11.4
4.3		 .18
.45
.18		 9.2
8.3
7.5		 .36
.32
.29		 7.4
7.5
9.2		 .29
.29
.36		 5.6
11.9
6.5		 .22
.47
.26		 9.9
9.9
9.9		 .38
.38
.39		 15.1
17.1
25.7		 .60
.68
1.01
5 4.95 – 5.03 .1969 .1949 – .1980 123189
123407
123444		 UM10W-500
UM10T-500
UM10V-500		 4.4
12.2
4.4		 .18
.48
.18		 9.3
8.3
7.6		 .36
.32
.29		 7.4
7.5
9.2		 .29
.29
.36		 5.6
11.9
6.5		 .22
.47
.26		 9.9
9.9
9.9		 .38
.38
.39		 15.1
17.1
25.7		 .60
.68
1.01
5.05 5.00 – 5.08 .1988 .1969 – .2000 123191
123408
123445		 UM10W-505
UM10T-505
UM10V-505		 4.4
12.2
4.4		 .18
.48
.18		 9.3
8.4
7.6		 .36
.32
.29		 7.4
7.5
9.2		 .29
.29
.36		 5.6
12.7
6.5		 .22
.50
.26		 9.9
9.9
9.9		 .38
.38
.39		 15.1
17.1
25.7		 .60
.68
1.01
5.1 5.05 – 5.13 .2008 .1988 – .2020 123193
123409
123446		 UM10W-510
UM10T-510
UM10V-510		 4.4
12.2
4.4		 .18
.48
.18		 9.3
8.4
7.7		 .36
.32
.29		 7.4
7.5
9.2		 .29
.29
.36		 5.6
12.7
6.5		 .22
.50
.26		 9.9
9.9
9.9		 .38
.38
.39		 15.1
17.1
25.7		 .60
.68
1.01
5.15 5.10 – 5.18 .2028 .2008 – .2039 123195
123410
123447		 UM10W-515
UM10T-515
UM10V-515		 4.5
12.2
4.5		 .18
.48
.18		 9.4
8.4
7.7		 .36
.32
.29		 7.4
7.5
9.2		 .29
.29
.36		 5.6
12.7
6.5		 .22
.50
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
5.2 5.15 – 5.23 .2047 .2028 – .2059 123197
123411
123448		 UM10W-520
UM10T-520
UM10V-520		 4.5
12.2
4.5		 .18
.49
.18		 9.4
8.5
7.7		 .36
.33
.29		 7.4
7.5
9.2		 .29
.29
.36		 5.6
12.7
6.5		 .22
.50
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
5.25 5.20 – 5.28 .2067 .2047 – .2079 123199
123412
123449		 UM10W-525
UM10T-525
UM10V-525		 4.5
12.2
4.5		 .18
.49
.18		 9.4
8.5
7.8		 .37
.33
.30		 7.4
7.5
9.2		 .29
.29
.36		 5.6
12.7
6.5		 .22
.50
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
5.3 5.25 – 5.33 .2087 .2067 – .2098 123201
123413
123450		 UM10W-530
UM10T-530
UM10V-530		 4.5
12.2
4.5		 .18
.49
.18		 9.4
8.6
7.8		 .37
.33
.30		 7.4
7.5
9.2		 .29
.29
.36		 5.6
12.7
6.5		 .22
.50
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
5.35 5.30 – 5.38 .2106 .2087 – .2118 123203
123414
123451		 UM10W-535
UM10T-535
UM10V-535		 4.6
12.2
4.6		 .18
.49
.18		 9.5
8.6
7.9		 .37
.33
.30		 7.4
7.5
9.2		 .29
.29
.36		 5.6
12.7
6.5		 .22
.50
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
5.4 5.35 – 5.43 .2126 .2106 – .2138 123205
123415
123452		 UM10W-540
UM10T-540
UM10V-540		 4.6
13
4.6		 .19
.51
.19		 9.6
8.6
7.9		 .37
.33
.30		 7.4
7.5
9.2		 .29
.29
.36		 5.6
13.4
6.5		 .22
.53
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
5.45 5.40 – 5.48 .2146 .2126 – .2157 123207
123416
123453		 UM10W-545
UM10T-545
UM10V-545		 4.6
13
4.6		 .19
.52
.19		 9.6
8.6
8		 .37
.33
.30		 7.4
7.5
9.2		 .29
.29
.36		 5.6
13.4
6.5		 .22
.53
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
5.5 5.45 – 5.53 .2165 .2146 – .2177 123209
123417
123454		 UM10W-550
UM10T-550
UM10V-550		 4.6
13
4.6		 .19
.52
.19		 9.7
8.6
8		 .38
.34
.31		 7.4
7.5
9.2		 .29
.29
.36		 5.6
13.4
6.5		 .22
.53
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
5.55 5.50 – 5.58 .2185 .2165 – .2197 123211
123418
123455		 UM10W-555
UM10T-555
UM10V-555		 4.7
13
4.7		 .19
.52
.19		 9.7
8.7
8		 .38
.34
.31		 7.4
7.5
9.2		 .29
.29
.36		 5.6
13.4
6.5		 .22
.53
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
5.6 5.55 – 5.63 .2205 .2185 – .2217 123213
123419
123456		 UM10W-560
UM10T-560
UM10V-560		 4.7
13
4.7		 .19
.52
.19		 9.7
8.7
8.1		 .38
.34
.31		 7.4
7.5
9.2		 .29
.29
.36		 5.6
13.4
6.5		 .22
.53
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
5.65 5.60 – 5.68 .2224 .2205 – .2236 123215
123420
123457		 UM10W-565
UM10T-565
UM10V-565		 4.7
13
4.7		 .19
.52
.19		 9.8
8.8
8.1		 .38
.34
.32		 7.4
7.5
9.2		 .29
.29
.36		 5.6
13.4
6.5		 .22
.53
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
5.7 5.65 – 5.73 .2244 .2224 – .2256 123217
123421
123458		 UM10W-570
UM10T-570
UM10V-570		 4.7
13
4.7		 .19
.52
.19		 9.8
8.8
8.2		 .38
.34
.32		 7.4
7.5
9.2		 .29
.29
.36		 5.6
13.4
6.5		 .22
.53
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
5.75 5.70 – 5.78 .2264 .2244 – .2276 123219
123422
123459		 UM10W-575
UM10T-575
UM10V-575		 4.8
13.7
4.8		 .19
.54
.19		 9.9
8.8
8.2		 .38
.34
.32		 7.4
7.5
9.2		 .29
.29
.36		 5.6
14.1
6.5		 .22
.55
.26		 9.9
9.9
9.9		 .38
.38
.39		 15.1
17.1
25.7		 .60
.68
1.01
5.8 5.75 – 5.83 .2283 .2264 – .2295 123221
123423
123460		 UM10W-580
UM10T-580
UM10V-580		 4.8
13.7
4.8		 .19
.54
.19		 9.9
8.8
8.3		 .39
.34
.32		 7.4
7.5
9.2		 .29
.29
.36		 5.6
14.1
6.5		 .22
.55
.26		 9.9
9.9
9.9		 .38
.38
.39		 15.1
17.1
25.7		 .60
.68
1.01
5.85 5.80 – 5.88 .2303 .2283 – .2315 123223
123424
123461		 UM10W-585
UM10T-585
UM10V-585		 4.8
13.7
4.8		 .19
.55
.19		 10
8.8
8.3		 .39
.34
.32		 7.4
7.5
9.2		 .29
.29
.36		 5.6
14.1
6.5		 .22
.55
.26		 9.9
9.9
9.9		 .38
.38
.39		 15.1
17.1
25.7		 .60
.68
1.01
5.9 5.85 – 5.93 .2323 .2303 – .2335 123225
123425
123462		 UM10W-590
UM10T-590
UM10V-590		 4.8
13.7
4.8		 .19
.55
.19		 10
8.9
8.4		 .39
.35
.32		 7.4
7.5
9.2		 .29
.29
.36		 5.6
14.1
6.5		 .22
.55
.26		 9.9
9.9
9.9		 .38
.38
.39		 15.1
17.1
25.7		 .60
.68
1.01
5.95 5.90 – 5.98 .2343 .2323 – .2354 123227
123426
123463		 UM10W-595
UM10T-595
UM10V-595		 4.9
13.8
4.9		 .20
.55
.19		 10
8.9
8.4		 .39
.35
.32		 7.4
7.5
9.2		 .29
.29
.36		 5.6
14.1
6.5		 .22
.55
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
6 5.95 – 6.03 .2362 .2343 – .2374 123229
123427
123464		 UM10W-600
UM10T-600
UM10V-600		 4.9
13.8
4.9		 .20
.55
.20		 10.1
9
8.5		 .39
.35
.33		 7.4
7.5
9.2		 .29
.29
.36		 5.6
14.1
6.5		 .22
.55
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
6.05 6.00 – 6.08 .2382 .2362 – .2394 123231
123509
123465		 UM10W-605
UM10T-605
UM10V-605		 4.9
13.8
4.9		 .20
.55
.20		 10.1
9
8.5		 .39
.35
.33		 7.4
7.5
9.2		 .29
.29
.36		 5.6
14.1
6.5		 .22
.55
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
6.1 6.05 – 6.13 .2402 .2382 – .2413 123233
123510
123466		 UUM10W-610
UM10T-610
UM10V-610		 4.9
13.8
4.9		 .20
.55
.20		 10.1
9
8.5		 .39
.35
.33		 7.4
7.6
9.3		 .29
.29
.36		 5.6
14.1
6.5		 .22
.55
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
6.15 6.10 – 6.18 .2421 .2402 – .2433 123235
123511
123467		 UM10W-615
UM10T-615
UM10V-615		 4.9
13.8
4.9		 .20
.55
.20		 10.1
9.1
8.6		 .40
.35
.33		 7.4
7.6
9.3		 .29
.29
.36		 5.6
14.1
6.5		 .22
.55
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
6.2 6.15 – 6.23 .2441 .2421 – .2453 123235
123511
123467		 UM10W-620
UM10T-620
UM10V-620		 5
13.8
5		 .20
.55
.20		 10.1
9.1
8.6		 .40
.36
.33		 7.4
7.6
9.3		 .29
.29
.36		 5.6
14.1
6.5		 .22
.55
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
6.25 6.20 – 6.28 .2461 .2441 – .2472 123239
123513
123469		 UM10W-625
UM10T-625
UM10V-625		 5
13.8
5		 .20
.55
.20		 10.1
9.2
8.7		 .40
.36
.33		 7.4
7.6
9.2		 .29
.29
.36		 5.6
14.1
6.5		 .22
.55
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
6.3 6.25 – 6.33 .2480 .2461 – .2492 123241
123514
123470		 UM10W-630
UM10T-630
UM10V-630		 5
13.8
5		 .20
.55
.20		 10.1
9.2
8.7		 .40
.36
.34		 7.4
7.6
9.2		 .29
.29
.36		 5.6
14.1
6.5		 .22
.55
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
6.35 6.30 – 6.38 .2500 .2480 – .2512 123243
123515
123471		 UM10W-635
UM10T-635
UM10V-635		 5.1
13.8
5.1		 .20
.55
.20		 10.1
9.3
8.8		 .40
.36
.34		 7.4
7.6
9.2		 .29
.29
.36		 5.6
14.1
6.5		 .22
.55
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
6.35 6.30 – 6.38 .2500 .2480 – .2512 123243
123515
123471		 UM10W-635
UM10T-635
UM10V-635		 5.1
13.8
5.1		 .20
.55
.20		 10.1
9.3
8.8		 .40
.36
.34		 7.4
7.6
9.2		 .29
.29
.36		 5.6
14.1
6.5		 .22
.55
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
6.4 6.35 – 6.43 .2520 .2500 – .2531 123245
123516
123472		 UM10W-640
UM10T-640
UM10V-640		 5.1
13.8
5.1		 .20
.55
.20		 10.1
9.3
8.8		 .40
.36
.34		 7.4
7.6
9.2		 .29
.29
.36		 5.6
14.1
6.5		 .22
.55
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
6.45 6.40 – 6.48 .2539 .2520 – .2551 123247
123517
123473		 UM10W-645
UM10T-645
UM10V-645		 5.1
13.8
5.1		 .21
.55
.21		 10.1
9.4
8.9		 .40
.36
.34		 7.4
7.6
9.2		 .29
.29
.36		 5.6
14.1
6.5		 .22
.55
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
6.5 6.45 – 6.53 .2559 .2539 – .2571 123249
123518
123474		 UM10W-650
UM10T-650
UM10V-650		 5.1
13.9
5.1		 .21
.55
.21		 10.1
9.4
8.9		 .40
.37
.35		 7.4
7.6
9.2		 .29
.29
.36		 5.6
14.1
6.5		 .22
.55
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
6.55 6.50 – 6.58 .2579 .2559 – .2591 123251
123519
123475		 UM10W-655
UM10T-655
UM10V-655		 5.1
13.9
5.1		 .21
.55
.21		 10.1
9.5
8.9		 .40
.37
.35		 7.4
7.6
9.2		 .29
.29
.36		 5.6
14.1
6.5		 .22
.55
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
6.6 6.55 – 6.63 .2598 .2579 – .2610 123253
123520
123476		 UM10W-660
UM10T-660
UM10V-660		 5.2
13.9
5.2		 .21
.55
.21		 10.1
9.5
9		 .40
.37
.35		 7.4
7.6
9.2		 .29
.29
.36		 5.6
14.1
6.5		 .22
.55
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
6.65 6.60 – 6.68 .2618 .2598 – .2630 123255
123521
123477		 UM10W-665
UM10T-665
UM10V-665		 5.2
13.9
5.2		 .21
.55
.21		 10.1
9.6
9		 .40
.37
.35		 7.4
7.6
9.2		 .29
.29
.36		 5.6
14.1
6.5		 .22
.55
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
6.7 6.65 – 6.73 .2638 .2618 – .2650 123257
123522
123478		 UM10W-670
UM10T-670
UM10V-670		 5.2
13.9
5.2		 .21
.55
.21		 10.1
9.6
9.1		 .40
.37
.35		 7.4
7.6
9.2		 .29
.29
.36		 5.6
14.1
6.5		 .22
.55
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
6.75 6.70 – 6.78 .2657 .2638 – .2669 123259
123523
123479		 UM10W-675
UM10T-675
UM10V-675		 5.3
13.9
5.3		 .21
.55
.21		 10.1
9.7
9.1		 .40
.38
.35		 7.4
7.6
9.2		 .29
.29
.36		 5.6
14.1
6.5		 .22
.55
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
6.8 6.75 – 6.83 .2677 .2657 – .2689 123261
123524
123480		 UM10W-680
UM10T-680
UM10V-680		 5.3
13.9
5.3		 .21
.55
.21		 10.1
9.7
9.2		 .40
.38
.36		 7.4
7.6
9.2		 .29
.29
.36		 5.6
14.1
6.5		 .22
.55
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
6.85 6.80 – 6.88 .2697 .2677 – .2709 123263
123525
123481		 UM10W-685
UM10T-685
UM10V-685		 5.3
13.9
5.3		 .21
.55
.21		 10.1
9.8
9.2		 .40
.38
.36		 7.4
7.6
9.2		 .29
.29
.36		 5.6
14.1
6.5		 .22
.55
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
6.9 6.85 – 6.93 .2717 .2697 – .2728 123265
123526
123482		 UM10W-690
UM10T-690
UM10V-690		 5.3
13.9
5.3		 .21
.55
.21		 10.1
9.8
9.3		 .40
.38
.36		 7.4
7.5
9.2		 .29
.29
.36		 5.6
14.1
6.5		 .22
.55
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
6.95 6.90 – 6.98 .2736 .2717 – .2748 123269
123528
123484		 UM10W-700
UM10T-700
UM10V-700		 5.4
14
5.4		 .22
.55
.22		 10.1
9.8
9.3		 .40
.38
.36		 7.4
7.5
9.2		 .29
.29
.36		 5.6
14.1
6.5		 .22
.55
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
7 6.95 – 7.03 .2756 .2736 – .2768 123271
123529
123485		 UM10W-705
UM10T-705
UM10V-705		 5.4
14
5.4		 .22
.55
.22		 10.1
9.9
9.4		 .40
.39
.37		 7.4
7.5
9.2		 .29
.29
.36		 5.6
14.1
6.5		 .22
.55
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
7.05 7.00 – 7.08 .2776 .2756 – .2787 123271
123529
123485		 UM10W-705
UM10T-705
UM10V-705		 5.4
14
5.4		 .22
.55
.22		 10.1
9.9
9.4		 .40
.39
.37		 7.4
7.5
9.2		 .29
.29
.36		 5.6
14.1
6.5		 .22
.55
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
7.1 7.05 – 7.13 .2795 .2776 – .2807 123273
123530
123486		 UM10W-710
UM10T-710
UM10V-710		 5.4
14
5.4		 .22
.56
.22		 10.1
10
9.5		 .40
.39
.37		 7.4
7.5
9.2		 .29
.29
.36		 5.6
14.1
6.5		 .22
.55
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
7.15 7.10 – 7.18 .2815 .2795 – .2827 123275
123531
123487		 UM10W-715
UM10T-715
UM10V-715		 5.5
14
5.5		 .22
.56
.22		 10.1
10
9.5		 .40
.39
.37		 7.4
7.5
9.2		 .29
.29
.36		 5.6
14.1
6.5		 .22
.55
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
7.2 7.15 – 7.23 .2835 .2815 – .2846 123277
123532
123488		 UM10W-720
UM10T-720
UM10V-720		 5.5
14
5.5		 .22
.56
.22		 10.1
10.1
9.5		 .40
.39
.37		 7.4
7.5
9.2		 .29
.29
.36		 5.6
14.1
6.5		 .22
.55
.26		 9.9
9.9
9.9		 .38
.39
.39		 15.1
17.1
25.7		 .60
.68
1.01
7.25 7.20 – 7.28 .2854 .2835 – .2866 123533
123489		 UM10T-725
UM10V-725		 14
5.5		 .56
.22		 10.1
9.6		 .39
.37		 7.5
9.2		 .29
.36		 14.1
6.5		 .55
.26		 9.9
9.9		 .38
.39		 17.1
25.7		 .68
1.01
7.3 7.25 – 7.33 .2874 .2854 – .2886 123490 UM10V-730 5.5 .22 9.6 .37 9.2 .36 6.5 .26 9.9 .39 25.7 1.01
7.35 7.30 – 7.38 .2894 .2874 – .2906 123491 UM10V-735 5.6 .22 9.7 .38 9.2 .36 6.5 .26 9.9 .39 25.7 1.01
7.4 7.35 – 7.43 .2913 .2894 – .2925 123492 UM10V-740 5.6 .22 9.7 .38 9.2 .36 6.5 .26 9.9 .39 25.7 1.01
7.45 7.40 – 7.48 .2933 .2913 – .2945 123493 UM10V-745 5.6 .23 9.8 .38 9.2 .36 6.5 .26 9.9 .39 25.7 1.01
7.5 7.45 – 7.53 .2953 .2933 – .2965 123494 UM10V-750 5.6 .23 9.8 .38 9.2 .36 6.5 .26 9.9 .39 25.7 1.01
7.55 7.50 – 7.58 .2972 .2953 – .2984 123495 UM10V-755 5.6 .23 9.9 .38 9.2 .36 6.5 .26 9.9 .39 25.7 1.01
7.6 7.55 – 7.63 .2992 .2972 – .3004 123496 UM10V-760 5.7 .23 9.9 .39 9.2 .36 6.5 .26 9.9 .39 25.7 1.01
7.65 7.60 – 7.68 .3012 .2992 – .3024 123497 UM10V-765 5.7 .23 10 .39 9.2 .36 6.5 .26 9.9 .39 25.7 1.01
7.7 7.65 – 7.73 .3031 .3012 – .3043 123498 UM10V-770 5.7 .23 10 .39 9.2 .36 6.5 .26 9.9 .39 25.7 1.01
7.75 7.70 – 7.78 .3051 .3031 – .3063 123499 UM10V-775 5.8 .23 10 .39 9.2 .36 6.5 .26 9.9 .39 25.7 1.01
7.8 7.75 – 7.83 .3071 .3051 – .3083 123500 UM10V-780 5.8 .23 10.1 .39 9.2 .36 6.5 .26 9.9 .39 25.7 1.01
7.85 7.80 – 7.88 .3091 .3071 – .3102 123501 UM10V-785 5.8 .23 10.1 .39 9.2 .36 6.5 .26 9.9 .39 25.7 1.01
7.9 7.85 – 7.93 .3110 .3091 – .3122 123502 UM10V-790 5.8 .23 10.1 .40 9.2 .36 6.5 .26 9.9 .39 25.7 1.01
7.95 7.90 – 7.98 .3130 .3110 – .3142 123503 UM10V-795 5.9 .23 10.1 .40 9.2 .36 6.5 .26 9.9 .39 25.7 1.01
8 7.95 – 8.03 .3150 .3130 – .3161 123504 UM10V-800 5.9 .24 10.1 .40 9.2 .36 6.5 .26 9.9 .39 25.7 1.01
8.1 8.00 – 8.08 .3169 .3150 – .3181 123505 UM10V-805 5.9 .24 10.1 .40 9.2 .36 6.5 .26 9.9 .39 25.7 1.01
8.15 8.05 – 8.13 .3189 .3169 – .3201 123506 UM10V-810 5.9 .24 10.1 .40 9.2 .36 6.5 .26 9.9 .39 25.7 1.01
8.2 8.10 – 8.18 .3209 .3189 – .3220 123507 UM10V-815 5.9 .24 10.1 .40 9.2 .36 6.5 .26 9.9 .39 25.7 1.01
8.25 8.15 – 8.23 .3228 .3209 – .3240 123508 UM10V-820 6 .24 10.1 .40 9.2 .36 6.5 .26 9.9 .39 25.7 1.01
8.3 8.20 – 8.28 .3248 .3228 – .3260 123534 UM10V-825 6 .24 10.1 .40 9.2 .36 6.5 .26 9.9 .39 25.7 1.01
8.35 8.25 – 8.33 .3268 .3248 – .3280 123535 UM10V-830 6 .24 10.1 .40 9.2 .36 6.5 .26 9.9 .39 25.7 1.01
8.4 8.30 – 8.38 .3287 .3268 – .3299 123536 UM10V-835 6.1 .24 10.1 .40 9.2 .36 6.5 .26 9.9 .39 25.7 1.01
8.45 8.40 – 8.48 .3327 .3307 – .3339 123538 UM10V-845 6.1 .24 10.1 .40 9.2 .36 6.5 .26 9.9 .39 25.7 1.01
8.5 8.45 – 8.53 .3346 .3327 – .3358 123539 UM10V-850 6.1 .25 10.1 .40 9.3 .36 6.5 .26 9.9 .39 25.7 1.01
8.55 8.50 – 8.58 .3366 .3346 – .3378 123540 UM10V-850 6.1 .25 10.1 .40 9.3 .36 6.5 .26 9.9 .39 25.7 1.01
8.6 8.55 – 8.63 .3386 .3366 – .3398 123541 UM10V-860 6.2 .25 10.1 .40 9.3 .36 6.5 .26 9.9 .39 25.7 1.01
8.65 8.60 – 8.68 .3406 .3386 – .3417 123542 UM10V-865 6.2 .25 10.1 .40 9.3 .36 6.5 .26 9.9 .39 25.7 1.01
8.75 8.70 – 8.78 .3445 .3425 – .3457 123653 UM10V-875 6.3 .25 10.1 .40 9.3 .36 6.5 .26 9.9 .39 25.7 1.01
9 8.95 – 9.03 .3543 .3524 – .3555 123557 UM10V-900 6.4 .26 10.1 .40 9.3 .36 6.5 .26 9.9 .39 25.7 1.01
9.05 9.00 – 9.08 .3563 .3543 – .3575 123558 UM10V-905 6.4 .26 10.1 .40 9.3 .36 6.5 .26 9.9 .39 25.7 1.01

MASA TOOL MICROCONIC OVERGRIP COLLET UM10 VERSIONS

OVERGRIP COLLET UM10 W-TYPE

  • Available from Ø0.45 – 7.2 mm
  • Diameter difference of approx. 4 mm can be overgripped
  • Clamping surface length of approx. 1x D
  • Compatible with all M10 cartridges

Click on the product image to get 360° view

OVERGRIP COLLET UM10 T-TYPE

  • Available from Ø1.5 – 7.2 mm
  • Clamping surface length of approx. 2x – 3x D
  • Compatible with all M10 cartridges

Click on the product image to get 360° view

OVERGRIP COLLET UM10 V-TYPE

  • Available from Ø4.2 – 8.2 mm
  • Ideal for workpieces with larger diameter
  • Compatible with all M10 cartridges

Click on the product image to get 360° view

MASA TOOL MICROCONIC OVERGRIP COLLETS UM5

MASA TOOL Microconic overgrip collets are designed and manufactured to offer maximum precision and reliability.
By using them, you improve the processing quality and precision of your machines considerably.

USE OF MASA TOOL MICROCONIC OVERGRIP COLLETS UM5

The overgrip collets are used in the sub spindle when the diameter to be clamped is smaller than the diameter to be overgripped. With the overgrip collets, a diameter difference of up to 4 mm can be overgripped, thus reduces cycle time. As standard, they have a runout of less than 5µ and are always supplied with an ejection guide sleeve. The microconic overgrip collets are available in three versions.

D Outside diameter
L Total length
K Taper angle
F Shape
MASA TOOL Microconic Overgrip Collets UM 5 - © Schlenker Spannwerkzeuge

ØA Bestell-Nr. Bezeichnung B ØG max ØC1 D1 ØC2 D2
mm inch mm inch mm inch mm inch mm inch mm inch mm inch
0.2 0.175 – 0.215 .0079 .0069 – .0085 124558 UM5W-20 2.1 .09 4 .15 3.8 .15 3.9 .15 5.3 .21 16.2 .64
0.23 0.20 – 0.24 .0089 .0079 – .0094 124559 UM5W-22 2.1 .09 4 .15 3.8 .15 3.9 .15 5.3 .21 16.2 .64
0.25 0.225 – 0.265 .0098 .0089 – .0104 124560 UM5W-25 2.1 .09 4 .15 3.8 .15 3.9 .15 5.3 .21 16.2 .64
0.28 0.25 – 0.29 .0108 .0098 – .0114 124561 UM5W-27 2.1 .09 4 .15 3.8 .15 3.9 .15 5.3 .21 16.2 .64
0.3 0.275 – 0.315 .0118 .0108 – .0124 124562 UM5W-30 2.1 .09 4 .15 3.8 .15 3.9 .15 5.3 .21 16.2 .64
0.33 0.30 – 0.34 .0128 .0118 – .0134 124563 UM5W-32 2.1 .09 4 .15 3.8 .15 3.9 .15 5.3 .21 16.2 .64
0.35 0.325 – 0.365 .0138 .0128 – .0144 124564 UM5W-35 2.1 .09 4.1 .15 3.8 .15 3.9 .15 5.3 .21 16.2 .64
0.38 0.35 – 0.39 .0148 .0138 – .0154 124565 UM5W-37 2.1 .09 4 .15 3.9 .15 3.9 .15 5.3 .21 16.2 .64
0.4 0.375 – 0.415 .0157 .0148 – .0163 124566 UM5W-40 2.1 .09 4.1 .15 3.9 .15 3.9 .15 5.3 .21 16.2 .64
0.43 0.40 – 0.44 .0167 .0157 – .0173 124567 UM5W-42 2.2 .09 4.1 .16 3.9 .15 3.9 .15 5.3 .21 16.2 .64
0.45 0.425 – 0.465 .0177 .0167 – .0183 124568 UM5W-45 2.2 .09 4.1 .16 3.9 .15 3.9 .15 5.3 .21 16.2 .64
0.48 0.45 – 0.49 .0187 .0177 – .0193 124569 UM5W-47 2.2 .09 4.1 .16 3.9 .15 3.9 .15 5.3 .21 16.2 .64
0.5 0.475 – 0.515 .0197 .0187 – .0203 124570 UM5W-50 2.2 .09 4.1 .16 3.9 .15 3.9 .15 5.3 .21 16.2 .64
0.53 0.50 – 0.54 .0207 .0197 – .0213 124571 UM5W-52 2.2 .09 4.1 .16 3.9 .15 3.9 .15 5.3 .21 16.2 .64
0.55 0.525 – 0.565 .0217 .0207 – .0222 124572 UM5W-55 2.2 .09 4.1 .16 3.9 .15 3.9 .15 5.3 .21 16.2 .64
0.57 0.55 – 0.59 .0226 .0217 – .0232 124573 UM5W-57 2.2 .09 4.2 .16 3.9 .15 3.9 .15 5.3 .21 16.2 .64
0.6 0.575 – 0.615 .0236 .0226 – .0242 124574 UM5W-60 2.2 .09 4.2 .16 3.9 .15 3.9 .15 5.3 .21 16.2 .64
0.63 0.60 – 0.64 .0246 .0236 – .0252 124575 UM5W-62 2.3 .09 4.2 .16 3.9 .15 3.9 .15 5.3 .21 16.2 .64
0.65 0.625 – 0.665 .0256 .0246 – .0262 124576 UM5W-65 2.3 .09 4.2 .16 3.9 .15 3.9 .15 5.3 .21 16.2 .64
0.65 0.625 – 0.665 .0256 .0246 – .0262 124576 UM5W-65 2.3 .09 4.2 .16 3.9 .15 3.9 .15 5.3 .21 16.2 .64
0.68 0.65 – 0.69 .0266 .0256 – .0272 124577 UM5W-67 2.3 .09 4.2 .16 3.9 .15 3.9 .15 5.3 .21 16.2 .64
0.7 0.675 – 0.715 .0276 .0266 – .0281 124578 UM5W-70 2.3 .09 4.2 .16 3.9 .15 3.9 .15 5.3 .21 16.2 .64
0.73 0.70 – 0.74 .0285 .0276 – .0291 124579 UM5W-72 2.3 .10 4.2 .16 3.9 .15 3.9 .15 5.3 .21 16.2 .64
0.75 0.725 – 0.765 .0295 .0285 – .0301 124580 UM5W-75 2.3 .10 4.3 .16 3.9 .15 3.9 .15 5.3 .21 16.2 .64
0.78 0.74 – 0.80 .0305 .0291 – .0315 124581 UM5W-77 2.3 .10 4.3 .16 3.9 .15 3.9 .15 5.3 .21 16.2 .64
0.8 0.765 – 0.825 .0315 .0301 – .0325 124582 UM5W-80 2.3 .10 4.3 .16 3.9 .15 3.9 .15 5.3 .21 16.2 .64
0.83 0.79 – 0.85 .0325 .0311 – .0335 124583 UM5W-82 2.3 .10 4.3 .16 3.9 .15 3.9 .15 5.3 .21 16.2 .64
0.85 0.815 – 0.875 .0335 .0321 – .0344 124584 UM5W-85 2.4 .10 4.3 .17 3.9 .15 3.9 .15 5.3 .21 16.2 .64
0.88 0.84 – 0.90 .0344 .0331 – .0354 124585 UM5W-87 2.3 .10 4.3 .17 3.9 .15 3.9 .15 5.3 .21 16.2 .64
0.9 0.865 – 0.925 .0354 .0341 – .0364 124586
124709		 UM5W-90
UM5T-90		 2.4
4.3		 .10
.18		 4.3
4		 .16
.15		 3.9
3.9		 .15
.15		 3.9
5		 .15
.20		 5.3
5.3		 .21
.21		 16.2
21.8		 .64
.86
0.93 0.89 – 0.95 .0364 .0350 – .0374 124587
124710		 UM5W-92
UM5T-92		 2.4
4.3		 .10
.18		 4.3
4		 .17
.15		 3.9
3.9		 .15
.15		 3.9
5		 .15
.20		 5.3
5.3		 .21
.21		 16.2
21.8		 .64
.86
0.95 0.915 – 0.975 .0374 .0360 – .0384 124588
124711		 UM5W-95
UM5T-95		 2.4
4.3		 .10
.18		 4.3
4		 .17
.15		 3.9
3.9		 .15
.15		 3.9
5		 .15
.20		 5.3
5.3		 .21
.21		 16.2
21.8		 .64
.86
0.98 0.94 – 1.00 .0384 .0370 – .0394 124589
124712		 UM5W-97
UM5T-97		 2.4
4.3		 .10
.18		 4.4
4.1		 .17
.15		 3.9
3.9		 .15
.15		 3.9
5		 .15
.20		 5.3
5.3		 .21
.21		 16.2
21.8		 .64
.86
1 0.965 – 1.025 .0394 .0380 – .0404 124590
124713		 UM5W-100
UM5T-100		 2.4
4.4		 .10
.18		 4.4
4.1		 .17
.16		 3.9
3.9		 .15
.15		 3.9
5		 .15
.20		 5.3
5.3		 .21
.21		 16.2
21.8		 .64
.86
1.02 0.99 – 1.05 .0404 .0390 – .0413 124591
124714		 UM5W-102
UM5T-102		 2.4
4.4		 .10
.18		 4.4
4.1		 .17
.16		 3.9
3.9		 .15
.15		 3.9
5		 .15
.20		 5.3
5.3		 .21
.21		 16.2
21.8		 .64
.86
1.05 1.015 – 1.075 .0413 .0400 – .0423 124592
124715		 UM5W-105
UM5T-105		 2.4
4.4		 .10
.18		 4.4
4.1		 .17
.16		 3.9
3.9		 .15
.15		 3.9
5		 .15
.20		 5.3
5.3		 .21
.21		 16.2
21.8		 .64
.86
1.08 1.04 – 1.10 .0423 .0409 – .0433 124593
124716		 UM5W-107
UM5T-107		 2.4
4.4		 .10
.18		 4.4
4.1		 .17
.16		 3.9
3.9		 .15
.15		 3.9
5		 .15
.20		 5.3
5.3		 .21
.21		 16.2
21.8		 .64
.86
1.1 1.065 – 1.125 .0433 .0419 – .0443 124594
124717		 UM5W-110
UM5T-110		 2.5
4.4		 .10
.18		 4.4
4.1		 .17
.16		 3.9
3.9		 .15
.15		 3.9
5		 .15
.20		 5.3
5.3		 .21
.21		 16.2
21.8		 .64
.86
1.13 1.09 – 1.15 .0443 .0429 – .0453 124595
124718		 UM5W-112
UM5T-112		 2.5
4.4		 .10
.18		 4.5
4.2		 .17
.16		 3.9
3.9		 .15
.15		 3.9
5		 .15
.20		 5.3
5.3		 .21
.21		 16.2
21.8		 .64
.86
1.15 1.115 – 1.175 .0453 .0439 – .0463 124596
124719		 UM5W-115
UM5T-115		 2.5
4.4		 .10
.18		 4.5
4.2		 .17
.16		 3.9
3.9		 .15
.15		 3.9
5		 .15
.20		 5.3
5.3		 .21
.21		 16.2
21.8		 .64
.86
1.18 1.14 – 1.20 .0463 .0449 – .0472 124597
124720		 UM5W-117
UM5T-117		 2.5
4.4		 .10
.18		 4.5
4.2		 .17
.16		 3.9
3.9		 .15
.15		 3.9
5		 .15
.20		 5.3
5.3		 .21
.21		 16.2
21.8		 .64
.86
1.2 1.165 – 1.225 .0472 .0459 – .0482 124598
124721		 UM5W-120
UM5T-120		 2.5
4.4		 .10
.18		 4.5
4.2		 .17
.16		 3.9
3.9		 .15
.15		 3.9
5		 .15
.20		 5.3
5.3		 .21
.21		 16.2
21.8		 .64
.86
1.23 1.19 – 1.25 .0482 .0469 – .0492 124599
124722		 UM5W-122
UM5T-122		 2.5
4.4		 .10
.18		 4.5
4.2		 .17
.16		 3.9
3.9		 .15
.15		 3.9
5		 .15
.20		 5.3
5.3		 .21
.21		 16.2
21.8		 .64
.86
1.25 1.215 – 1.275 .0492 .0478 – .0502 124600
124723		 UM5W-125
UM5T-125		 2.5
4.4		 .10
.18		 4.6
4.3		 .17
.16		 3.9
3.9		 .15
.15		 3.9
5		 .15
.20		 5.3
5.3		 .21
.21		 16.2
21.8		 .64
.86
1.27 1.24 – 1.30 .0502 .0488 – .0512 124601
124724		 UM5W-127
UM5T-127		 2.6
4.4		 .11
.18		 4.6
4.3		 .17
.16		 3.9
3.9		 .15
.15		 3.9
5		 .15
.20		 5.3
5.3		 .21
.21		 16.2
21.8		 .64
.86
1.3 1.265 – 1.325 .0512 .0498 – .0522 124602
124725		 UM5W-130
UM5T-130		 2.6
4.4		 .11
.18		 4.6
4.3		 .18
.16		 3.9
3.9		 .15
.15		 3.9
5		 .15
.20		 5.3
5.3		 .21
.21		 16.2
21.8		 .64
.86
1.33 1.29 – 1.35 .0522 .0508 – .0531 124603
124726		 UM5W-132
UM5T-132		 2.6
4.4		 .11
.18		 4.6
4.3		 .18
.16		 3.9
3.9		 .15
.15		 3.9
5		 .15
.20		 5.3
5.3		 .21
.21		 16.2
21.8		 .64
.86
1.35 1.315 – 1.375 .0531 .0518 – .0541 124604
124727		 UM5W-135
UM5T-135		 2.6
4.4		 .11
.18		 4.6
4.3		 .18
.16		 3.9
3.9		 .15
.15		 3.9
5		 .15
.20		 5.3
5.3		 .21
.21		 16.2
21.8		 .64
.86
1.38 1.34 – 1.40 .0541 .0528 – .0551 124605
124728		 UM5W-137
UM5T-137		 2.6
4.4		 .11
.18		 4.6
4.3		 .18
.16		 3.9
3.9		 .15
.15		 3.9
5		 .15
.20		 5.3
5.3		 .21
.21		 16.2
21.8		 .64
.86
1.4 1.365 – 1.425 .0551 .0537 – .0561 124606
124729		 UM5W-140
UM5T-140		 2.6
4.4		 .11
.18		 4.6
4.3		 .18
.16		 3.9
3.9		 .15
.15		 3.9
5		 .15
.20		 5.3
5.3		 .21
.21		 16.2
21.8		 .64
.86
1.43 1.39 – 1.45 .0561 .0547 – 0571 124607
124730		 UM5W-142
UM5T-142		 2.6
4.4		 .11
.18		 4.6
4.3		 .18
.17		 3.9
3.9		 .15
.15		 3.9
5		 .15
.20		 5.3
5.3		 .21
.21		 16.2
21.8		 .64
.86
1.45 1.415 – 1.475 .0571 .0557 – .0581 124608
124731		 UM5W-145
UM5T-145		 2.6
4.4		 .11
.18		 4.6
4.3		 .18
.17		 3.9
3.9		 .15
.15		 3.9
5		 .15
.20		 5.3
5.3		 .21
.21		 16.2
21.8		 .64
.86
1.48 1.44 – 1.50 .0581 .0567 – .0591 124609
124732		 UM5W-147
UM5T-147		 2.6
4.4		 .11
.18		 4.6
4.3		 .18
.17		 3.9
3.9		 .15
.15		 3.9
5		 .15
.20		 5.3
5.3		 .21
.21		 16.2
21.8		 .64
.86
1.5 1.465 – 1.525 .0591 .0577 – .0600 124610
124733		 UM5W-150
UM5T-150		 2.6
4.5		 .11
.18		 4.6
4.3		 .18
.17		 3.9
3.9		 .15
.15		 3.9
5		 .15
.20		 5.3
5.3		 .21
.21		 16.2
21.8		 .64
.86
1.53 1.49 – 1.55 .0600 .0587 – .0610 124611
124734		 UM5W-152
UM5T-152		 2.7
4.5		 .11
.18		 4.6
4.3		 .18
.17		 3.9
3.9		 .15
.15		 3.9
5		 .15
.20		 5.3
5.3		 .21
.21		 16.2
21.8		 .64
.86
1.55 1.515 – 1.575 .0610 .0596 – .0620 124612
124735		 UM5W-155
UM5T-155		 2.7
4.5		 .11
.18		 4.6
4.3		 .18
.17		 3.9
3.9		 .15
.15		 3.9
5		 .15
.20		 5.3
5.3		 .21
.21		 16.2
21.8		 .64
.86
1.58 1.54 – 1.60 .0620 .0606 – .0630 124613
124736		 UM5W-157
UM5T-157		 2.7
4.5		 .11
.18		 4.7
4.5		 .18
.17		 3.9
3.9		 .15
.15		 3.9
5		 .15
.20		 5.3
5.3		 .21
.21		 16.2
21.8		 .64
.86
1.6 1.54 – 1.60 .0620 .0606 – .0630 124613
124736		 UM5W-157
UM5T-157		 2.7
4.5		 .11
.18		 4.7
4.5		 .18
.17		 3.9
3.9		 .15
.15		 3.9
5		 .15
.20		 5.3
5.3		 .21
.21		 16.2
21.8		 .64
.86
1.63 1.59 – 1.65 .0640 .0626 – .0650 124615
124738		 UM5W-162
UM5T-162		 2.7
4.8		 .11
.19		 4.8
4.5		 .18
.17		 3.9
3.9		 .15
.15		 3.9
5.3		 .15
.21		 5.3
5.3		 .21
.21		 16.2
21.8		 .64
.86
1.65 1.615 – 1.675 .0650 .0636 – .0659 124616
124739		 UM5W-165
UM5T-165		 2.7
4.8		 .11
.19		 4.8
4.5		 .18
.17		 3.9
3.9		 .15
.15		 3.9
5.3		 .15
.21		 5.3
5.3		 .21
.21		 16.2
21.8		 .64
.86
1.68 1.64 – 1.70 .0659 .0646 – .0669 124617
124740		 UM5W-167
UM5T-167		 2.7
4.8		 .11
.19		 4.8
4.5		 .18
.17		 3.9
3.9		 .15
.15		 3.9
5.3		 .15
.21		 5.3
5.3		 .21
.21		 16.2
21.8		 .64
.86
1.7 1.665 – 1.725 .0669 .0656 – .0679 124618
124741
124832		 UM5W-170
UM5T-170
UM5V-170		 2.8
4.8
2.8		 .11
.19
.11		 4.9
4.6
3.9		 .19
.17
.15		 3.9
3.9
4.9		 .15
.15
.19		 3.9
5.3
4.3		 .15
.21
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
1.73 1.69 – 1.75 .0679 .0665 – .0689 124619
124742
124833		 UM5W-172
UM5T-172
UM5V-172		 2.8
4.8
2.8		 .11
.19
.11		 4.9
4.6
4		 .19
.17
.15		 3.9
3.9
4.9		 .15
.15
.19		 3.9
5.3
4.3		 .15
.21
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
1.75 1.715 – 1.775 .0689 .0675 – .0699 124620
124743
124834		 UM5W-175
UM5T-175
UM5V-175		 2.8
4.8
2.8		 .11
.19
.11		 4.9
4.6
4		 .19
.18
.15		 3.9
3.9
4.9		 .15
.15
.19		 3.9
5.3
4.3		 .15
.21
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
1.78 1.74 – 1.80 .0699 .0685 – .0709 124621
124744
124835		 UM5W-177
UM5T-177
UM5V-177		 2.8
5.1
2.8		 .11
.21
.11		 4.9
4.6
4		 .19
.17
.15		 3.9
3.9
4.9		 .15
.15
.19		 3.9
5.6
4.3		 .15
.22
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
1.8 1.765 – 1.825 .0709 .0695 – .0719 124622
124745
124836		 UM5W-180
UM5T-180
UM5V-180		 2.8
5.1
2.8		 .12
.21
.12		 4.9
4.6
4		 .19
.18
.15		 3.9
3.9
4.9		 .15
.15
.19		 3.9
5.6
4.3		 .15
.22
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
1.83 1.79 – 1.85 .0719 .0705 – .0728 124623
124746
124837		 UM5W-182
UM5T-182
UM5V-182		 2.8
5.1
2.8		 .12
.21
.12		 5
4.6
4		 .19
.18
.15		 3.9
3.9
4.9		 .15
.15
.19		 3.9
5.6
4.3		 .15
.22
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
1.85 1.815 – 1.875 .0728 .0715 – .0738 124624
124747
124838		 UM5W-185
UM5T-185
UM5V-185		 2.8
5.1
2.8		 .12
.21
.12		 5
4.6
4.1		 .19
.18
.15		 3.9
3.9
4.9		 .15
.15
.19		 3.9
5.6
4.3		 .15
.22
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
1.88 1.84 – 1.90 .0738 .0724 – .0748 124625
124748
124839		 UM5W-187
UM5T-187
UM5V-187		 2.8
5.4
2.8		 .12
.21
.12		 5
4.6
4.1		 .19
.18
.16		 3.9
3.9
4.9		 .15
.15
.19		 3.9
5.8
4.3		 .15
.23
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
1.9 1.865 – 1.925 .0748 .0734 – .0758 124626
124749
124840		 UM5W-190
UM5T-190
UM5V-190		 2.9
5.4
2.9		 .12
.21
.12		 5
4.6
4.1		 .19
.18
.16		 3.9
3.9
4.9		 .15
.15
.19		 3.9
5.8
4.3		 .15
.23
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
1.93 1.89 – 1.95 .0758 .0744 – .0768 124627
124750
124841		 UM5W-192
UM5T-192
UM5V-192		 2.9
5.4
2.9		 .12
.22
.12		 5
4.7
4.1		 .19
.18
.16		 3.9
3.9
4.9		 .15
.15
.19		 3.9
5.8
4.3		 .15
.23
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
1.95 1.915 – 1.975 .0768 .0754 – .0778 124628
124751
124842		 UM5W-195
UM5T-195
UM5V-195		 2.9
5.4
2.9		 .12
.22
.12		 5.1
4.7
4.2		 .19
.18
.16		 3.9
3.9
4.9		 .15
.15
.19		 3.9
5.8
4.3		 .15
.23
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
1.98 1.94 – 2.00 .0778 .0764 – .0787 124629
124752
124843		 UM5W-197
UM5T-197
UM5V-197		 2.9
5.4
2.9		 .12
.22
.12		 5.1
4.7
4.2		 .20
.18
.16		 3.9
3.9
4.9		 .15
.15
.19		 3.9
5.8
4.3		 .15
.23
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2 1.965 – 2.025 .0787 .0774 – .0797 124630
124753
124844		 UM5W-200
UM5T-200
UM5V-200		 2.9
5.4
2.9		 .12
.22
.12		 5.1
4.7
4.2		 .20
.18
.16		 3.9
3.9
4.9		 .15
.15
.19		 3.9
5.8
4.3		 .15
.23
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.03 1.99 – 2.05 .0797 .0783 – .0807 124631
124754
124845		 UM5W-202
UM5T-202
UM5V-202		 2.9
5.4
2.9		 .12
.22
.12		 5.1
4.7
4.2		 .20
.18
.16		 3.9
3.9
4.9		 .15
.15
.19		 3.9
5.8
4.3		 .15
.23
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.05 2.015 – 2.075 .0807 .0793 – .0817 124632
124755
124846		 UM5W-205
UM5T-205
UM5V-205		 2.9
5.4
2.9		 .12
.22
.12		 5.1
4.8
4.2		 .20
.18
.16		 3.9
3.9
4.9		 .15
.15
.19		 3.9
5.8
4.3		 .15
.23
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.08 2.04 – 2.10 .0817 .0803 – .0827 124633
124756
124847		 UM5W-207
UM5T-207
UM5V-207		 2.9
5.8
2.9		 .12
.23
.12		 5.1
4.7
4.2		 .19
.18
.16		 3.9
3.9
4.9		 .15
.15
.19		 3.9
6.2
4.3		 .15
.24
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.1 2.065 – 2.125 .0827 .0813 – .0837 124634
124757
124848		 UM5W-210
UM5T-210
UM5V-210		 2.9
5.8
2.9		 .12
.23
.12		 5.1
4.7
4.2		 .20
.18
.16		 3.9
3.9
4.9		 .15
.15
.19		 3.9
6.2
4.3		 .15
.24
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.13 2.09 – 2.15 .0837 .0823 – .0846 124635
124758
124849		 UM5W-212
UM5T-212
UM5V-212		 2.9
5.8
2.9		 .12
.23
.12		 5.1
4.7
4.2		 .20
.18
.16		 3.9
3.9
4.9		 .15
.15
.19		 3.9
6.2
4.3		 .15
.24
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.15 2.115 – 2.175 .0846 .0833 – .0856 124636
124759
124850		 UM5W-215
UM5T-215
UM5V-215		 2.9
5.8
2.9		 .12
.23
.12		 5.1
4.7
4.2		 .20
.18
.16		 3.9
3.9
4.9		 .15
.15
.19		 3.9
6.2
4.3		 .15
.24
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.17 2.14 – 2.20 .0856 .0843 – .0866 124637
124760
124851		 UM5W-217
UM5T-217
UM5V-217		 3
5.8
3		 .12
.23
.12		 5.2
4.7
4.3		 .20
.18
.16		 3.9
3.9
4.9		 .15
.15
.19		 3.9
6.2
4.3		 .15
.24
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.2 2.165 – 2.225 .0866 .0852 – .0876 124638
124761
124852		 UM5W-220
UM5T-220
UM5V-220		 3
5.8
3		 .12
.23
.12		 5.2
4.7
4.3		 .20
.18
.16		 3.9
3.9
4.9		 .15
.15
.19		 3.9
6.2
4.3		 .15
.24
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.23 2.19 – 2.25 .0876 .0862 – .0886 124639
124762
124853		 UM5W-222
UM5T-222
UM5V-222		 3
6.1
3		 ..12
.24
.12		 5.2
4.8
4.3		 .20
.18
.17		 3.9
3.9
4.9		 .15
.15
.19		 3.9
6.4
4.3		 .15
.25
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.25 2.215 – 2.275 .0886 .0872 – .0896 124640
124763
124854		 UM5W-225
UM5T-225
UM5V-225		 3
6.1
3		 ..12
.24
.12		 5.2
4.8
4.3		 .20
.18
.17		 3.9
3.9
4.9		 .15
.15
.19		 3.9
6.4
4.3		 .15
.25
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.28 2.24 – 2.30 .0896 .0882 – .0906 124641
124764
124855		 UM5W-227
UM5T-227
UM5V-227		 3
6.1
3		 ..12
.24
.12		 5.2
4.8
4.3		 .20
.18
.17		 3.9
3.9
4.9		 .15
.15
.19		 3.9
6.4
4.3		 .15
.25
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.3 2.265 – 2.325 .0906 .0892 – .0915 124642
124765
124856		 UM5W-230
UM5T-230
UM5V-230		 3
6.1
3		 .12
.24
.12		 5.3
4.8
4.4		 .20
.18
.17		 3.9
3.9
4.9		 .15
.15
.19		 3.9
6.4
4.3		 .15
.25
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.33 2.29 – 2.35 .0915 .0902 – .0925 124643
124766
124857		 UM5W-232
UM5T-232
UM5V-232		 3
6.1
3		 .12
.24
.12		 5.3
4.8
4.4		 .20
.19
.17		 3.9
3.9
4.9		 .15
.15
.19		 3.9
6.4
4.3		 .15
.25
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.35 2.315 – 2.375 .0925 .0911 – .0935 124644
124767
124858		 UM5W-235
UM5T-235
UM5V-235		 3.1
6.1
3.1		 .13
.24
.13		 5.3
4.9
4.4		 .20
.19
.17		 3.9
3.9
4.9		 .15
.15
.19		 3.9
6.4
4.3		 .15
.25
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.38 2.34 – 2.40 .0935 .0921 – .0945 124645
124768
124859		 UM5W-237
UM5T-237
UM5V-237		 3.1
6.5
3.1		 .13
.26
.13		 5.4
4.9
4.5		 .21
.19
.17		 3.9
3.9
4.9		 .15
.15
.19		 3.9
6.8
4.3		 .15
.25
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.4 2.365 – 2.425 .0945 .0931 – .0955 124646
124769
124860		 UM5W-240
UM5T-240
UM5V-240		 3.1
6.5
3.1		 .13
.26
.13		 5.4
4.9
4.5		 .21
.19
.17		 3.9
3.9
4.9		 .15
.15
.19		 3.9
6.8
4.3		 .15
.25
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.42 2.39 – 2.45 .0955 .0941 – .0965 124647
124770
124861		 UM5W-242
UM5T-242
UM5V-242		 3.1
6.5
3.1		 .13
.26
.13		 5.4
4.9
4.5		 .21
.19
.17		 3.9
3.9
4.9		 .15
.15
.19		 3.9
6.8
4.3		 .15
.25
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.45 2.415 – 2.475 .0965 .0951 –.0974 124648
124771
124862		 UM5W-245
UM5T-245
UM5V-245		 3.1
6.5
3.1		 .13
.26
.13		 5.4
4.9
4.6		 .21
.19
.17		 3.9
3.9
4.9		 .15
.15
.19		 3.9
6.8
4.3		 .15
.25
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.48 2.44 – 2.50 .0974 .0961 – .0984 124649
124772
124863		 UM5W-247
UM5T-247
UM5V-247		 3.2
6.5
3.2		 .13
.26
.13		 5.5
5
4.6		 .21
.19
.18		 3.9
3.9
4.9		 .15
.15
.19		 3.9
6.8
4.3		 .15
.25
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.5 2.465 – 2.525 .0984 .0970 – .0994 124650
124773
124864		 UM5W-250
UM5T-250
UM5V-250		 3.2
6.7
3.2		 .13
.27
.13		 5.5
4.9
4.6		 .21
.19
.18		 3.9
3.9
4.9		 .15
.15
.19		 3.9
7
4.3		 .15
.28
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.53 2.49 – 2.55 .0994 .0980 – .1004 124651
124774
124865		 UM5W-252
UM5T-252
UM5V-252		 3.2
6.7
3.2		 .13
.27
.13		 5.5
4.9
4.6		 .21
.19
.18		 3.9
3.9
4.9		 .15
.15
.19		 3.9
7
4.3		 .15
.28
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.55 2.515 – 2.575 .1004 .0990 – .1014 124652
124775
124866		 UM5W-255
UM5T-255
UM5V-255		 3.2
6.8
3.2		 .13
.27
.13		 5.5
5
4.6		 .21
.19
.18		 3.9
3.9
4.9		 .15
.15
.19		 3.9
7
4.3		 .15
.28
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.58 2.54 – 2.60 .1014 .1000 – .1024 124653
124776
124867		 UM5W-257
UM5T-257
UM5V-257		 3.2
6.8
3.2		 .13
.27
.13		 5.5
5
4.6		 .22
.19
.18		 3.9
3.9
4.9		 .15
.15
.19		 3.9
7
4.3		 .15
.28
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.6 2.565 – 2.625 .1024 .1010 – .1033 124654
124777
124868		 UM5W-260
UM5T-260
UM5V-260		 3.2
6.8
3.2		 .13
.27
.13		 5.5
5
4.7		 .22
.19
.18		 3.9
3.9
4.9		 .15
.15
.19		 3.9
7
4.3		 .15
.28
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.63 2.59 – 2.65 .1033 .1020 – .1043 124655
124778
124869		 UM5W-262
UM5T-262
UM5V-262		 3.2
6.8
3.2		 .13
.27
.13		 5.5
5
4.7		 .22
.19
.18		 3.9
3.9
4.9		 .15
.15
.19		 3.9
7
4.3		 .15
.28
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.65 2.615 – 2.675 .1043 .1030 – .1053 124656
124779
124870		 UM5W-265
UM5T-265
UM5V-265		 3.2
6.8
3.2		 .13
.27
.13		 5.5
5.1
4.7		 .22
.19
.18		 3.9
3.9
4.9		 .15
.15
.19		 3.9
7
4.3		 .15
.28
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.68 2.64 – 2.70 .1053 .1039 – .1063 124657
124780
124871		 UM5W-267
UM5T-267
UM5V-267		 3.3
7.1
3.3		 .13
.29
.13		 5.5
5
4.7		 .22
.19
.18		 3.9
3.9
4.9		 .15
.15
.19		 3.9
7.4
4.3		 .15
.29
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.7 2.665 – 2.725 .1063 .1049 – .1073 124658
124781
124872		 UM5W-270
UM5T-270
UM5V-270		 3.3
7.1
3.3		 .13
.29
.13		 5.5
5.1
4.8		 .22
.19
.18		 3.9
3.9
4.9		 .15
.15
.19		 3.9
7.4
4.3		 .15
.29
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.73 2.69 – 2.75 .1073 .1059 – .1083 124659
124782
124873		 UM5W-272
UM5T-272
UM5V-272		 3.3
7.1
3.3		 .13
.29
.13		 5.5
5.1
4.8		 .22
.19
.18		 3.9
3.9
4.9		 .15
.15
.19		 3.9
7.4
4.3		 .15
.29
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.75 2.715 – 2.775 .1083 .1069 – .1093 124660
124783
124874		 UM5W-275
UM5T-275
UM5V-275		 3.3
7.2
3.3		 .13
.29
.13		 5.5
5.1
4.8		 .22
.20
.18		 3.9
3.9
4.9		 .15
.15
.19		 3.9
7.4
4.3		 .15
.29
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.78 2.74 – 2.80 .1093 .1079 – .1102 124661
124784
124875		 UM5W-277
UM5T-277
UM5V-277		 3.3
7.3
3.3		 .13
.29
.13		 5.5
5.1
4.8		 .22
.20
.18		 3.9
3.9
4.9		 .15
.15
.19		 3.9
7.4
4.3		 .15
.29
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.8 2.765 – 2.825 .1102 .1089 – .1112 124662
124785
124876		 UM5W-280
UM5T-280
UM5V-280		 3.3
7.3
3.3		 .13
.29
.13		 5.5
5.1
4.8		 .22
.20
.19		 3.9
3.9
4.9		 .15
.15
.19		 3.9
7.4
4.3		 .15
.29
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.83 2.79 – 2.85 .1112 .1098 – .1122 124663
124786
124877		 UM5W-282
UM5T-282
UM5V-282		 3.3
7.3
3.3		 .14
.29
.14		 5.5
5.1
4.9		 .22
.20
.19		 3.9
3.9
4.9		 .15
.15
.19		 3.9
7.5
4.3		 .15
.30
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.85 2.815 – 2.875 .1122 .1108 – .1132 124664
124787
124878		 UM5W-285
UM5T-285
UM5V-285		 3.3
7.3
3.3		 .14
.29
.14		 5.5
5.2
4.9		 .22
.20
.19		 3.9
3.9
4.9		 .15
.15
.19		 3.9
7.4
4.3		 .15
.30
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.88 2.84 – 2.90 .1132 .1118 – .1142 124665
124788
124879		 UM5W-287
UM5T-287
UM5V-287		 3.3
7.3
3.3		 .14
.29
.14		 5.5
5.2
4.9		 .22
.20
.19		 3.9
3.9
4.9		 .15
.15
.19		 3.9
7.4
4.3		 .15
.30
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.9 2.865 – 2.925 .1142 .1128 – .1152 124666
124789
124880		 UM5W-290
UM5T-290
UM5V-290		 3.4
7.3
3.4		 .14
.29
.14		 5.5
5.2
4.9		 .22
.20
.19		 3.9
3.9
4.9		 .15
.15
.19		 3.9
7.4
4.3		 .15
.30
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.93 2.89 – 2.95 .1152 .1138 – .1161 124667
124790
124881		 UM5W-292
UM5T-292
UM5V-292		 3.4
7.8
3.4		 .14
.31
.14		 5.5
5.2
5		 .22
.20
.19		 3.9
3.9
4.9		 .15
.15
.19		 3.9
8
4.3		 .15
.32
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.95 2.915 – 2.975 .1161 .1148 – .1171 124668
124791
124882		 UM5W-295
UM5T-295
UM5V-295		 3.4
7.8
3.4		 .14
.31
.14		 5.5
5.2
5		 .22
.20
.19		 3.9
3.9
4.9		 .15
.15
.19		 3.9
8
4.3		 .15
.32
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
2.98 2.94 – 3.00 .1171 .1157 – .1181 124669
124792
124883		 UM5W-297
UM5T-297
UM5V-297		 3.4
7.8
3.4		 .14
.31
.14		 5.5
5.2
5		 .22
.20
.19		 3.9
3.9
4.9		 .15
.15
.19		 3.9
8
4.3		 .15
.32
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3 2.965 – 3.025 .1181 .1167 – .1191 124670
124793
124884		 UM5W-300
UM5T-300
UM5V-300		 3.4
7.8
3.4		 .14
.31
.14		 5.5
5.2
5		 .22
.20
.19		 3.9
3.9
4.9		 .15
.15
.19		 3.9
8
4.3		 .15
.32
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.03 2.99 – 3.05 .1191 .1177 – .1201 124671
124794
124885		 UM5W-302
UM5T-302
UM5V-302		 3.4
7.8
3.4		 .14
.31
.14		 5.5
5.3
5.1		 .22
.20
.19		 3.9
3.9
4.9		 .15
.15
.19		 3.9
8
4.3		 .15
.32.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.05 3.015 – 3.075 .1201 .1187 – .1211 124672
124795
124886		 UM5W-305
UM5T-305
UM5V-305		 3.4
7.8
3.4		 .14
.31
.14		 5.5
5.3
5.1		 .22
.20
.19		 3.9
3.9
4.9		 .15
.15
.19		 3.9
8
4.3		 .15
.32
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.08 3.04 – 3.10 .1211 .1197 – .1220 124673
124796
124887		 UM5W-307
UM5T-307
UM5V-307		 3.5
7.8
3.5		 .14
.31
.14		 5.5
5.3
5.1		 .22
.20
.20		 3.9
3.9
4.9		 .15
.15
.19		 3.9
8
4.3		 .15
.32
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.1 3.065 – 3.125 .1220 .1207 – .1230 124674
124797
124888		 UM5W-310
UM5T-310
UM5V-310		 3.5
7.8
3.5		 .14
.31
.14		 5.5
5.3
5.1		 .22
.20
.20		 3.9
3.9
4.9		 .15
.15
.19		 3.9
8
4.3		 .15
.32
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.13 3.09 – 3.15 .1230 .1217 – .1240 124675
124798
124889		 UM5W-312
UM5T-312
UM5V-312		 3.4
8.1
3.4		 .14
.32
.14		 5.5
5.3
5.1		 .22
.20
.20		 3.9
3.9
4.9		 .15
.15
.19		 3.9
8.3
4.3		 .15
.33
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.15 3.115 – 3.175 .1240 .1226 – .1250 124676
124799
124890		 UM5W-315
UM5T-315
UM5V-315		 3.5
8.1
3.5		 .14
.32
.14		 5.5
5.3
5.1		 .22
.20
.20		 3.9
3.9
4.9		 .15
.15
.19		 3.9
8.3
4.3		 .15
.33
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.18 3.14 – 3.20 .1250 .1236 – .1260 124677
124800
124891		 UM5W-317
UM5T-317
UM5V-317		 3.5
8.1
3.5		 .14
.32
.14		 5.5
5.3
5.1		 .22
.20
.20		 3.9
3.9
4.9		 .15
.15
.19		 3.9
8.3
4.3		 .15
.33
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.2 3.165 – 3.225 .1260 .1246 – .1270 124678
124801
124892		 UM5W-320
UM5T-320
UM5V-320		 3.5
8.1
3.5		 .14
.32
.14		 5.5
5.3
5.2		 .22
.20
.20		 3.9
3.9
4.9		 .15
.15
.19		 3.9
8.3
4.3		 .15
.33
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.23 3.19 – 3.25 .1270 .1266 – .1289 124679
124802
124893		 UM5W-322
UM5T-322
UM5V-322		 3.5
8.2
3.5		 .14
.32
.14		 5.5
5.3
5.2		 .22
.21
.20		 3.9
3.9
4.9		 .15
.15
.19		 3.9
8.3
4.3		 .15
.33
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.25 3.215 – 3.275 .1280 .1266 – .1289 124680
124803
124894		 UM5W-325
UM5T-325
UM5V-325		 3.5
8.4
3.5		 .14
.32
.14		 5.5
5.3
5.2		 .22
.20
.20		 3.9
3.9
4.9		 .15
.15
.19		 3.9
8.6
4.3		 .15
.34
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.28 3.24 – 3.30 .1289 .1276 – .1299 124681
124804
124895		 UM5W-327
UM5T-327
UM5V-327		 3.5
8.4
3.5		 .14
.32
.14		 5.5
5.3
5.2		 .22
.21
.20		 3.9
3.9
4.9		 .15
.15
.19		 3.9
8.6
4.3		 .15
.34
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.3 3.265 – 3.325 .1299 .1285 – .1309 124682
124805
124896		 UM5W-330
UM5T-330
UM5V-330		 3.5
8.4
3.5		 .14
.32
.14		 5.5
5.4
5.2		 .22
.21
.20		 3.9
3.9
4.9		 .15
.15
.19		 3.9
8.6
4.3		 .15
.34
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.33 3.29 – 3.35 .1309 .1295 – .1319 124683
124806
124897		 UM5W-332
UM5T-332
UM5V-332		 3.5
8.4
3.5		 .14
.32
.14		 5.5
5.4
5.2		 .22
.21
.20		 3.9
3.9
4.9		 .15
.15
.19		 3.9
8.6
4.3		 .15
.34
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.35 3.315 – 3.375 .1319 .1305 – .1329 124684
124807
124898		 UM5W-335
UM5T-335
UM5V-335		 3.6
8.4
3.6		 .14
.32
.14		 5.5
5.4
5.3		 .22
.21
.20		 3.9
3.9
4.9		 .15
.15
.19		 3.9
8.6
4.3		 .15
.34
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.38 3.34 – 3.40 .1329 .1315 – .1339 124685
124808
124899		 UM5W-337
UM5T-337
UM5V-337		 3.6
8.4
3.6		 .14
.32
.14		 5.5
5.4
5.3		 .22
.21
.20		 3.9
3.9
4.9		 .15
.15
.19		 3.9
8.6
4.3		 .15
.34
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.4 3.365 – 3.425 .1339 .1325 – .1348 124686
124809
124900		 UM5W-340
UM5T-340
UM5V-340		 3.6
8.4
3.6		 .14
.32
.14		 5.5
5.4
5.3		 .22
.21
.20		 3.9
3.9
4.9		 .15
.15
.19		 3.9
8.6
4.3		 .15
.34
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.43 3.39 – 3.45 .1348 .1335 – .1358 124687
124810
124901		 UM5W-342
UM5T-342
UM5V-342		 3.6
8.7
3.6		 .15
.35
.15		 5.5
5.5
5.3		 .22
.21
.21		 3.9
3.9
4.9		 .15
.15
.19		 3.9
8.8
4.3		 .15
.35
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.45 3.415 – 3.475 .1358 .1344 – .1368 124688
124811
124902		 UM5W-345
UM5T-345
UM5V-345		 3.6
8.7
3.6		 .15
.35
.15		 5.5
5.5
5.4		 .22
.21
.21		 3.9
3.9
4.9		 .15
.15
.19		 3.9
8.8
4.3		 .15
.35
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.48 3.44 – 3.50 .1368 .1354 – .1378 124689
124812
124903		 UM5W-347
UM5T-347
UM5V-347		 3.6
8.7
3.6		 .15
.35
.15		 5.5
5.5
5.4		 .22
.21
.21		 3.9
3.9
4.9		 .15
.15
.19		 3.9
8.8
4.3		 .15
.35
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.5 3.465 – 3.525 .1378 .1364 – .1388 124690
124813
124904		 UM5W-350
UM5T-350
UM5V-350		 3.6
8.7
3.6		 .15
.35
.15		 5.5
5.5
5.4		 .22
.22
.21		 3.9
3.9
4.9		 .15
.15
.19		 3.9
8.8
4.3		 .15
.35
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.53 3.49 – 3.55 .1388 .1374 – .1398 124691
124814
124905		 UM5W-352
UM5T-352
UM5V-352		 3.6
8.7
3.6		 .15
.35
.15		 5.5
5.5
5.4		 .22
.22
.21		 3.9
3.9
4.9		 .15
.15
.19		 3.9
8.8
4.3		 .15
.35
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.55 3.515 – 3.575 .1398 .1384 – .1407 124692
124815
124906		 UM5W-355
UM5T-355
UM5V-355		 3.7
8.7
3.7		 .15
.35
.15		 5.5
5.5
5.5		 .22
.22
.21		 3.9
3.9
4.9		 .15
.15
.19		 3.9
8.8
4.3		 .15
.35
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.58 3.54 – 3.60 .1407 .1394 – .1417 124693
124816
124907		 UM5W-357
UM5T-357
UM5V-357		 3.7
8.7
3.7		 .15
.35
.15		 5.5
5.5
5.5		 .22
.22
.21		 3.9
3.9
4.9		 .15
.15
.19		 3.9
8.8
4.3		 .15
.35
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.6 3.565 – 3.625 .1417 .1404 – .1427 124694
124817
124908		 UM5W-360
UM5T-360
UM5V-360		 3.7
9.1
3.7		 .15
.36
.15		 5.5
5.5
5.5		 .22
.22
.22		 3.9
3.9
4.9		 .15
.15
.19		 3.9
9.2
4.3		 .15
.36
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.63 3.59 – 3.65 .1427 .1413 – .1437 124695
124818
124909		 UM5W-362
UM5T-362
UM5V-362		 3.7
9.2
3.7		 .15
.36
.15		 5.5
5.5
5.5		 .22
.22
.22		 3.9
3.9
4.9		 .15
.15
.19		 3.9
9.2
4.3		 .15
.36
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.65 3.615 – 3.675 .1437 .1423 – .1447 124696
124819
124910		 UM5W-365
UM5T-365
UM5V-365		 3.7
9.2
3.7		 .15
.37
.15		 5.5
5.5
5.5		 .22
.22
.22		 3.9
3.9
4.9		 .15
.15
.19		 3.9
9.2
4.3		 .15
.36
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.68 3.64 – 3.70 .1447 .1433 – .1457 124697
124820
124911		 UM5W-367
UM5T-367
UM5V-367		 3.7
9.2
3.7		 .15
.37
.15		 5.5
5.5
5.5		 .22
.22
.22		 3.9
3.9
4.9		 .15
.15
.19		 3.9
9.2
4.3		 .15
.36
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.7 3.665 – 3.725 .1457 .1443 – .1467 124698
124821
124912		 UM5W-370
UM5T-370
UM5V-370		 3.8
9.2
3.8		 .15
.37
.15		 5.5
5.5
5.5		 .22
.22
.22		 3.9
3.9
4.9		 .15
.15
.19		 3.9
9.2
4.3		 .15
.36
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.73 3.69 – 3.75 .1467 .1453 – .1476 124699
124822
124913		 UM5W-372
UM5T-372
UM5V-372		 3.8
9.4
3.8		 .15
.38
.15		 5.5
5.5
5.5		 .22
.22
.22		 3.9
3.9
4.9		 .15
.15
.19		 3.9
9.5
4.3		 .15
.37
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.75 3.715 – 3.775 .1476 .1463 – .1486 124700
124823
124914		 UM5W-375
UM5T-375
UM5V-375		 3.8
9.4
3.8		 .15
.38
.15		 5.5
5.5
5.5		 .22
.22
.22		 3.9
3.9
4.9		 .15
.15
.19		 3.9
9.5
4.3		 .15
.37
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.78 3.74 – 3.80 .1486 .1472 – .1496 124701
124824
124915		 UM5W-377
UM5T-377
UM5V-377		 3.8
9.4
3.8		 .15
.38
.15		 5.5
5.5
5.5		 .22
.22
.22		 3.9
3.9
4.9		 .15
.15
.19		 3.9
9.5
4.3		 .15
.37
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.8 3.765 – 3.825 .1496 .1482 – .1506 124702
124825
124916		 UM5W-380
UM5T-380
UM5V-380		 3.8
9.4
3.8		 .15
.38
.15		 5.5
5.5
5.5		 .22
.22
.22		 3.9
3.9
4.9		 .15
.15
.19		 3.9
9.5
4.3		 .15
.37
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.83 3.79 – 3.85 .1506 .1492 – .1516 124703
124826
124917		 UM5W-382
UM5T-382
UM5V-382		 3.8
9.4
3.8		 .15
.38
.15		 5.5
5.5
5.5		 .22
.22
.22		 3.9
3.9
4.9		 .15
.15
.19		 3.9
9.5
4.3		 .15
.37
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.85 3.815 – 3.875 .1516 .1502 – .1526 124704
124827
124918		 UM5W-385
UM5T-385
UM5V-385		 3.8
9.5
3.8		 .16
.38
.16		 5.5
5.5
5.5		 .22
.22
.22		 3.9
3.9
4.9		 .15
.15
.19		 3.9
9.5
4.3		 .15
.37
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.88 3.84 – 3.90 .1526 .1512 – .1535 124705
124828
124919		 UM5W-387
UM5T-387
UM5V-387		 3.8
9.5
3.8		 .16
.38
.16		 5.5
5.5
5.5		 .22
.22
.22		 3.9
3.9
4.9		 .15
.15
.19		 3.9
9.5
4.3		 .15
.37
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.9 3.865 – 3.925 .1535 .1522 – .1545 124706
124829
124920		 UM5W-390
UM5T-390
UM5V-390		 3.9
9.8
3.9		 .16
.39
.16		 5.5
5.5
5.5		 .22
.22
.22		 3.9
3.9
4.9		 .15
.15
.19		 3.9
9.8
4.3		 .15
.39
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.93 3.89 – 3.95 .1545 .1531 – .1555 124707
124830
124921		 UM5W-392
UM5T-392
UM5V-392		 3.9
9.8
3.9		 .16
.39
.16		 5.5
5.5
5.5		 .22
.22
.22		 3.9
3.9
4.9		 .15
.15
.19		 3.9
9.8
4.3		 .15
.39
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.95 3.915 – 3.975 .1555 .1541 – .1565 124708
124831
124922		 UM5W-395
UM5T-395
UM5V-395		 3.9
9.8
3.9		 .16
.39
.16		 5.5
5.5
5.5		 .22
.22
.22		 3.9
3.9
4.9		 .15
.15
.19		 3.9
9.8
4.3		 .15
.39
.17		 5.3
5.3
5.3		 .21
.21
.21		 16.2
21.8
16.2		 .64
.86
.64
3.98 3.94 – 4.00 .1565 .1551 – .1575 124923 UM5V-397 3.9 .16 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4 3.965 – 4.025 .1575 .1561 – .1585 124924 UM5V-400 3.9 .16 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.03 3.99 – 4.05 .1585 .1571 – .1594 124925 UM5V-402 3.9 .16 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.05 4.015 – 4.075 .1594 .1581 – .1604 124926 UM5V-405 3.9 .16 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.08 4.04 – 4.10 .1604 .1591 – .1614 124927 UM5V-407 3.9 .16 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.1 4.065 – 4.125 .1614 .1600 – .1624 124928 UM5V-410 3.9 .16 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.13 4.09 – 4.15 .1624 .1610 – .1634 124929 UM5V-412 3.9 .16 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.15 4.115 – 4.175 .1634 .1620 – .1644 124930 UM5V-415 4 .16 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.18 4.14 – 4.20 .1644 .1630 – .1654 124931 UM5V-417 4 .16 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.2 4.165 – 4.225 .1654 .1640 – .1663 124932 UM5V-420 4 .16 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.22 4.19 – 4.25 .1663 .1650 – .1673 124933 UM5V-422 4 .16 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.25 4.215 – 4.275 .1673 .1659 – .1683 124934 UM5V-425 4 .16 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.25 4.215 – 4.275 .1673 .1659 – .1683 124934 UM5V-425 4 .16 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.28 4.24 – 4.30 .1683 .1669 – .1693 124935 UM5V-427 4 .16 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.3 4.265 – 4.325 .1693 .1679 – .1703 124936 UM5V-430 4.1 .16 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.33 4.29 – 4.35 .1703 .1689 – .1713 124937 UM5V-432 4.1 .16 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.35 4.315 – 4.375 .1713 .1699 – .1722 124938 UM5V-435 4.1 .17 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.38 4.34 – 4.40 .1722 .1709 – .1732 124939 UM5V-437 4.1 .17 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.4 4.365 – 4.425 .1732 .1719 – .1742 124940 UM5V-440 4.1 .17 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.43 4.39 – 4.45 .1742 .1728 – .1752 124941 UM5V-442 4.1 .17 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.45 4.415 – 4.475 .1752 .1738 – .1762 124942 UM5V-445 4.1 .17 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.47 4.44 – 4.50 .1762 .1748 – .1772 124943 UM5V-447 4.1 .17 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.5 4.465 – 4.525 .1772 .1758 – .1781 124944 UM5V-450 4.1 .17 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.53 4.49 – 4.55 .1781 .1768 – .1791 124945 UM5V-452 4.2 .17 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.55 4.515 – 4.575 .1791 .1778 – .1801 124946 UM5V-455 4.2 .17 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.58 4.54 – 4.60 .1801 .1787 – .1811 124947 UM5V-457 4.2 .17 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.6 4.565 – 4.625 .1811 .1797 – .1821 124948 UM5V-460 4.2 .17 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.63 4.59 – 4.65 .1821 .1807 – .1831 124949 UM5V-462 4.2 .17 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.65 4.615 – 4.675 .1831 .1817 – .1841 124950 UM5V-465 4.2 .17 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.68 4.64 – 4.70 .1841 .1827 – .1850 124951 UM5V-467 4.2 .17 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.7 4.665 – 4.725 .1850 .1837 – .1860 124952 UM5V-470 4.2 .17 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.72 4.69 – 4.75 .1860 .1846 – .1870 124953 UM5V-472 4.2 .17 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.75 4.715 – 4.775 .1870 .1856 – .1880 124954 UM5V-475 4.3 .17 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.78 4.74 – 4.80 .1880 .1866 – .1890 124955 UM5V-477 4.3 .17 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.8 4.765 – 4.825 .1890 .1876 – .1900 124956 UM5V-480 4.3 .17 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.83 4.79 – 4.85 .1900 .1886 – .1909 124957 UM5V-482 4.3 .17 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.85 4.815 – 4.875 .1909 .1896 – .1919 124958 UM5V-485 4.3 .17 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.88 4.84 – 4.90 .1919 .1906 – .1929 124959 UM5V-487 4.3 .17 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.9 4.865 – 4.925 .1929 .1915 – .1939 124960 UM5V-490 4.4 .18 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.93 4.89 – 4.95 .1939 .1925 – .1949 124961 UM5V-492 4.4 .18 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64
4.95 4.915 – 4.975 .1949 .1935 – .1959 124962 UM5V-495 4.4 .18 5.5 .22 4.9 .19 4.3 .17 5.3 .21 16.2 .64

MASA TOOL MICROCONIC OVERGRIP COLLET UM5 VERSIONS

OVERGRIP COLLET UM5 W-TYPE

  • Available from Ø0.2 – 3.95 mm
  • Compatible with all M5 cartridges

Click on the product image to get 360° view

OVERGRIP COLLET UM5 T-TYPE

  • Available from Ø0.9 – 3.95 mm
  • Compatible with all M5 cartridges

Click on the product image to get 360° view

OVERGRIP COLLET UM5 V-TYPE

  • Available from Ø1.7 – 4.95 mm
  • Compatible with M5 cartridges

Click on the product image to get 360° view
