PROGRAMMABLE GUIDE BUSHES

Schlenker programmable guide bushes are designed and manufactured to offer maximum precision and reliability.
By using them, you improve the processing quality and precision of your machines considerably.

USE OF PROGRAMMABLE GUIDE BUSHES

Programmable guide bushes are specially designed for INDEX/TRAUB machines. The bar or guide diameter of the guide bushing is set via the control of the lathe. Axfix guide bushes are standardly delivered in ultra precision (UP), vulcanized and equipped with a bush.

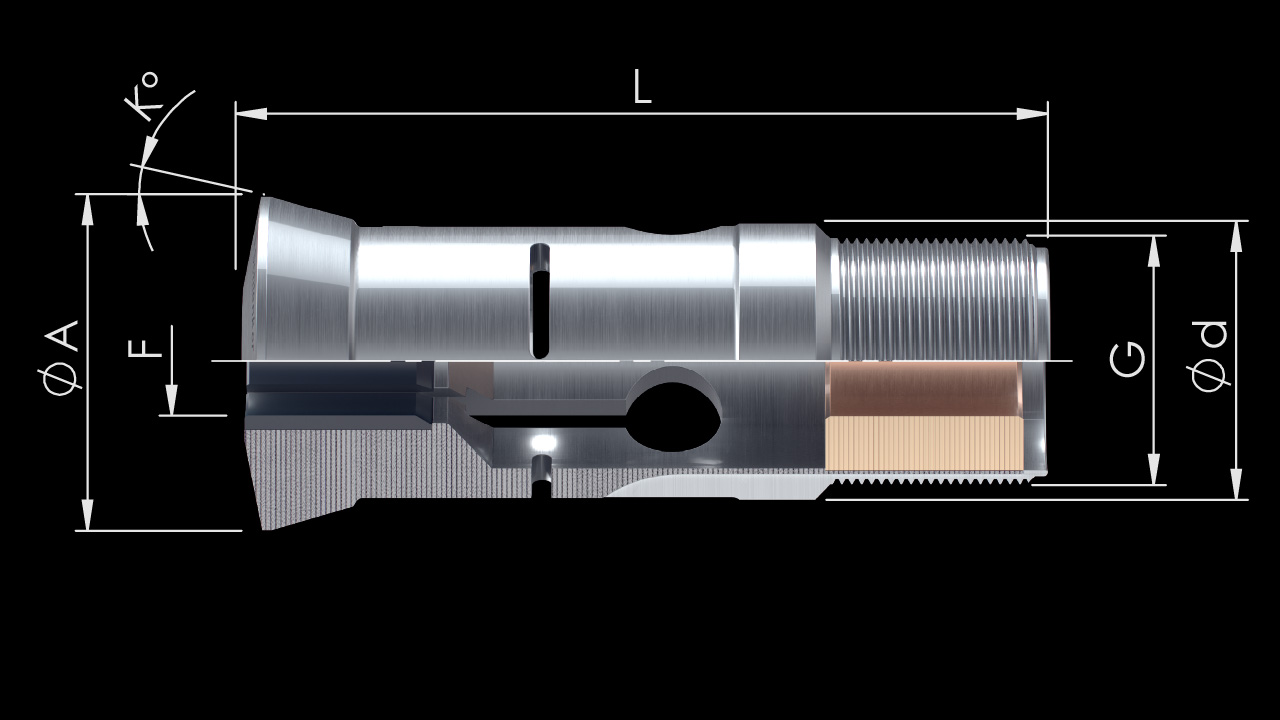

d Shaft OD
A Head OD
L Total length
K Taper angle
G Thread
F Shape
Article ø d
[mm]
ø A
[mm]
L
[mm]
K
[degree]
G F
min. – max. [mm]
Traub
Dwg. no.
FTS221 21 24 65,5 12 M18x1 1,5 – 13,0 989468
FTS3402 27 30 67,5 12 M24x1 3,0 – 16,0 989517
T223AXFIX 28 34 81 16 M25x1 3,0 – 21,0 902860
T227 34 41 87,5 10 M34x1 3,0 – 15,0 986761
T229AXFIX 42 49 81,2 16 M40x1 4,0 – 32,0 907820

PROGRAMMABLE GUIDE BUSH OPTIONS

We offer a wide range of options for our programmable guide bushes. Whether you want to simplify your work, improve your production quality or satisfy a customer specific production requirement. Test our programmable guide bushes now, you will be convinced.

PROGRAMMABLE GUIDE BUSHES STANDARD VERSION

STANDARD VERSION

  • UP-Version
  • Chamfered
  • Sealed
  • With bush

Click on the product image to get 360° view

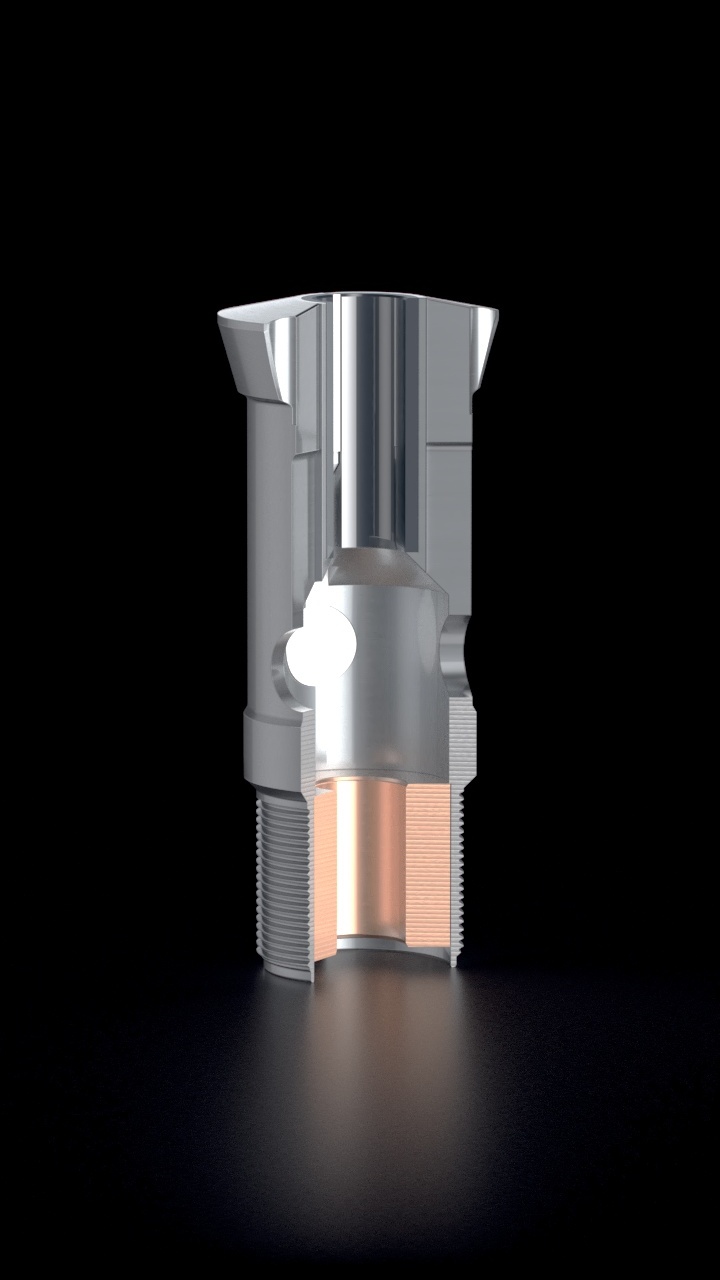

PROGRAMMABLE GUIDE BUSHES GUIDE SURFACE DESIGNS

EXTENDED CARBIDE INSERT

  • Suitable for extra long guidance
  • Guidance possible over the whole length of the guide bush

Click on the product image to get 360° view

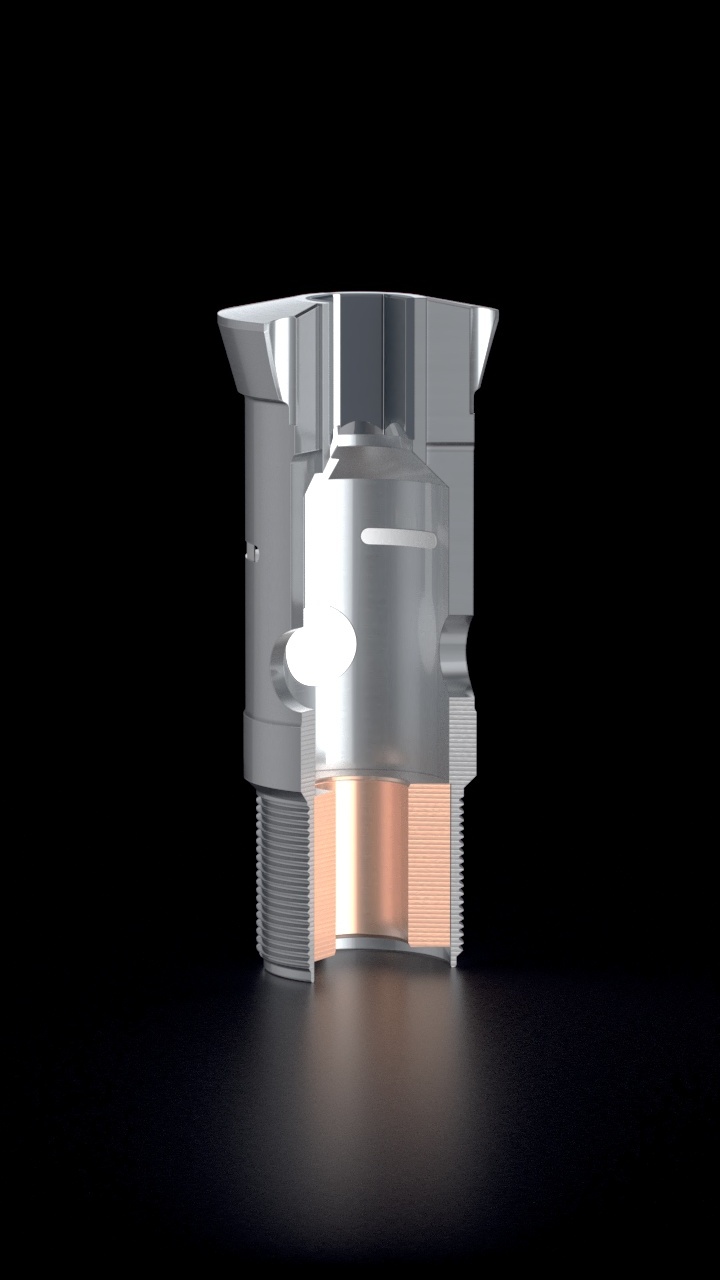

PROGRAMMABLE GUIDE BUSHES SHAPES

SQUARE

  • Suitable for square material

Click on the product image to get 360° view

HEXAGON

  • Suitable for hexagon material

Click on the product image to get 360° view

SPECIAL PROFILES

  • Various profiles possible
  • Profiles can be adapted individually to the workpiece

Click on the product image to get 360° view

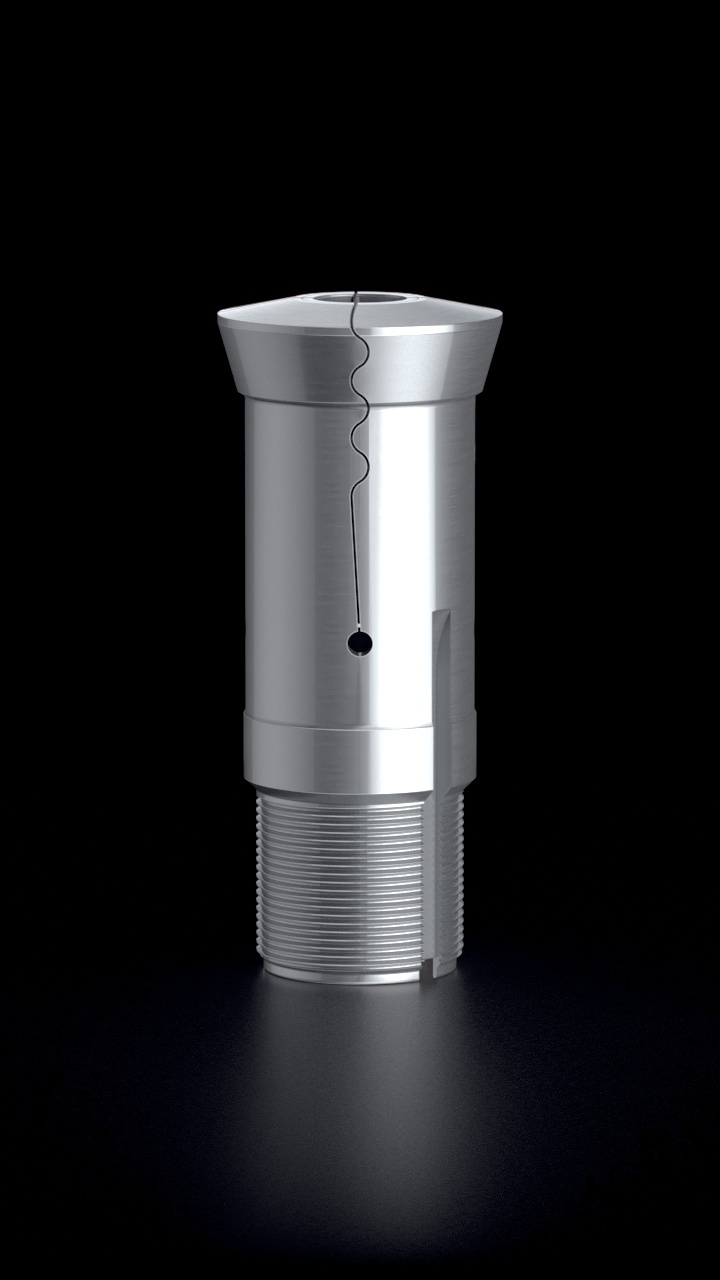

PROGRAMMABLE GUIDE BUSHES SLOT DESIGNS

S-SLOT

  • Ideal for high-pressure flushing systems in the machine
  • Prevents machining chips getting in the guide bush
  • Improved runout properties compared to standard guide bushes
  • Alternatively usable for profile material

Click on the product image to get 360° view

W-SLOT

  • Ideal for high-pressure flushing systems in the machine
  • Prevents machining chips getting in the guide bush
  • Improved runout properties compared to standard guide bushes
  • Alternatively usable for profile material

Click on the product image to get 360° view

Z-SLOT

  • Ideal for high-pressure flushing systems in the machine
  • Prevents machining chips getting in the guide bush
  • Improved runout properties compared to standard guide bushes
  • Alternatively usable for profile material

Click on the product image to get 360° view

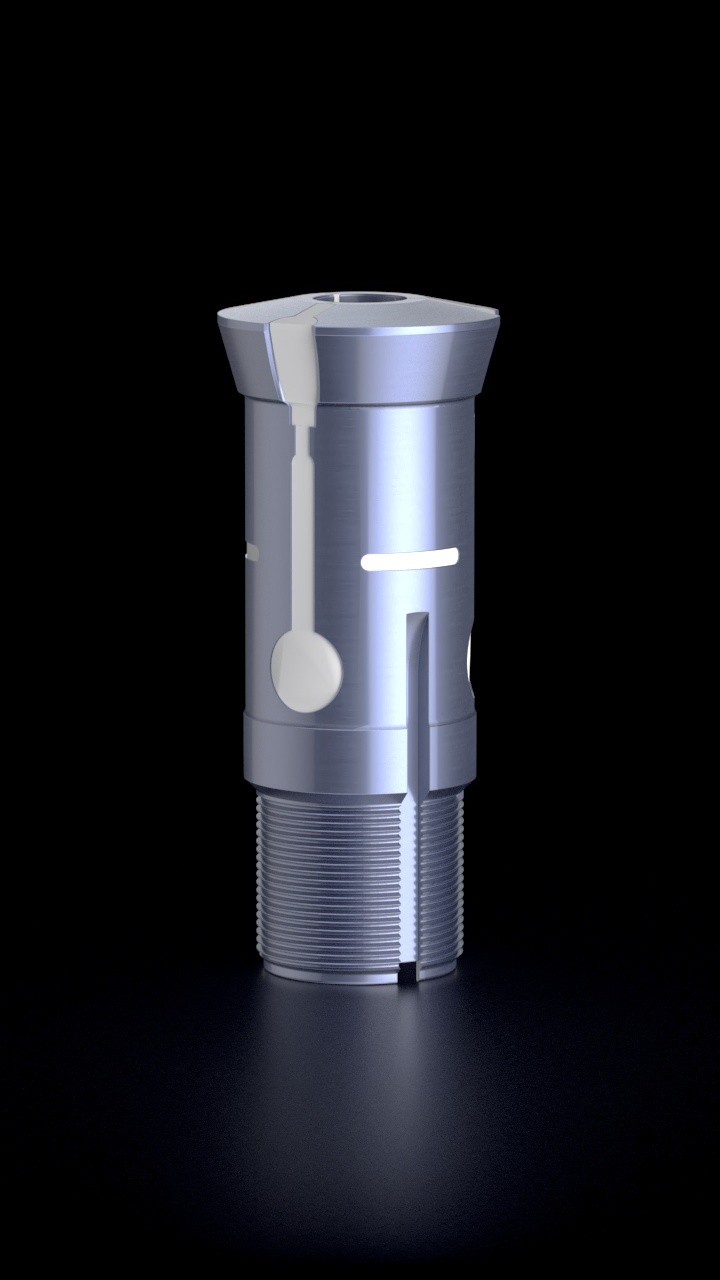

PROGRAMMABLE GUIDE BUSHES WEAR REDUCTION

BL COATING

  • Especially suitable for material with poor gliding properties e.g. titanium
  • Prevents welding of the material in the guide bush

Click on the product image to get 360° view

PREMIUM BLUE COATING

  • High wear resistance
  • Can also be used for special shapes

Click on the product image to get 360° view

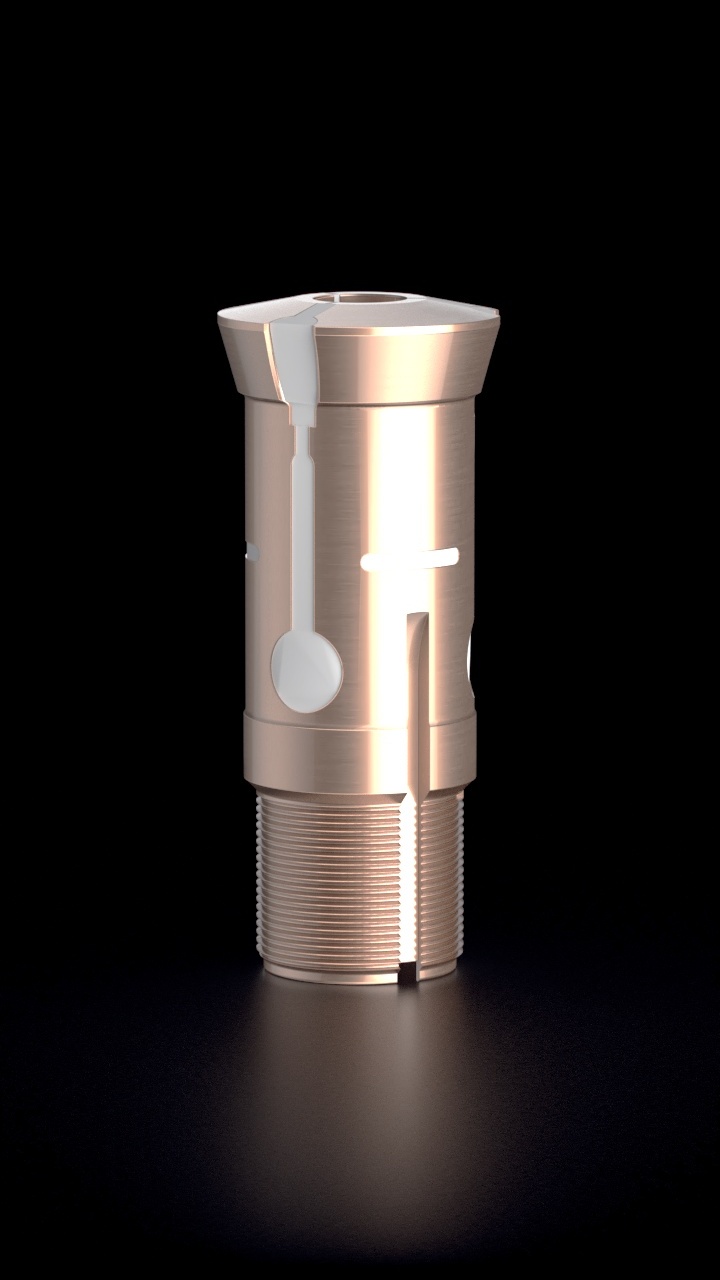

PROGRAMMABLE GUIDE BUSHES VERSIONS

LONG NOSE

  • Needed for special requirements where the tool has a longer distance to the guide bush carrier

Click on the product image to get 360° view

PERMAGLIS DESIGN

  • Special material with very good gliding properties
  • Prevents welding of the material in the guide bush
  • Especially suitable for medical steels like titanium and stainless steel
  • Alternative to SB design
  • Guide bush is made out of one material, so it can be reground several times after wear up to the maximum material clearance diameter

Click on the product image to get 360° view

SB DESIGN

  • Special material with very good gliding properties
  • Prevents welding of the material in the guide bush
  • Ideal for material with scratch-sensitive surface
  • Especially suitable for material with poor gliding properties e.g. titanium
  • Guide bush is made out of one material, so it can be reground several times after wear up to the maximum material clearance diameter

Click on the product image to get 360° view

STEEL DESIGN

  • Mainly used for self-lubricating material e.g. brass
  • Processing of complex profiles possible

Click on the product image to get 360° view

UUP VERSION

  • Highest precision

Click on the product image to get 360° view
