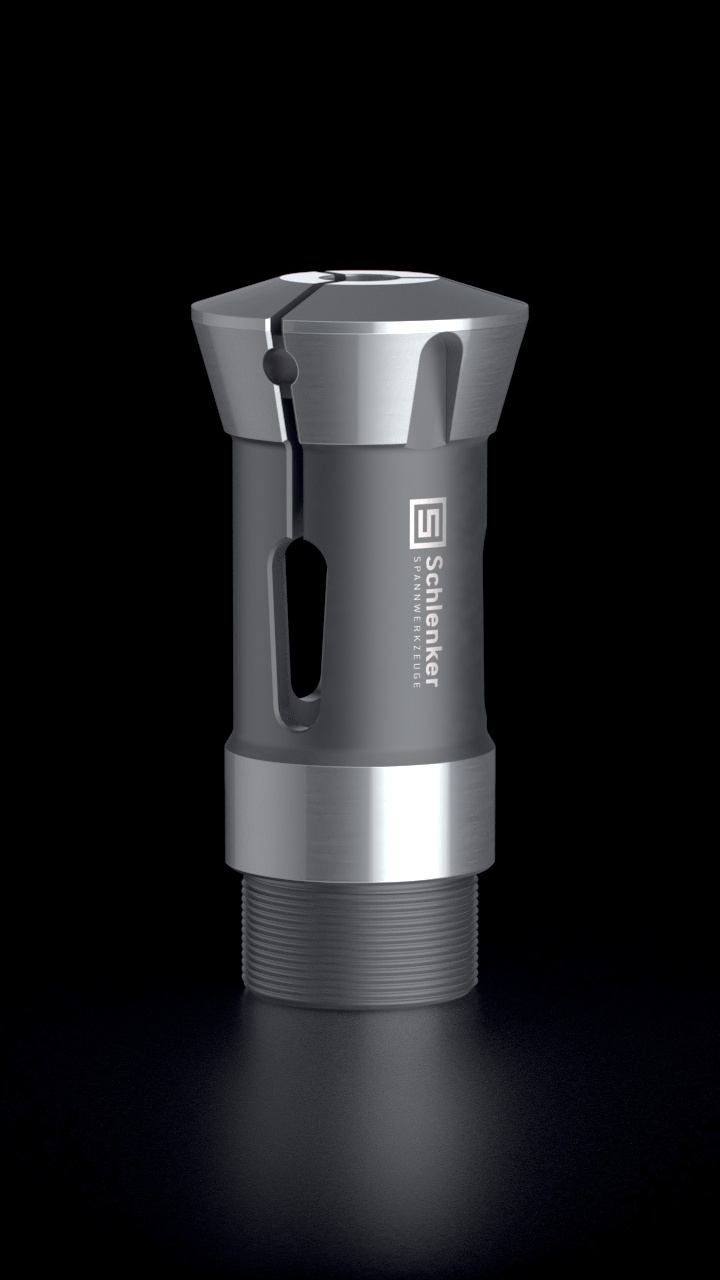

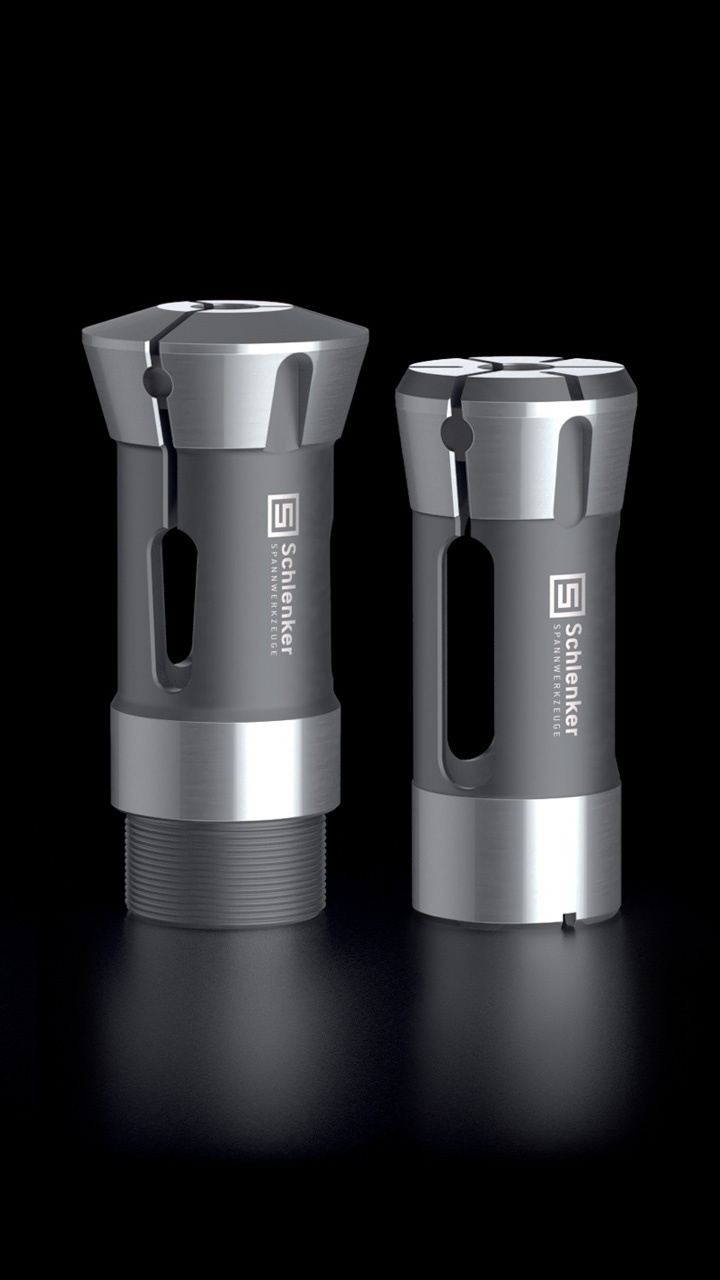

MAIN SPINDLE MULTI-SPINDLE COLLETS

Schlenker main spindle multi-spindle collets are designed and manufactured to offer maximum precision and reliability.
By using them, you improve the processing quality and precision of your machines considerably.

USE OF MAIN SPINDLE MULTI-SPINDLE COLLETS

Multi-Spindle collets are used for workpiece clamping as well as in all common multi-spindle machines.

d Shaft-Ø
A Head-Ø
L Total length
K Taper angle
G Thread
F Shape
Main Spindle Multi-spindle Collets E9012 - © Schlenker Spannwerkzeuge

Article ø d
[mm]		 ø A
[mm]		 L
[mm]		 K
[degree]		 G F
max. [mm]
E9001 25 35 75 15 M22x1 19,5 14,0 17,0
E9007 32 41,5 84 15 M28x1L 23,5 16,5 20,5
E9012 34 42 90 16 M30x1L 25,0 17,5 21,5
E9017 38 45,5 90 16 M34,5×0,75L 30,5 21,5 26,5
E9021 25 35 94 16 M25x1 20,5 14,5 18,0
E9034 41,3 54,6 131,8 15 M1,484″x1/24″L 32,0 23,0 28,0
E9039 46 60,3 120 15 M40x1,5L 33,5 24,0 29,0
E9049 46 60,3 120 15 M40x1,5L 33,5 24,0 29,0
E9070 53 69,3 136 15 M47x1,5L 32,0 23,0 28,0
E9112 62,9 78,3 157 15 M56x1,5L 40,0 28,0 35,0

MAIN SPINDLE MULTI-SPINDLE COLLET OPTIONS

We offer a wide range of options for our main spindle multi-spindle collets. Whether you want to simplify your work, improve your production quality or satisfy a customer specific production requirement. Test our multi-spindle collets now, you will be convinced.

MAIN SPINDLE MULTI-SPINDLE COLLETS CLAMPING SURFACE DESIGNS

Hauptspindel Mehrspindlerspannzangen HM-Einsatz E9012 - © Schlenker Spannwerkzeuge

SMOOTH

  • Mainly used on the main spindle
Hauptspindel Mehrspindlerspannzangen HM-Einsatz E9012 - © Schlenker Spannwerkzeuge

Click on details to compare this product with the standard version

GROOVED – STANDARD

  • Standard multi-spindle collet for the main spindle
Hauptspindel Mehrspindlerspannzangen Gerillt E9012 - © Schlenker Spannwerkzeuge

Click on details to view this product in more detail

Hauptspindel Mehrspindlerspannzangen Gerillt E9012 - © Schlenker Spannwerkzeuge
Hauptspindel Mehrspindlerspannzangen Supergrip E9012- © Schlenker Spannwerkzeuge

AXIAL & RADIAL GROOVES

  • Higher clamping force compared to the grooved standard collet due to the additional axial grooves
Hauptspindel Mehrspindlerspannzangen Supergrip E9012- © Schlenker Spannwerkzeuge

Click on details to compare this product with the standard version

SUPERGRIP

  • Highest clamping force at the same clamping pressure of the machine due to very closely spaced axial grooves
Hauptspindel Mehrspindlerspannzangen Supergrip E9012 - © Schlenker Spannwerkzeuge

Click on details to view this product in more detail

Hauptspindel Mehrspindlerspannzangen Supergrip E9012 - © Schlenker Spannwerkzeuge
Hauptspindel Mehrspindlerspannzangen Längs- und Querrillen E9012- © Schlenker Spannwerkzeuge

CARBIDE COATING

  • Carbide coating possible for all shapes
  • Roughened surface
  • Higher clamping force
  • Repeated / afterward coating possible
Hauptspindel Mehrspindlerspannzangen Supergrip E9012- © Schlenker Spannwerkzeuge

Click on details to compare this product with the standard version

MAIN SPINDLE MULTI-SPINDLE COLLETS SHAPES

Hauptspindel Mehrspindlerspannzangen Sechskant E9012 - © Schlenker Spannwerkzeuge

SQUARE

  • Suitable for clamping square material
Hauptspindel Mehrspindlerspannzangen Sechskant E9012 - © Schlenker Spannwerkzeuge

Click on details to compare this product with the standard version

HEXAGON

  • Suitable for clamping hexagon material
Hauptspindel Mehrspindlerspannzangen Sechskant E9012 - © Schlenker Spannwerkzeuge

Click on details to compare this product with the standard version

Hauptspindel Mehrspindlerspannzangen Sechskant E9012 - © Schlenker Spannwerkzeuge

MAIN SPINDLE MULTI-SPINDLE COLLETS SLOT DESIGNS

Hauptspindel Mehrspindlerspannzangen W-Schlitz E9012- © Schlenker Spannwerkzeuge

S-SLOT

  • High and constant clamping force
  • Clamping with virtually no clamping marks
  • Alternatively usable for profile material (corner clamping)
  • Prevents the entry of machining chips, as the collet closes almost completely
  • Easy to clean after use
Hauptspindel Mehrspindlerspannzangen W-Schlitz E9012- © Schlenker Spannwerkzeuge

Click on details to compare this product with the standard version

L-SLOT

  • High and constant clamping force
  • Clamping with virtually no clamping marks
  • Alternatively usable for profile material (corner clamping)
  • Prevents the entry of machining chips, as the collet closes almost completely
  • Easy to clean after use
  • Ideal for clamping short clamping surfaces
Hauptspindel Mehrspindlerspannzangen L-Schlitz E9012 - © Schlenker Spannwerkzeuge

Click on details to compare this product with the standard version

Hauptspindel Mehrspindlerspannzangen L-Schlitz E9012 - © Schlenker Spannwerkzeuge
Hauptspindel Mehrspindlerspannzangen Z-Schlitz E9012- © Schlenker Spannwerkzeuge

W-SLOT

  • High and constant clamping force
  • Clamping with virtually no clamping marks
  • Alternatively usable for profile material (corner clamping)
  • Prevents the entry of machining chips, as the collet closes almost completely
  • Easy to clean after use
Hauptspindel Mehrspindlerspannzangen Z-Schlitz E9012- © Schlenker Spannwerkzeuge

Click on details to compare this product with the standard version

Z-SLOT

  • High and constant clamping force
  • Clamping with virtually no clamping marks
  • Alternatively usable for profile material (corner clamping)
  • Prevents the entry of machining chips, as the collet closes almost completely
  • Easy to clean after use
Hauptspindel Mehrspindlerspannzangen Z-Schlitz E9012 - © Schlenker Spannwerkzeuge

Click on details to compare this product with the standard version

Hauptspindel Mehrspindlerspannzangen Z-Schlitz E9012 - © Schlenker Spannwerkzeuge
Hauptspindel Mehrspindlerspannzangen Gerillt E9012 - © Schlenker Spannwerkzeuge

THIN SLOTTED

  • Clamping with virtually no clamping marks
  • Prevents the entry of machining chips, as the collet closes almost completely
  • Recommended for small bore sizes
Hauptspindel Mehrspindlerspannzangen Gerillt E9012 - © Schlenker Spannwerkzeuge

Click on details to compare this product with the standard version

MAIN SPINDLE MULTI-SPINDLE COLLETS WEAR REDUCTION

Hauptspindel Mehrspindlerspannzangen HM-Beschichtung E9012- © Schlenker Spannwerkzeuge

CARBIDE INSERT

  • High wear resistance
  • Prevents pressure marks on the workpiece
  • Higher service life
Hauptspindel Mehrspindlerspannzangen HM-Beschichtung E9012- © Schlenker Spannwerkzeuge

Click on details to compare this product with the standard version

MAIN SPINDLE MULTI-SPINDLE COLLETS ADDITIONAL VERSIONS

Hauptspindel Mehrspindlerspannzangen Glatt E9012 - © Schlenker Spannwerkzeuge

UP VERSION

  • High precision
Hauptspindel Mehrspindlerspannzangen Glatt E9012 - © Schlenker Spannwerkzeuge

Click on details to view this product in more detail

UUP VERSION

  • Highest precision
Hauptspindel Mehrspindlerspannzangen Gerillt E9012 - © Schlenker Spannwerkzeuge

Click on details to compare this product with the standard version

Hauptspindel Mehrspindlerspannzangen Gerillt E9012 - © Schlenker Spannwerkzeuge
Hauptspindel Mehrspindlerspannzangen Vulkanisiert E9012- © Schlenker Spannwerkzeuge

SEALED

  • Prevents the entry of machining chips
  • The whole slot area can be sealed
  • Resealing possible
  • Not usable with high pressure flushing in the machine
Hauptspindel Mehrspindlerspannzangen Vulkanisiert E9012- © Schlenker Spannwerkzeuge

Click on details to view this product in more detail

Sub spindle multi-spindle collets ETPU 9012 - © Schlenker Spannwerkzeuge

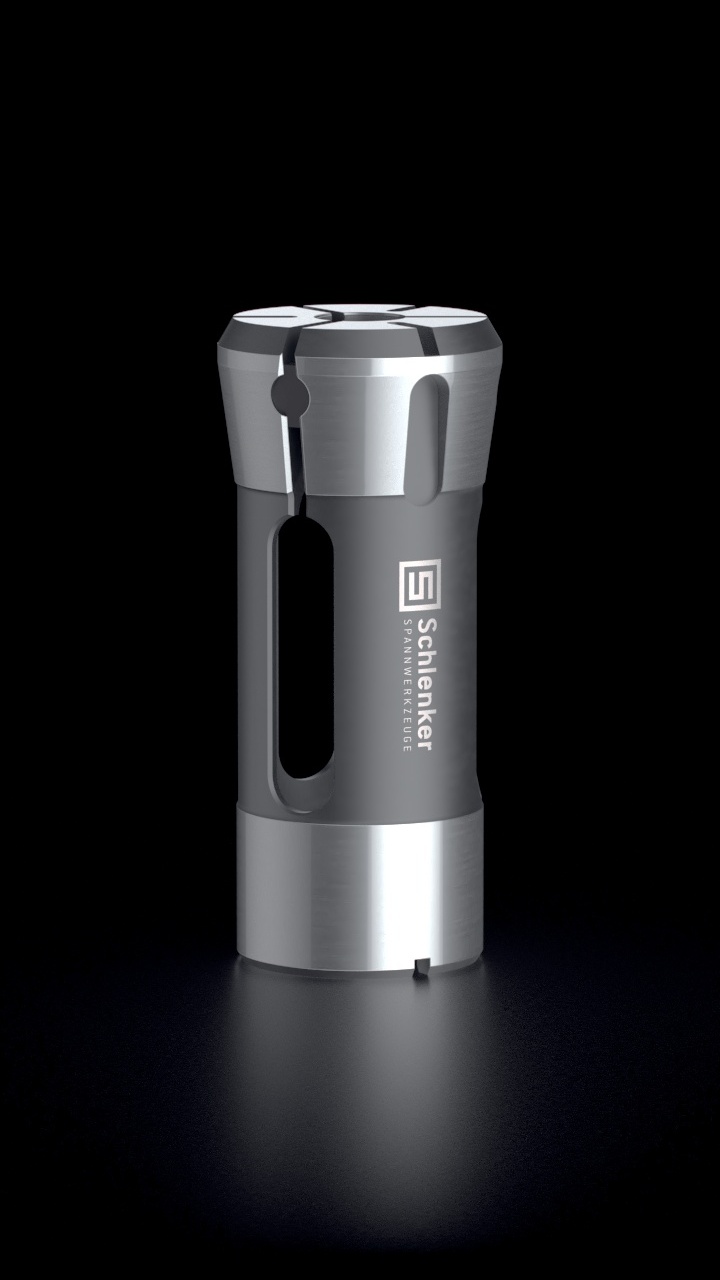

SUB SPINDLE MULTI-SPINDLE COLLETS

Schlenker sub spindle multi-spindle collets are designed and manufactured to offer maximum precision and reliability.
By using them, you improve the processing quality and precision of your machines considerably.

USE OF SUB SPINDLE MULTI-SPINDLE COLLETS

Multi-Spindle collets are used for workpiece clamping as well as in all common multi-spindle machines.

d Shaft-Ø
A Head-Ø
L Total length
K Taper angle
F Shape
Sub spindle Multi-spindle Collets ETPU 9012 ETPU 9039 G90699 H-G - © Schlenker Spannwerkzeuge

Article ø d
[mm]		 ø A
[mm]		 L
[mm]		 K
[degree]		 F
max. [mm]
ETPU9012 28 32 73 8 24 17 21
ETPU9039 35,5 40 80 8 29,5 22 27

SUB SPINDLE MULTI-SPINDLE COLLETS OPTIONS

We offer a wide range of options for our sub spindle multi-spindle collets. Whether you want to simplify your work, improve your production quality or satisfy a customer specific production requirement. Test our sub spindle multi-spindle collets and convince yourself.

SUB SPINDLE MULTI-SPINDLE COLLETS CLAMPING SURFACE DESIGNS

Gegenspindel Mehrspindlerspannzangen Glatt ETPU 9012 ETPU 9039 G90699 H-G - © Schlenker Spannwerkzeuge

SMOOTH – STANDARD

  • Standard multi-spindle collet for the sub spindle
Gegenspindel Mehrspindlerspannzangen Glatt ETPU 9012 ETPU 9039 G90699 H-G - © Schlenker Spannwerkzeuge

Click on details to compare this product with the standard version

GROOVED

  • Mainly used on the sub spindle
  • With additional grooves
Gegenspindel Mehrspindlerspannzangen Glatt ETPU 9012 ETPU 9039 G90699 H-G - © Schlenker Spannwerkzeuge

Click on details to view this product in more detail

Gegenspindel Mehrspindlerspannzangen Glatt ETPU 9012 ETPU 9039 G90699 H-G - © Schlenker Spannwerkzeuge
Gegenspindel Mehrspindlerspannzangen Längs- und Querrillen ETPU 9012 ETPU 9039 G90699 H-G - © Schlenker Spannwerkzeuge

AXIAL & RADIAL GROOVES

  • Higher clamping force compared to the grooved standard collet due to the additional axial grooves
Gegenspindel Mehrspindlerspannzangen Längs- und Querrillen ETPU 9012 ETPU 9039 G90699 H-G - © Schlenker Spannwerkzeuge

Click on details to compare this product with the standard version

SUPERGRIP

  • Highest clamping force at the same clamping pressure of the machine due to very closely spaced axial grooves
Gegenspindel Mehrspindlerspannzangen Supergrip ETPU 9012 ETPU 9039 G90699 H-G - © Schlenker Spannwerkzeuge

Click on details to view this product in more detail

Gegenspindel Mehrspindlerspannzangen Supergrip ETPU 9012 ETPU 9039 G90699 H-G - © Schlenker Spannwerkzeuge
Gegenspindel Mehrspindlerspannzangen ETPU 9012 ETPU 9039 G90699 H-G HM-Beschichtung - © Schlenker Spannwerkzeuge

CARBIDE COATING

  • Carbide coating possible for all shapes
  • Roughened surface
  • Higher clamping force
  • Repeated / afterward coating possible
Gegenspindel Mehrspindlerspannzangen ETPU 9012 ETPU 9039 G90699 H-G HM-Beschichtung - © Schlenker Spannwerkzeuge

Click on details to compare this product with the standard version

SUB SPINDLE MULTI-SPINDLE COLLETS SHAPES

Gegenspindel Mehrspindlerspannzangen Sonderprofile ETPU 9012 ETPU 9039 G90699 H-G - © Schlenker Spannwerkzeuge

SPECIAL PROFILES

  • Various profiles can be realized by ram EDM or wire EDM
  • Profiles can be adapted individually to the workpiece
Gegenspindel Mehrspindlerspannzangen Sonderprofile ETPU 9012 ETPU 9039 G90699 H-G - © Schlenker Spannwerkzeuge

Click on details to compare this product with the standard version

SPECIAL CONTOURS

  • Complex contours can be realized by hard milling, hard turning and grinding
  • Already possible with smallest diameters from 0.2 mm
Gegenspindel Mehrspindlerspannzangen Sonderkonturen ETPU 9012 ETPU 9039 G90699 H-G - © Schlenker Spannwerkzeuge

Click on details to compare this product with the standard version

Gegenspindel Mehrspindlerspannzangen Sonderkonturen ETPU 9012 ETPU 9039 G90699 H-G - © Schlenker Spannwerkzeuge

SUB SPINDLE MULTI-SPINDLE COLLETS SLOT DESIGNS

Gegenspindel Mehrspindlerspannzangen S-Schlitz ETPU 9012 ETPU 9039 G90699 H-G - © Schlenker Spannwerkzeuge

S-SLOT

  • High and constant clamping force
  • Clamping with virtually no clamping marks
  • Alternatively usable for profile material (corner clamping)
  • Prevents the entry of machining chips, as the collet closes almost completely
  • Easy to clean after use
Gegenspindel Mehrspindlerspannzangen S-Schlitz ETPU 9012 ETPU 9039 G90699 H-G - © Schlenker Spannwerkzeuge

Click on details to compare this product with the standard version

L-SLOT

  • High and constant clamping force
  • Clamping with virtually no clamping marks
  • Alternatively usable for profile material (corner clamping)
  • Prevents the entry of machining chips, as the collet closes almost completely
  • Easy to clean after use
  • Ideal for clamping short clamping surfaces
Gegenspindel Mehrspindlerspannzangen L-Schlitz ETPU 9012 ETPU 9039 G90699 H-G - © Schlenker Spannwerkzeuge

Click on details to compare this product with the standard version

Gegenspindel Mehrspindlerspannzangen L-Schlitz ETPU 9012 ETPU 9039 G90699 H-G - © Schlenker Spannwerkzeuge
Gegenspindel Mehrspindlerspannzangen W-Schlitz ETPU 9012 ETPU 9039 G90699 H-G - © Schlenker Spannwerkzeuge

W-SLOT

  • High and constant clamping force
  • Clamping with virtually no clamping marks
  • Alternatively usable for profile material (corner clamping)
  • Prevents the entry of machining chips, as the collet closes almost completely
  • Easy to clean after use
Gegenspindel Mehrspindlerspannzangen W-Schlitz ETPU 9012 ETPU 9039 G90699 H-G - © Schlenker Spannwerkzeuge

Click on details to compare this product with the standard version

Z-SLOT

  • High and constant clamping force
  • Clamping with virtually no clamping marks
  • Alternatively usable for profile material (corner clamping)
  • Prevents the entry of machining chips, as the collet closes almost completely
  • Easy to clean after use
Gegenspindel Mehrspindlerspannzangen Z-Schlitz ETPU 9012 ETPU 9039 G90699 H-G - © Schlenker Spannwerkzeuge

Click on details to compare this product with the standard version

Gegenspindel Mehrspindlerspannzangen Z-Schlitz ETPU 9012 ETPU 9039 G90699 H-G - © Schlenker Spannwerkzeuge
Gegenspindel Mehrspindlerspannzangen Dünn geschlitzt ETPU 9012 ETPU 9039 G90699 H-G - © Schlenker Spannwerkzeuge

THIN SLOTTED

  • Clamping with virtually no clamping marks
  • Prevents the entry of machining chips, as the collet closes almost completely
  • Recommended for small bore sizes
Gegenspindel Mehrspindlerspannzangen Dünn geschlitzt ETPU 9012 ETPU 9039 G90699 H-G - © Schlenker Spannwerkzeuge

Click on details to compare this product with the standard version

SUB SPINDLE MULTI-SPINDLE COLLETS WEAR REDUCTION

Gegenspindel Mehrspindlerspannzangen Premium Blue Beschichtung ETPU 9012 ETPU 9039 G90699 H-G - © Schlenker Spannwerkzeuge

PREMIUM BLUE COATING

  • Economical alternative to collets with carbide insert
  • High wear resistance
  • Can also be used for special shapes
  • Are completely coated on the functional surfaces like cone and shaft therefore more durable
Gegenspindel Mehrspindlerspannzangen Premium Blue Beschichtung ETPU 9012 ETPU 9039 G90699 H-G - © Schlenker Spannwerkzeuge

Click on details to compare this product with the standard version

SUB SPINDLE MULTI-SPINDLE COLLETS ADDITIONAL VERSIONS

Gegenspindel Mehrspindlerspannzangen Glatt ETPU 9012 ETPU 9039 G90699 H-G - © Schlenker Spannwerkzeuge

UP VERSION

  • High precision
Gegenspindel Mehrspindlerspannzangen Glatt ETPU 9012 ETPU 9039 G90699 H-G - © Schlenker Spannwerkzeuge

Click on details to view this product in more detail

UUP VERSION

  • Highest precision
Gegenspindel Mehrspindlerspannzangen Glatt ETPU 9012 ETPU 9039 G90699 H-G - © Schlenker Spannwerkzeuge

Click on details to compare this product with the standard version

Gegenspindel Mehrspindlerspannzangen Glatt ETPU 9012 ETPU 9039 G90699 H-G - © Schlenker Spannwerkzeuge
Gegenspindel Mehrspindlerspannzangen ETPU 9012 ETPU 9039 G90699 H-G Vulkanisiert - © Schlenker Spannwerkzeuge

SEALED

  • Prevents the entry of machining chips
  • The whole slot area can be sealed
  • Resealing possible
  • Not usable with high pressure flushing in the machine
Gegenspindel Mehrspindlerspannzangen ETPU 9012 ETPU 9039 G90699 H-G Vulkanisiert - © Schlenker Spannwerkzeuge

Click on details to view this product in more detail
