TURBO CROWN BAR FEED COLLETS

Schlenker TURBO crown bar feed collets are designed and manufactured to offer maximum precision and reliability.
By using them, you improve the processing quality and precision of your machines considerably.

USE OF TURBO CROWN BAR FEED COLLETS

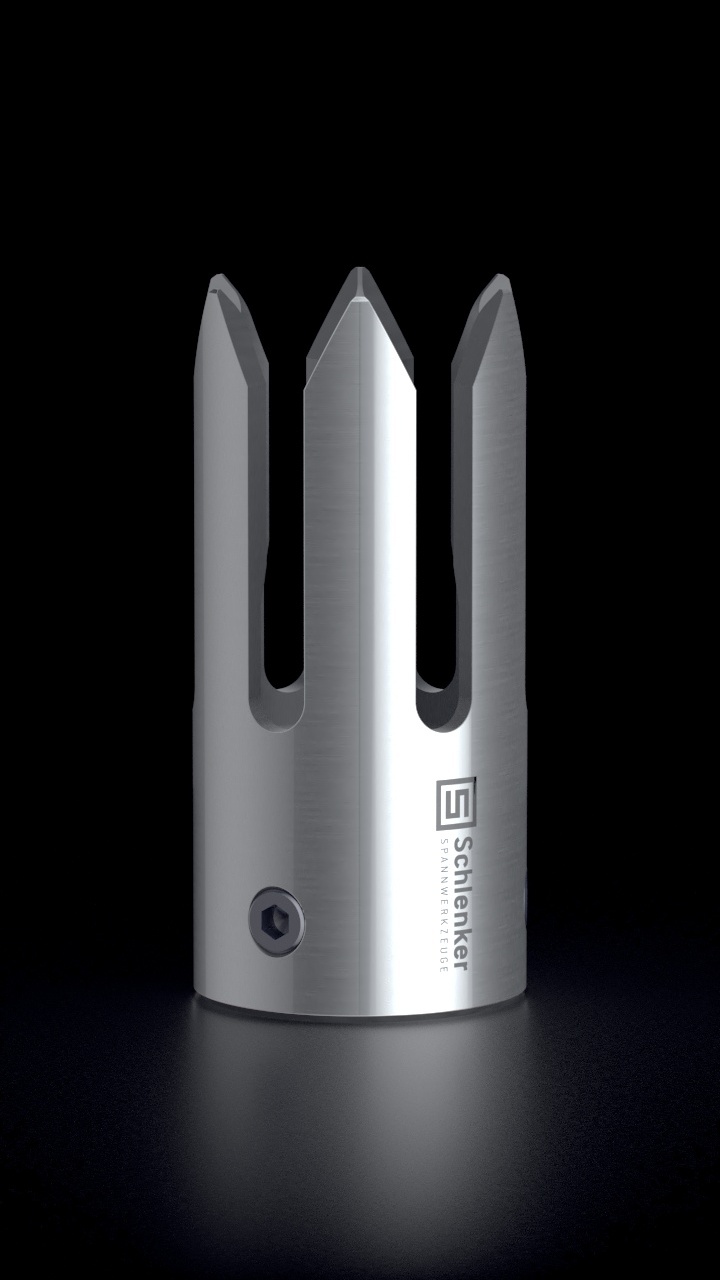

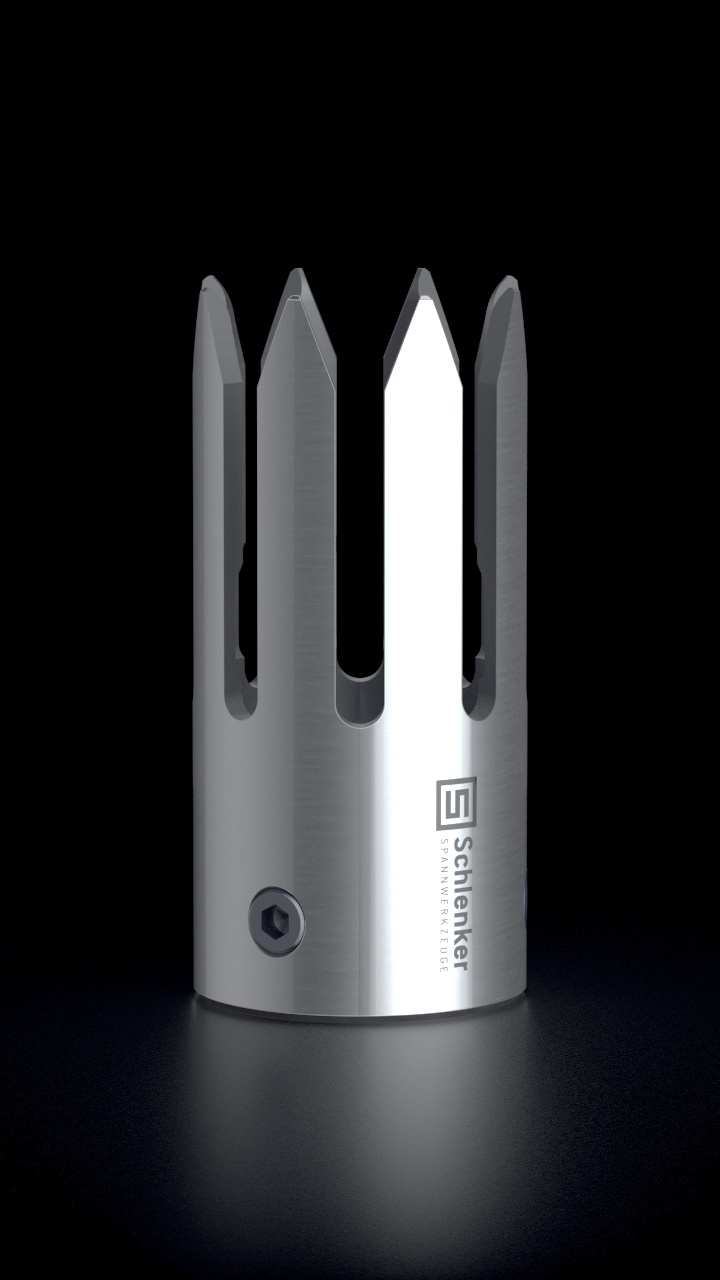

The TURBO crown bar feed collets owe their name to the special shape of the crown and are especially developed for profile material.
This geometry simplifies the threading of the material and allows the full utilization of the channel, thus larger wrench sizes can be clamped.

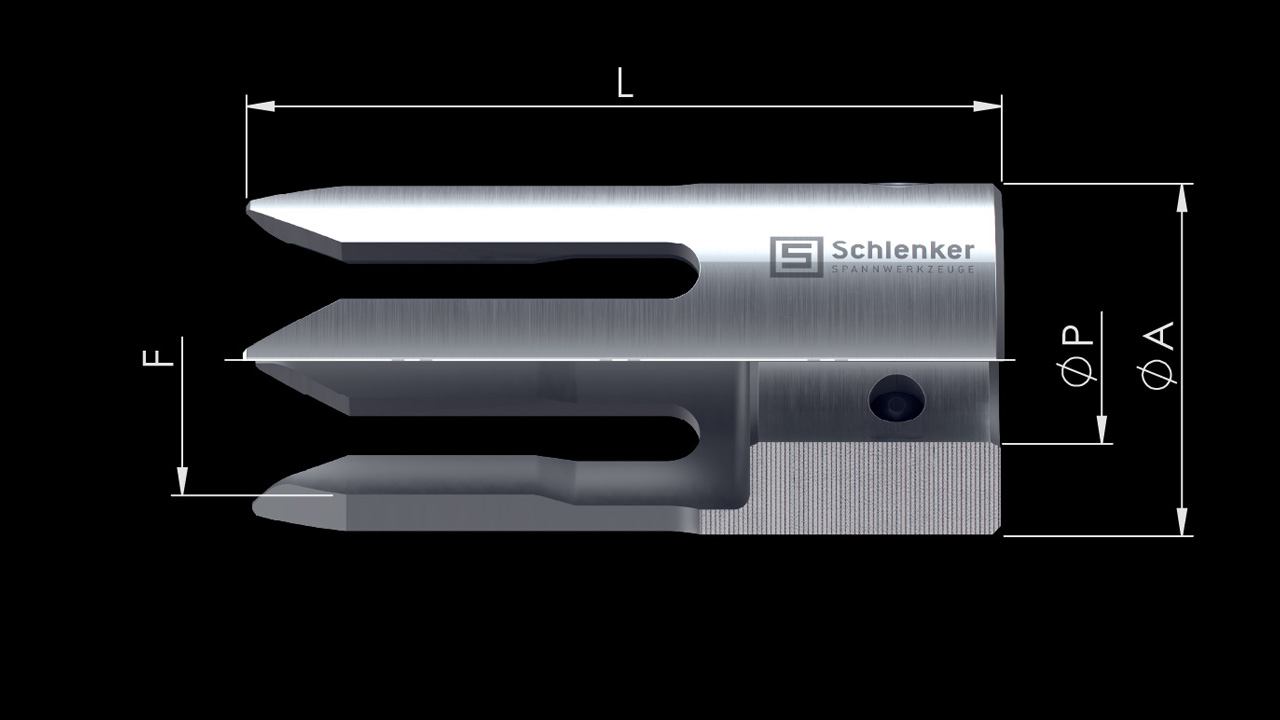

A Outside diameter
P Fit ID
L Total length
F Shape
TURBO Crown Bar Feed Collets ST42K SHT42K - © Schlenker Spannwerkzeuge

Article Pusher
[mm]		 Ø A
[mm]		 Ø P
[mm]		 L
[mm]		 F
min. – max. [mm]
ST25
SHT25		 D25 25 20H7 90 15,0 – 18,0 18,0 – 22,0
ST28
SHT28		 D28 28 20H7 90 15,0 – 20,0 18,0 – 24,0
ST30
SHT30		 D30 30 20H7 90 15,0 – 21,0 18,0 – 26,0
ST32
SHT32		 D32 32 20H7 90 15,0 – 23,0 18,0 – 28,0
ST34
SHT34		 D34 34 20H7 90 PR PR
ST35
SHT35		 D35 35 20H7 90 PR PR
ST36
SHT36		 D36 36 20H7 90 PR 21,0 – 31,0
ST38
SHT38		 D38 38 20H7 90 PR PR
ST40
SHT40		 D40 40 20H7 90 PR PR
ST42
SHT42		 D42 42 20H7 90 22,0 – 30,0 26,0 – 36,0
ST44
SHT44		 D44 44 20H7 90 PR PR
ST45
SHT45		 D45 45 20H7 90 PR PR
ST50
SHT50		 D50 50 20H7 90 28,0 – 35,0 34,0 – 43,0
ST54
SHT54		 D54 54 20H7 90 PR PR
ST58
SHT58		 D58 58 20H7 90 PR PR
ST60
SHT60		 D60 60 20H7 90 34,0 – 42,0 41,0 – 52,0
ST63
SHT63		 D63 63 20H7 90 PR PR
ST65
SHT65		 D65 65 20H7 90 38,0 – 46,0 46,0 – 56,0
ST70
SHT70		 D70 70 20H7 90 PR PR
ST75
SHT75		 D75 75 20H7
35H7		 90 PR PR
ST80
SHT80		 D80 80 35H7 90 PR PR
ST90
SHT90		 D90 90 35H7 90 PR PR
ST100
SHT100		 D100 100 35H7 110 PR PR

TURBO CROWN BAR FEED COLLET OPTIONS

We offer a wide range of options for our TURBO crown bar feed collets. Whether you want to simplify your work, improve your production quality or satisfy a customer specific production requirement. Test our TURBO crown bar feed collets now, you will be convinced.

SQUARE

  • Suitable for square material

Click on the product image to get 360° view

HEXAGON

  • Suitable for hexagon material

Click on the product image to get 360° view

SQUARE TENSION

  • Suitable for square material
  • Tension can be increased or reduced according to requirements

Click on the product image to get 360° view

HEXAGON TENSION

  • Suitable for hexagon material
  • Tension can be increased or reduced according to requirements

Click on the product image to get 360° view
