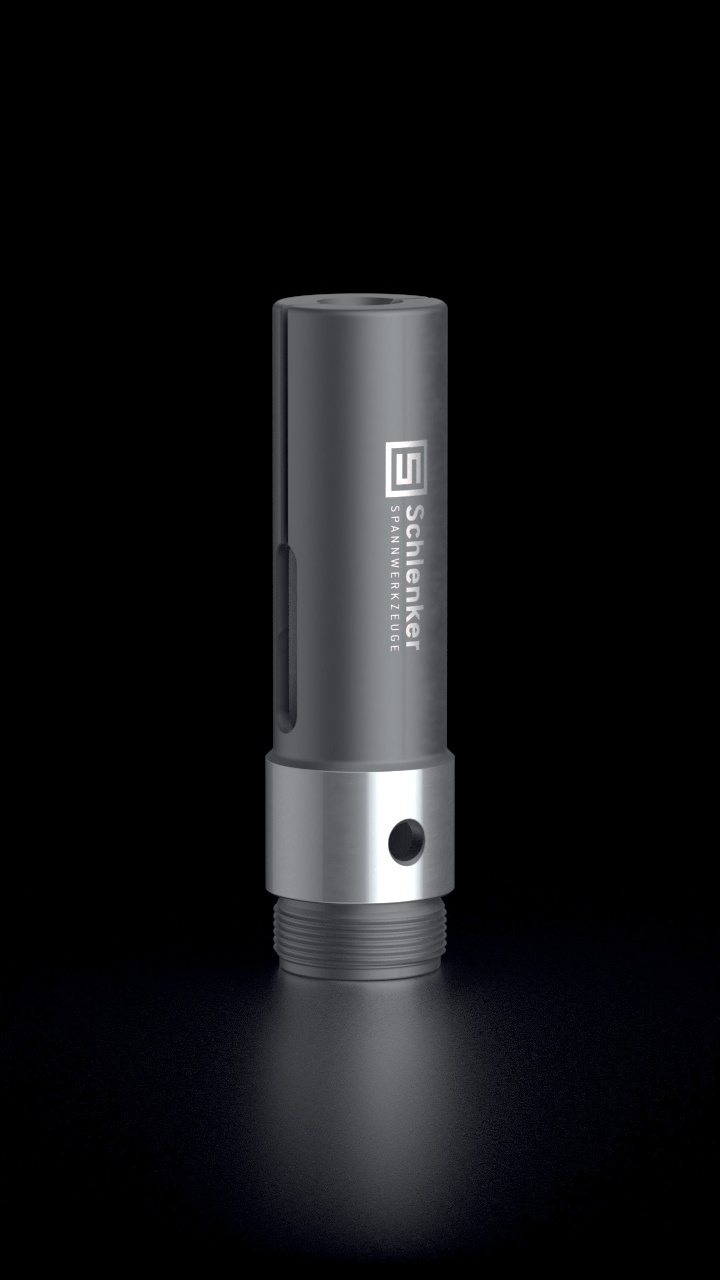

FEEDING COLLETS

Schlenker feeding collets are designed and manufactured to offer maximum precision and reliability.
By using them, you improve the processing quality and precision of your machines considerably.

USE
OPTIONS

USE OF FEEDING COLLETS

The task of the feeding collets are to feed the raw material from the bar loader into the machine. The material to be processed is guided and clamped by the feeding collets.

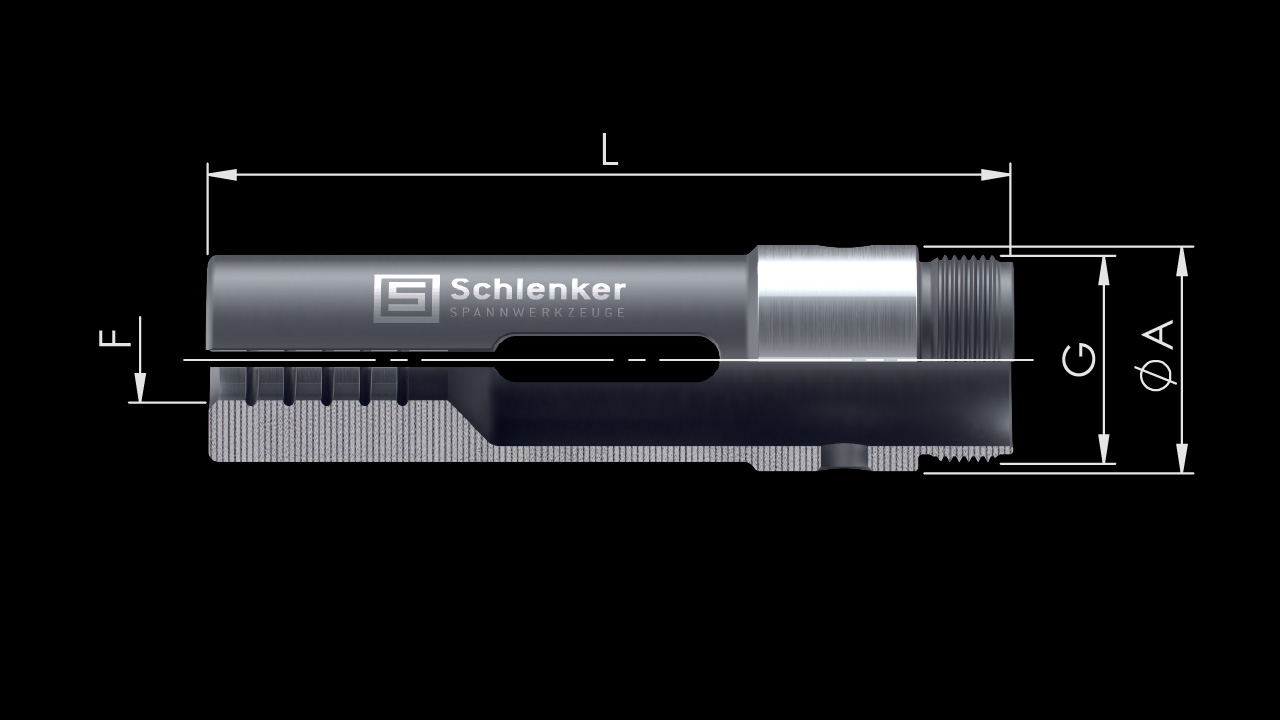

A Outside diameter
L Total length
G Thread
F Shape
Article ø D
[mm]
L
[mm]
G F
max. [mm]
E207 18 70 M16x1L 12,0 9,0 11,0
E217 21 70 M20x1L 16,0 11,0 14,0
E220 24 85 M22x1L 18,0 13,0 16,0
E236 30 95 M28x1L 24,0 16,0 21,0
E237 31 90 M29x1L 25,0 18,0 22,0
E254 42 116 M40x1L 36,0 25,0 31,0
E273 60 140 M58x1L 52,0 36,0 45,0

FEEDING COLLETS OPTIONS

We offer a wide range of options for our feeding collets. Whether you want to simplify your work, improve your production quality or satisfy a customer specific production requirement. Test our feeding collets now, you will be convinced.

Overview

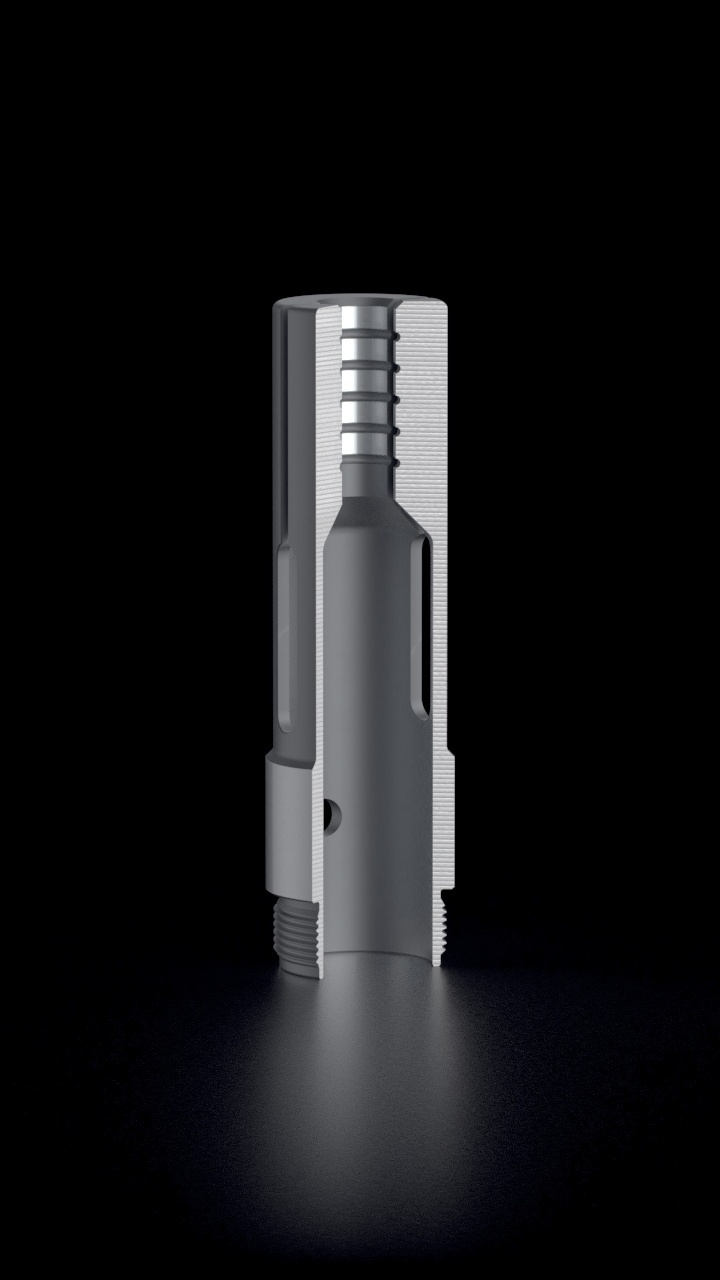

GROOVED

  • Suitable for round material

Click on the product image to get 360° view

SMOOTH

  • Suitable for round material

Click on the product image to get 360° view

SQUARE

  • Suitable for square material

Click on the product image to get 360° view

HEXAGON

  • Suitable for hexagon material

Click on the product image to get 360° view

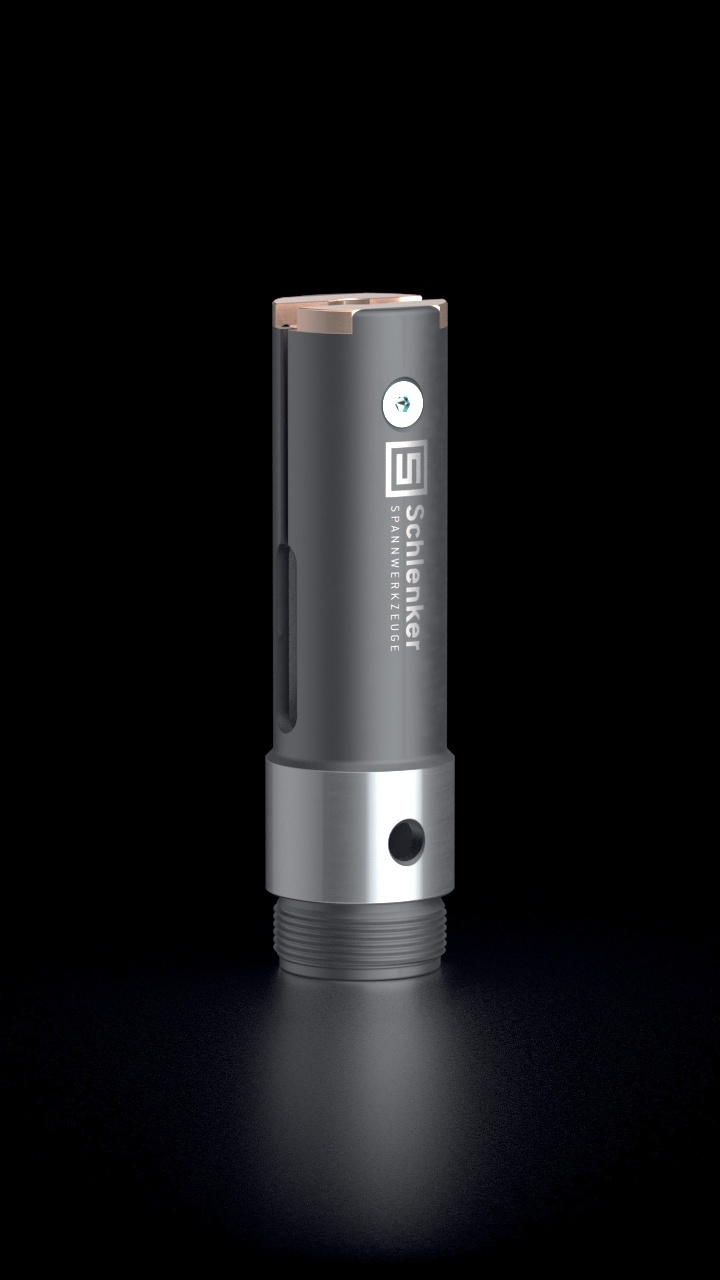

PEEK / PLASTIC INSERTS

  • Prevents marks on the bar material
  • Inserts are replaceable when worn
  • Ideal for processing scratch-sensitive materials

Click on the product image to get 360° view

ALUMINIUM INSERTS

  • Prevents marks on the bar material
  • Inserts are replaceable when worn
  • Ideal for processing scratch-sensitive materials

Click on the product image to get 360° view

BRASS INSERTS

  • Prevents marks on the bar material
  • Inserts are replaceable when worn
  • Ideal for processing scratch-sensitive materials

Click on the product image to get 360° view

BRONZE INSERTS

  • Prevents marks on the bar material
  • Inserts are replaceable when worn
  • Ideal for processing scratch-sensitive materials

Click on the product image to get 360° view

PERMAGLIS INSERTS

  • Prevents marks on the bar material
  • Inserts are replaceable when worn
  • Ideal for processing scratch-sensitive materials

Click on the product image to get 360° view

TENSION

  • Tension can be increased or reduced according to requirements

Click on the product image to get 360° view
